Home
>>
Mercury
>>
1997
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Electrical Diagrams
>>

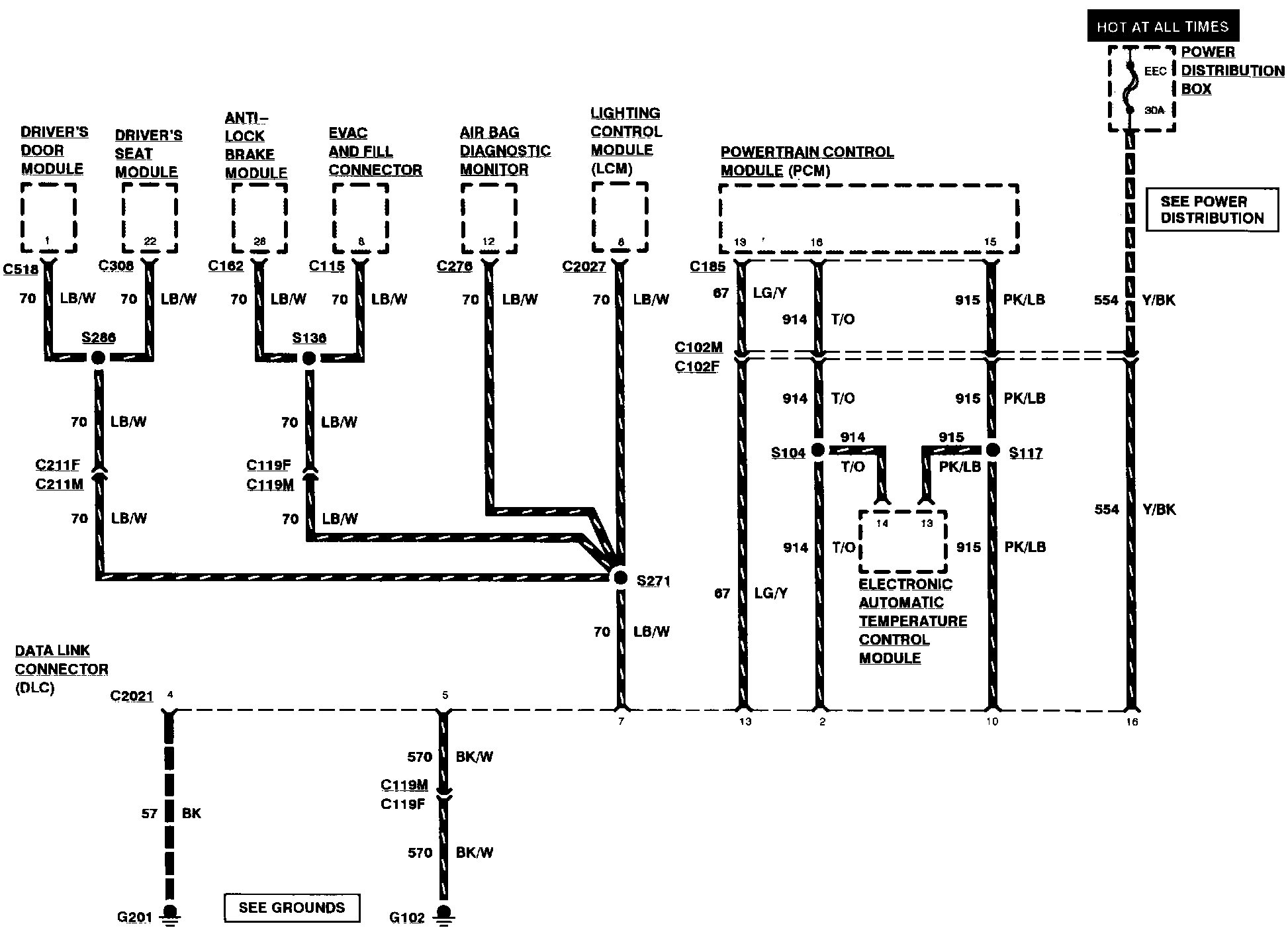

Multiplex Communication Network
Multiplex Communication Network
Multiplex Communication Network:
