License Plate Lamp: Service and Repair

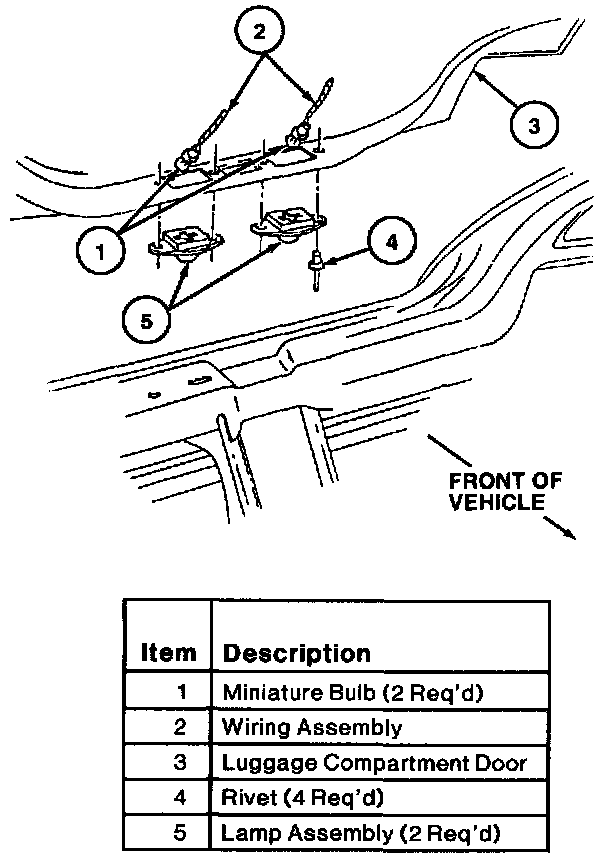

REMOVAL
1. Open luggage compartment door.
2. Using a Phillips-head screwdriver, remove two plastic rivets retaining lamp to luggage compartment door.
3. With a flat-blade screwdriver, remove rivet retainer and pull lamp from luggage compartment door.
4. Grasp and twist socket one-eighth turn counter-clockwise and remove socket from lamp.

INSTALLATION
1. Follow removal procedure in reverse order.
