Service Port HVAC: Testing and Inspection

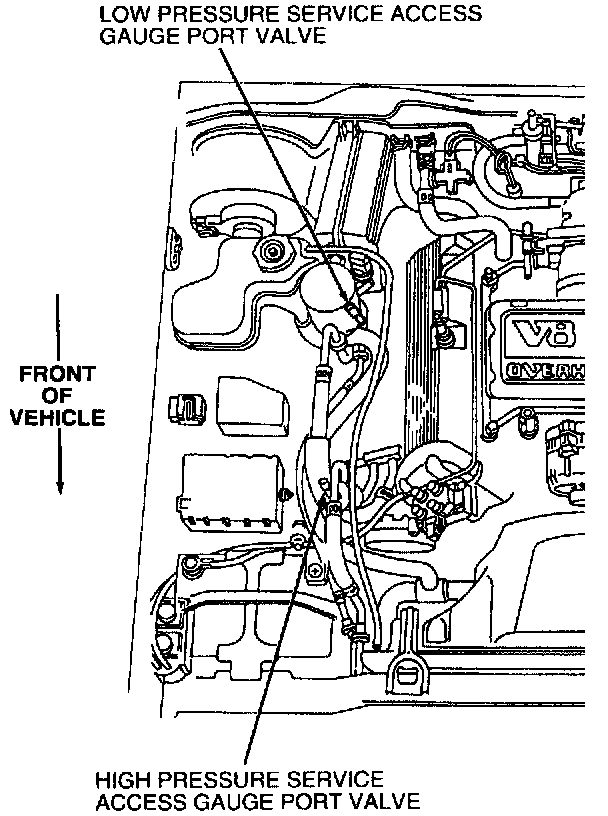

The low-pressure service access gauge port valve is located on the side of the suction accumulator/drier.

The high-pressure service access gauge port valve is located on the A/C compressor to condenser discharge line.
