Blower Motor Resistor: Service and Repair

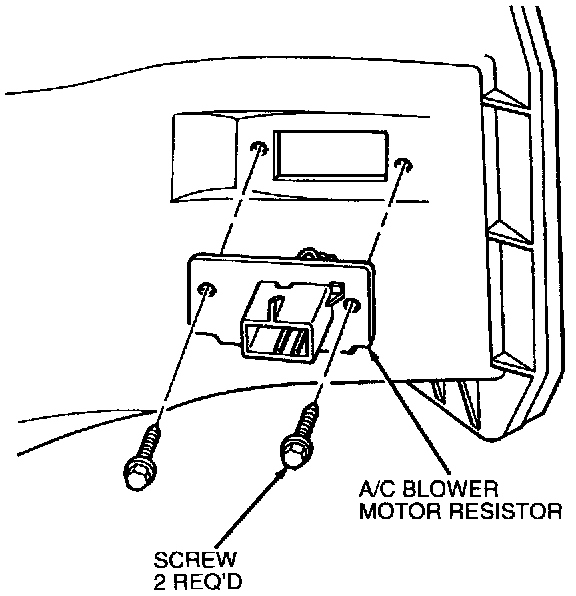

BLOWER MOTOR SWITCH RESISTORREMOVAL
1. Disconnect the wire harness snap lock connector from the heater blower motor switch resistor.
2. Remove the two resistor assembly retaining screws securing the heater blower motor switch resistor to the A/C evaporator core housing assembly.
3. Remove the heater blower motor switch resistor.
INSTALLATION
1. Follow removal procedure in reverse order.
