Mercury
>>
1997
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Communication Network Layout
>>

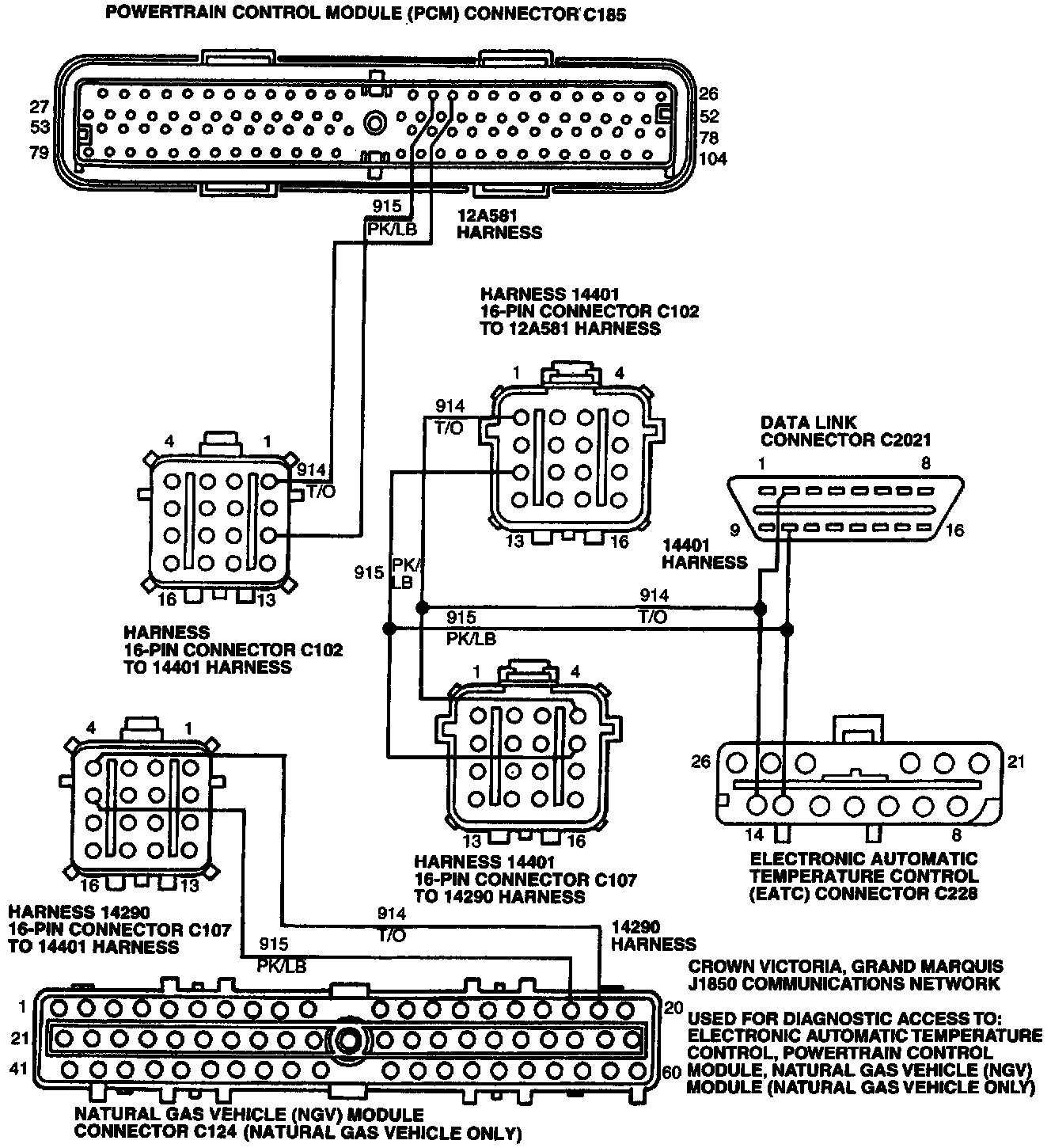

J1850 Communication Network
J1850 Communication Network
