Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C307
C307

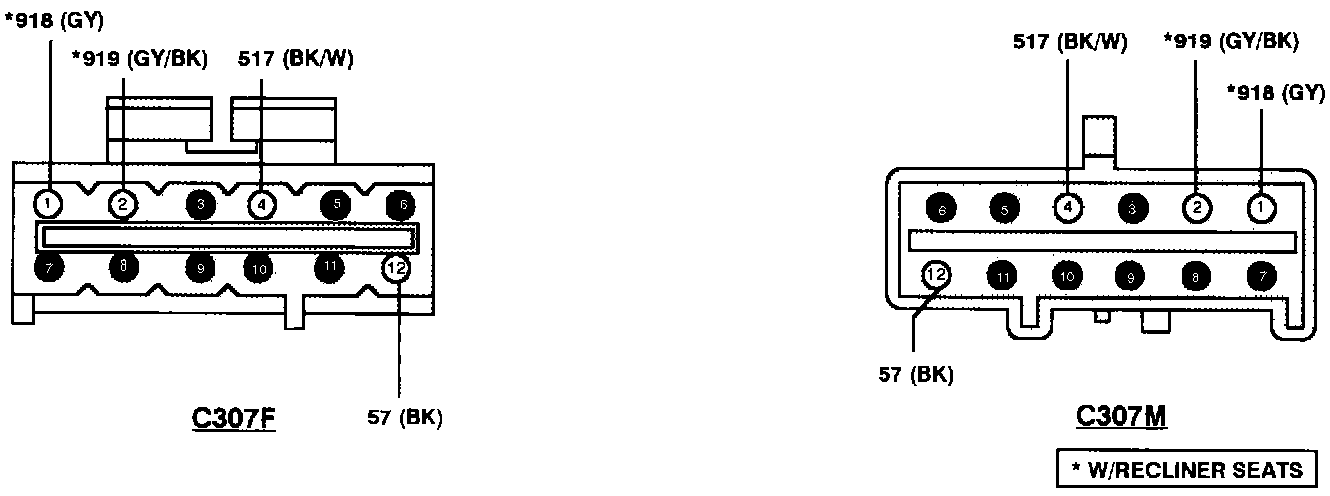

In-Line Connector Faces - C307:

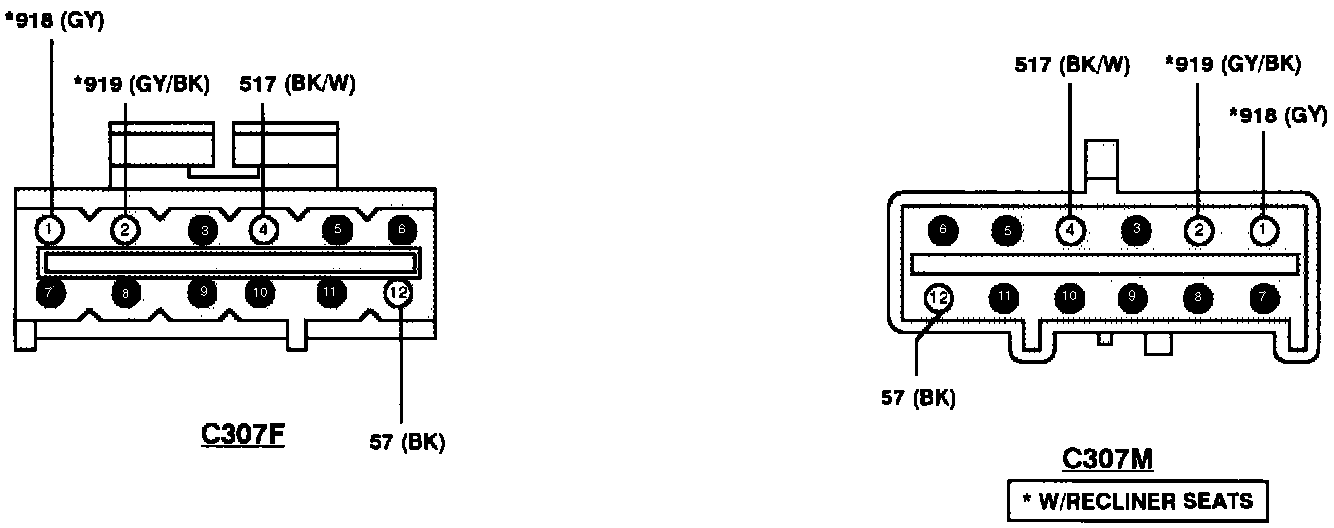

In-Line Connector Faces - C307:
