Power Mirror Motor: Service and Repair

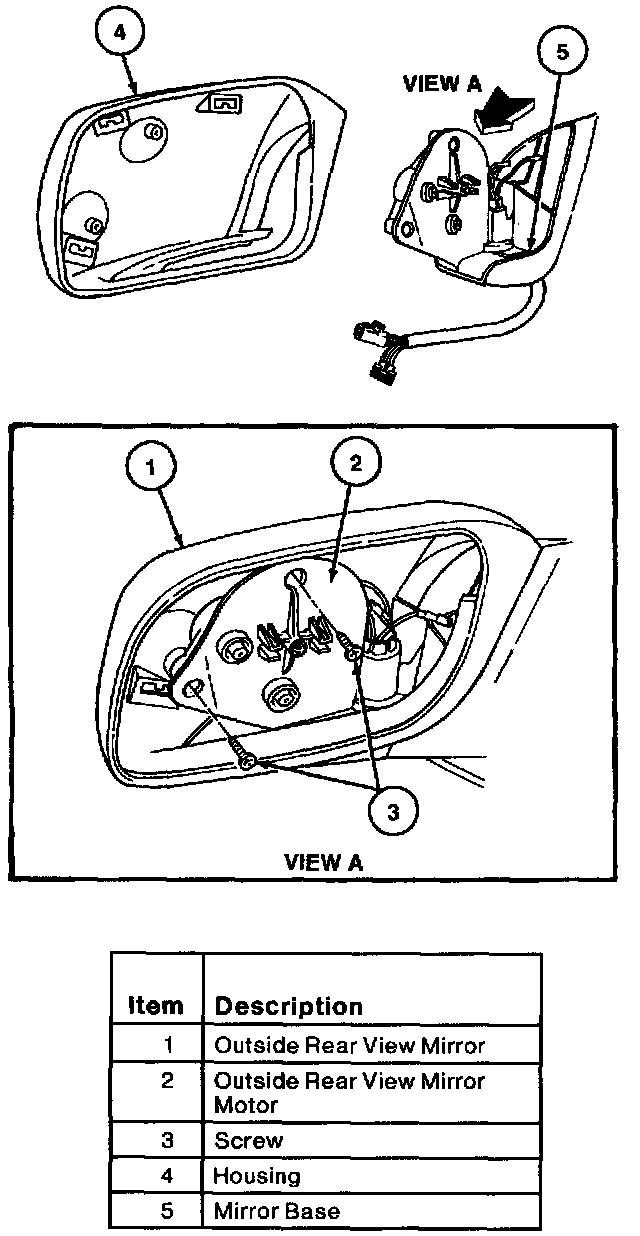

REMOVAL
1. Disconnect battery ground cable.
2. Remove outside rear view mirror glass.
3. Remove outside rear view mirror.
4. Remove two screws from outside rear view mirror motor.
5. Remove outside rear view mirror housing from outside rear view mirror base.
6. Disconnect connector and remove outside rear view mirror motor from mirror housing.

INSTALLATION
1. Follow removal procedure in reverse order.
