DB - Engine Fuel Temperature (EFT) Sensor
>>
Pinpoint Test Schematics
Pinpoint Test Schematics

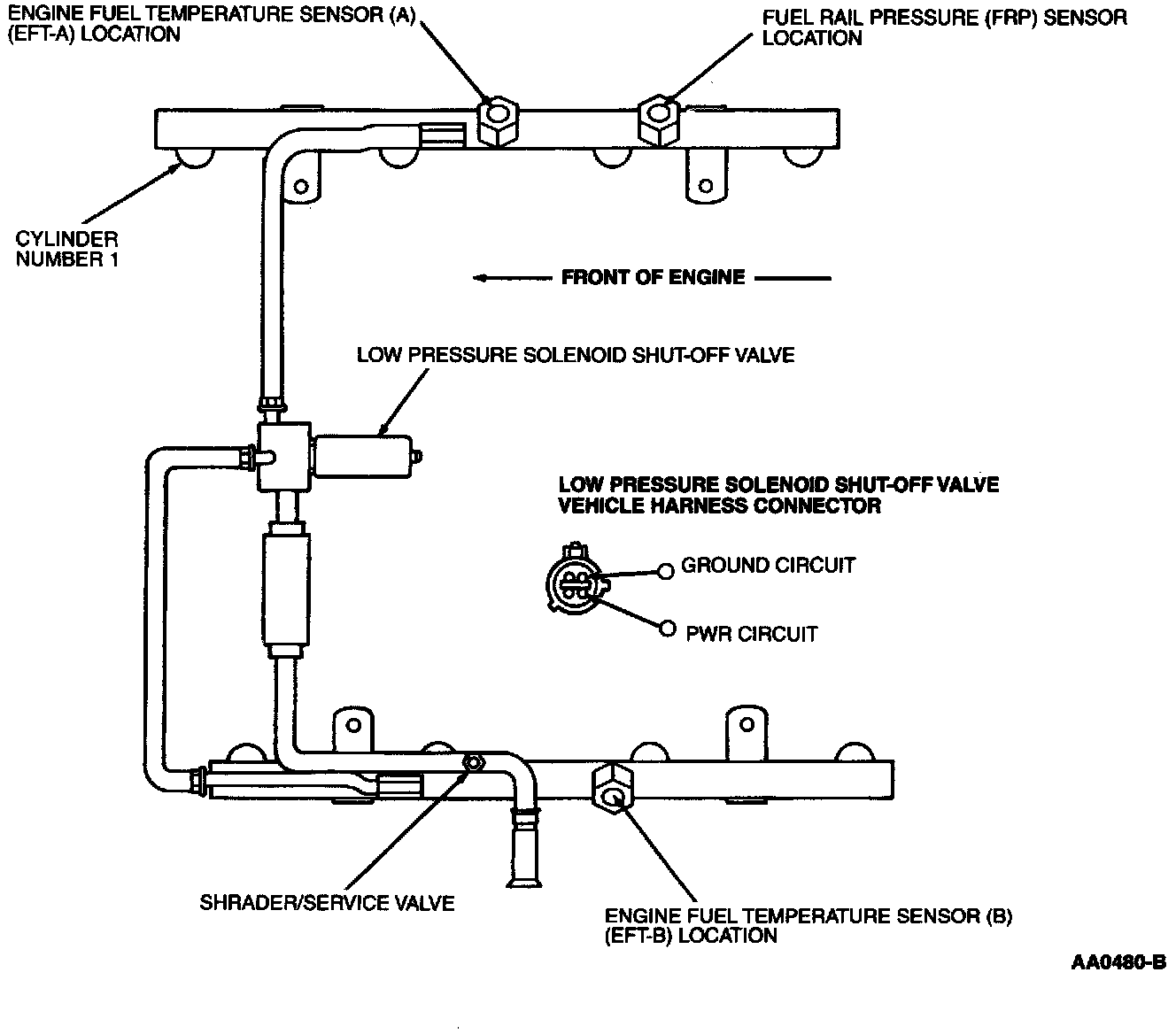

Component Locations:

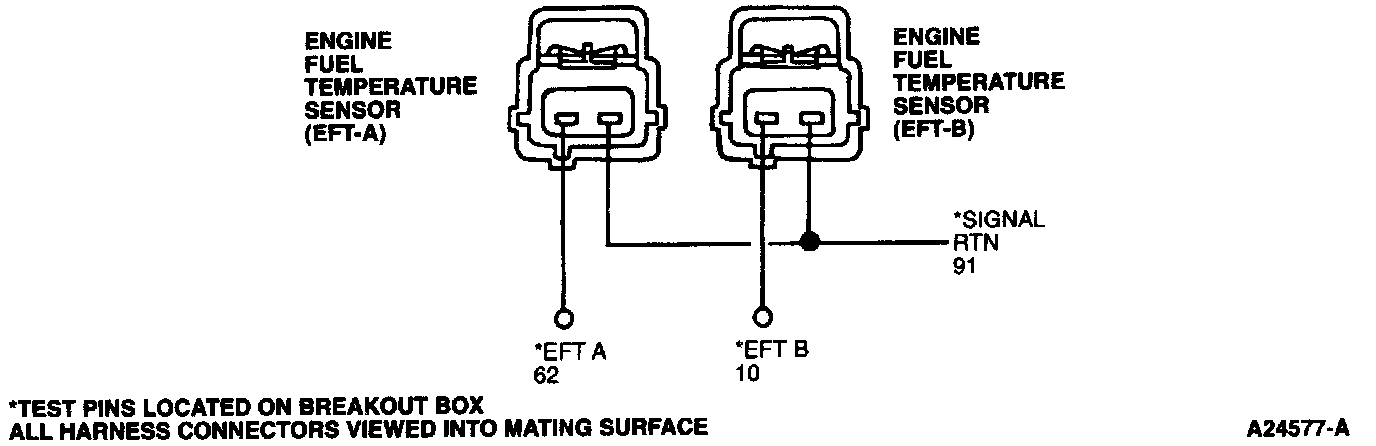

Connector View:

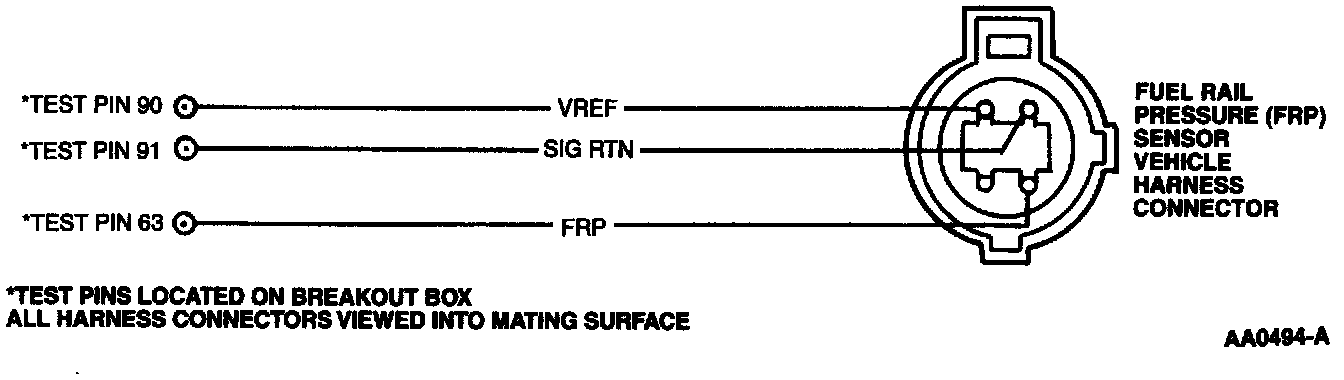

Connector View:
