Mercury
>>
1997
>>
Cougar/XR7 V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
DC - Mass Air Flow (MAF) Sensor
>>
Tables and Graphs
Tables and Graphs

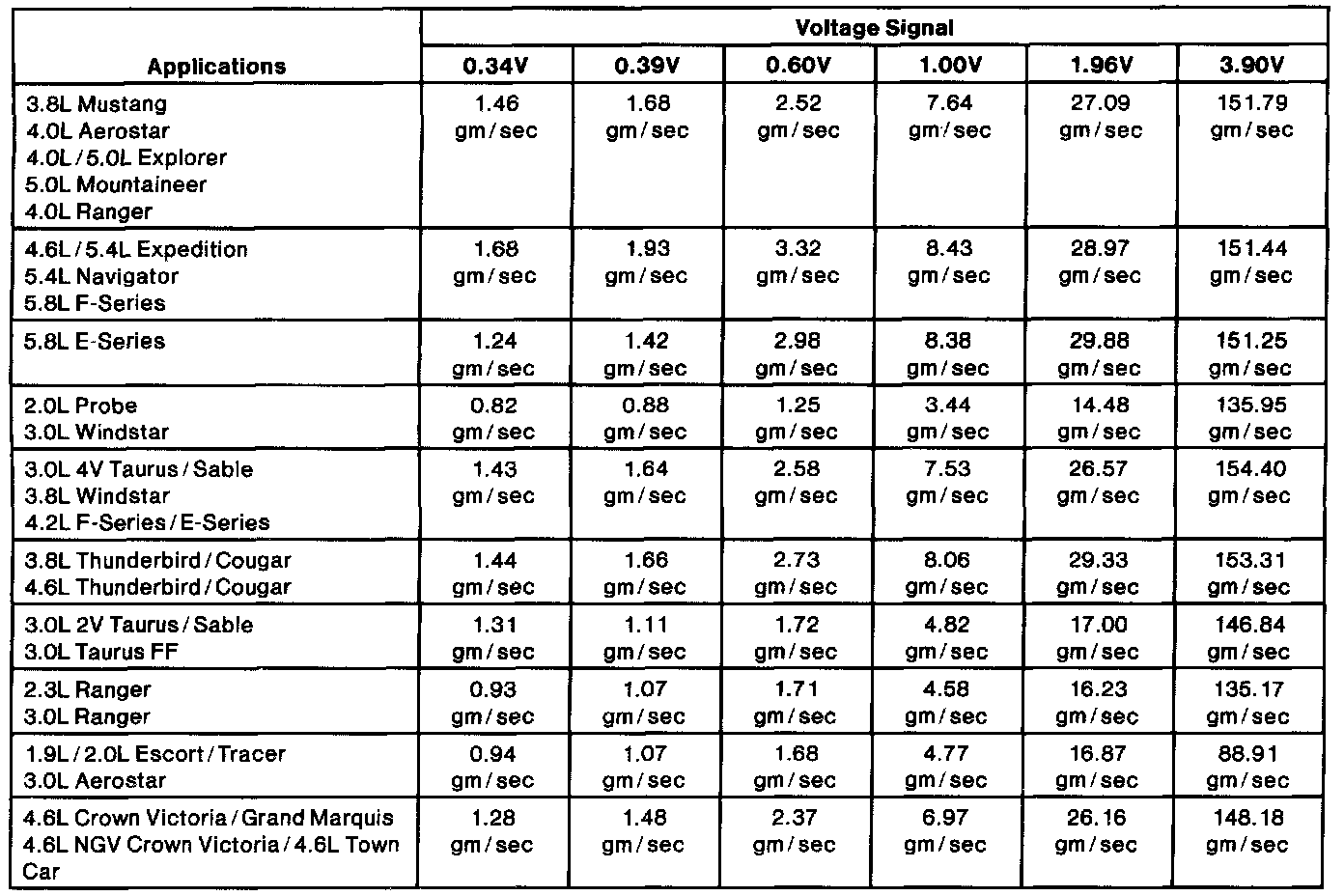

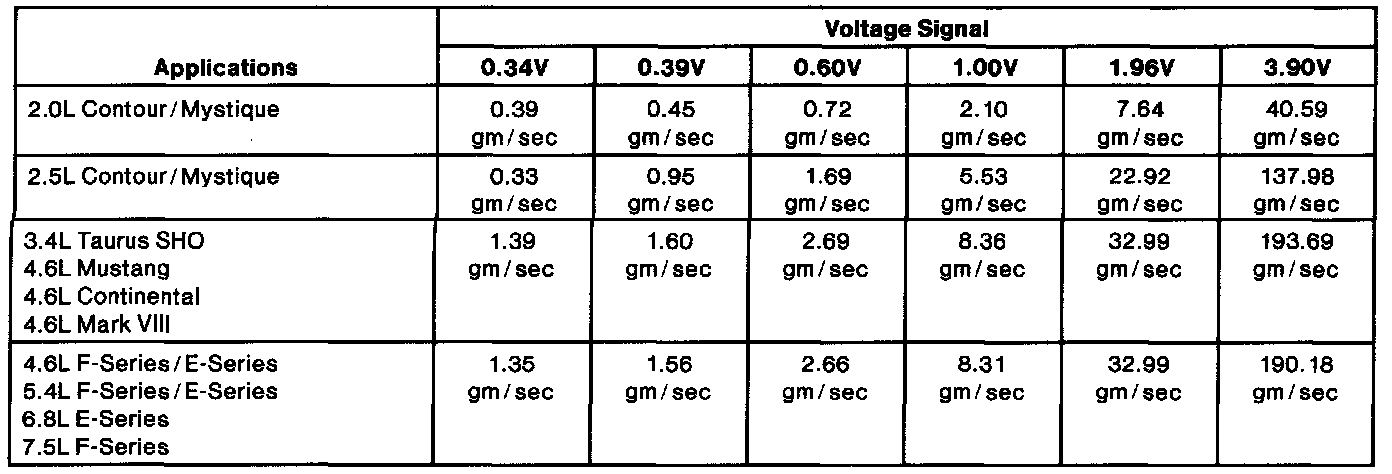

VOLTAGE TO MASS AIR FLOW CONVERSION TABLES

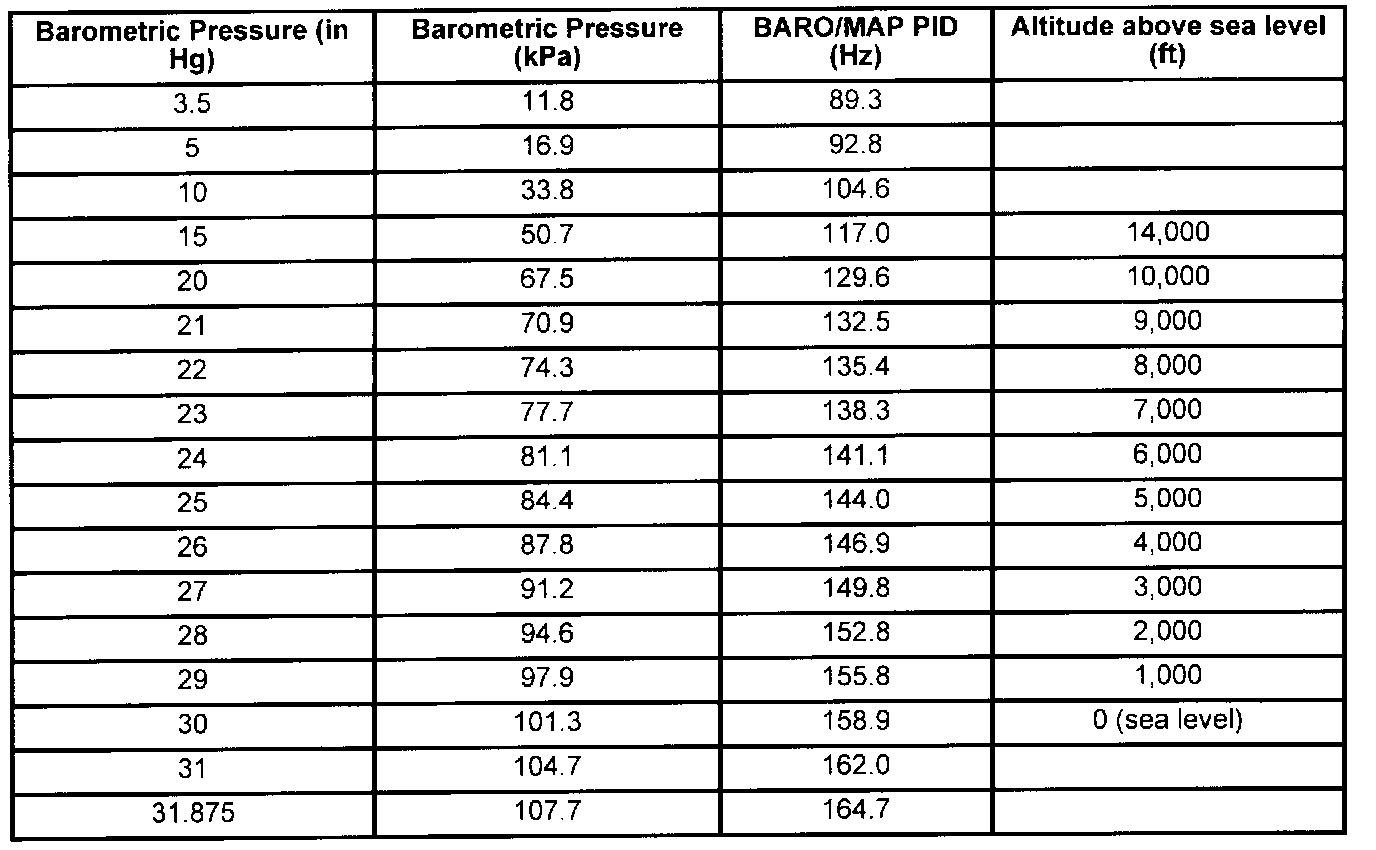

Barometric Pressure Reference Chart:
