Mercury
>>
1997
>>
Cougar/XR7 V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Grounds
>>

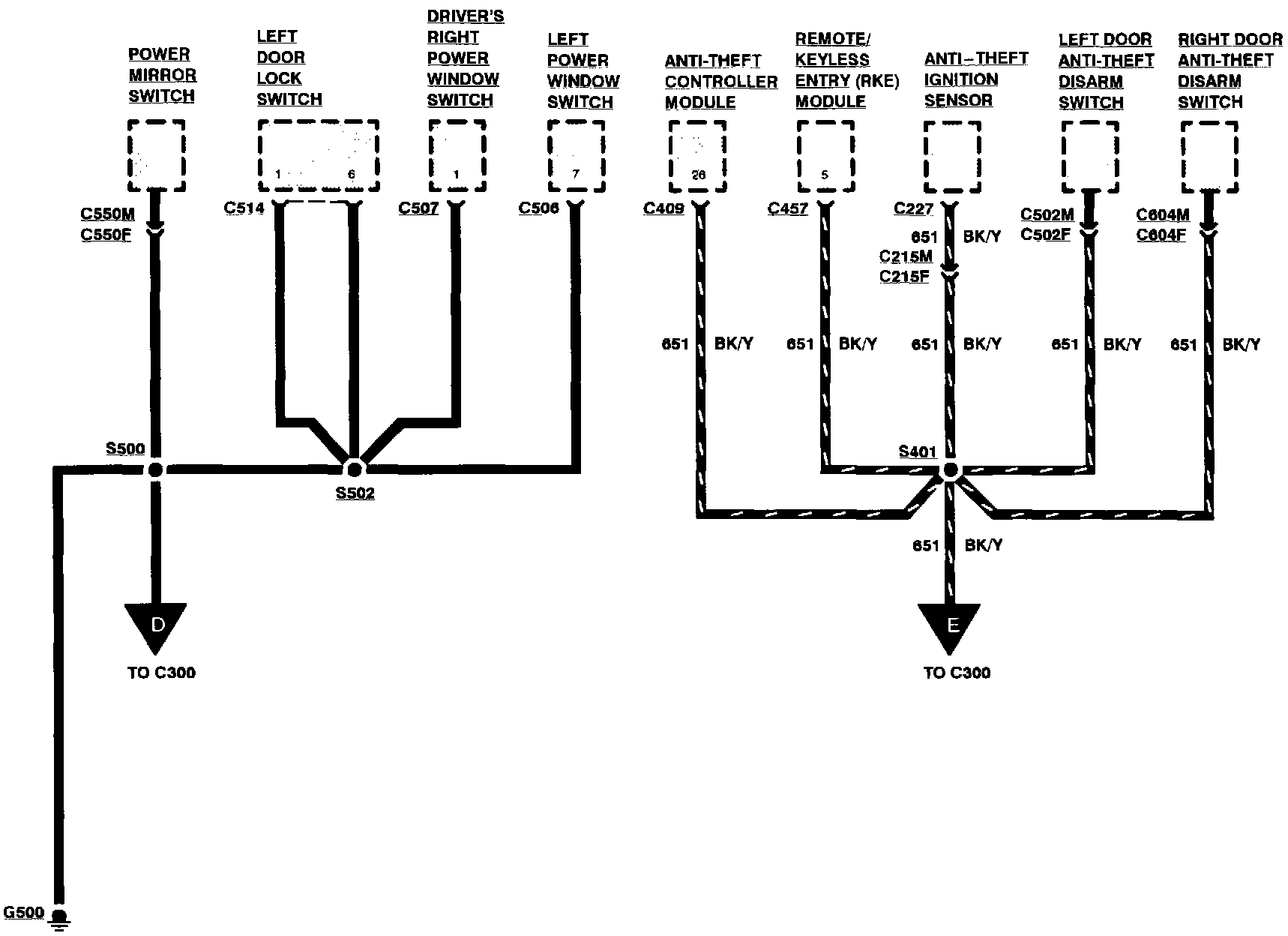

G500
G500

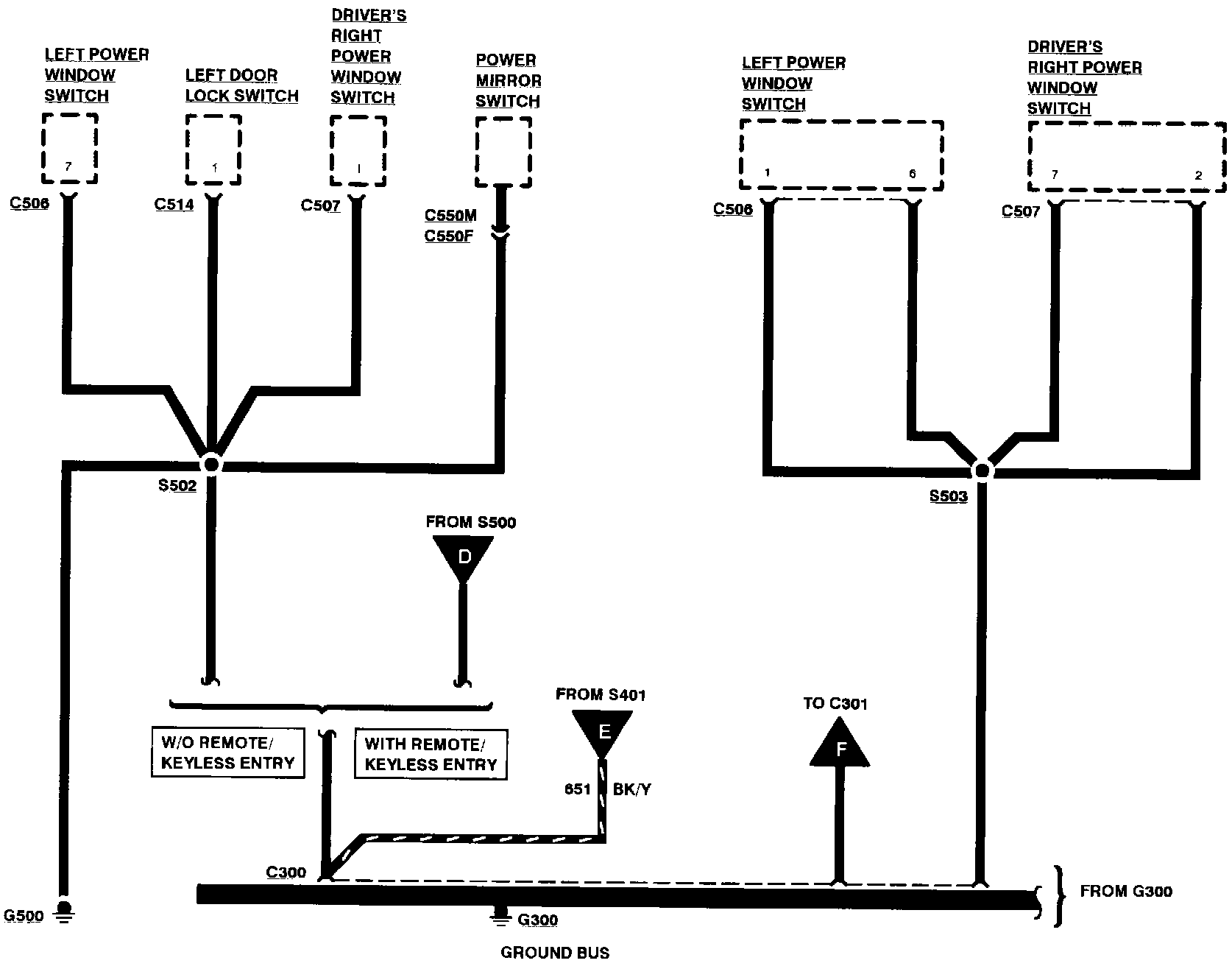

Grounds (G300 & G500):
Grounds (G300 & G500):
