Mercury
>>
1997
>>
Cougar/XR7 V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Grounds
>>
G200
G200

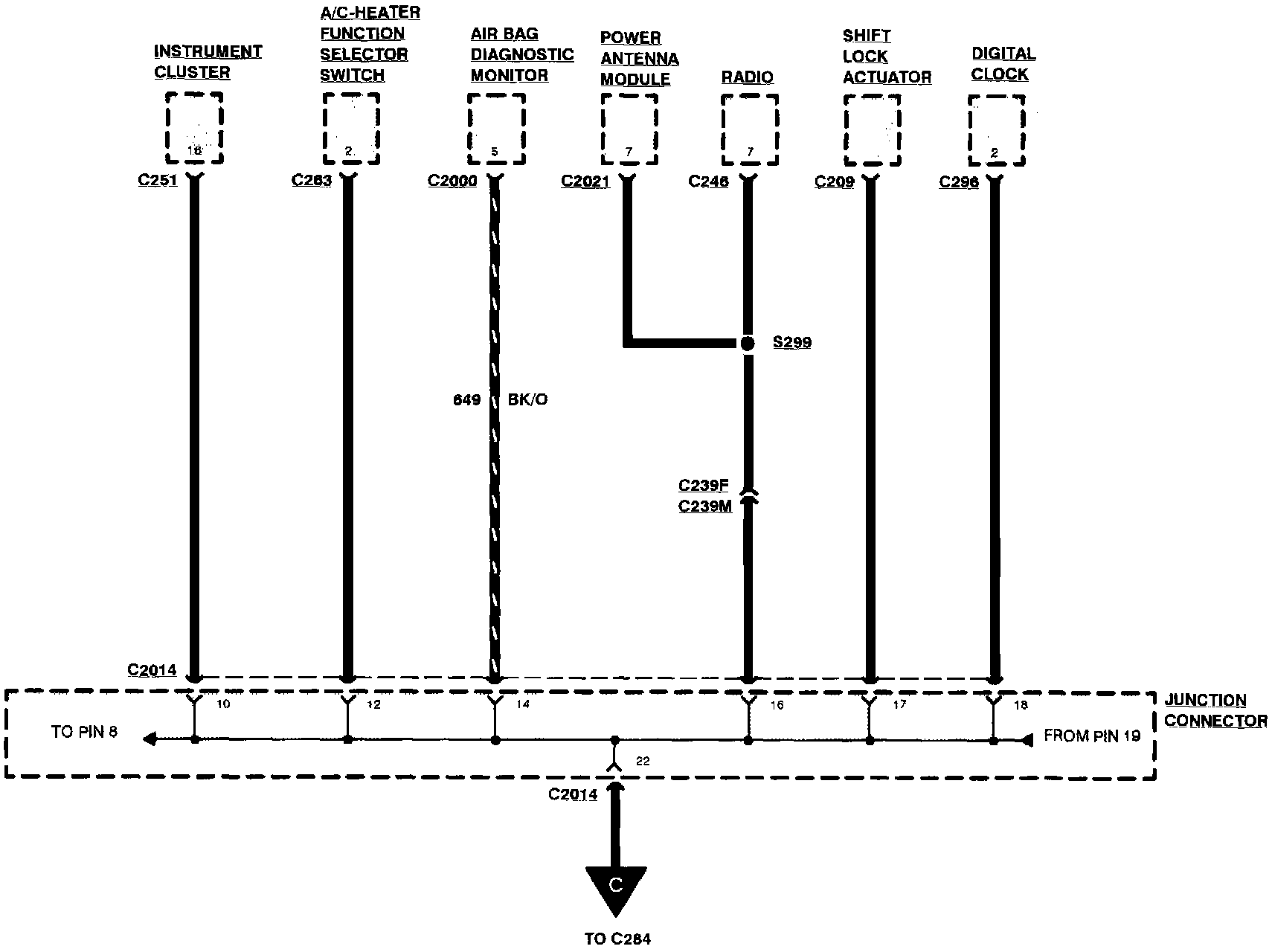

Grounds (G200, G203 & G204):

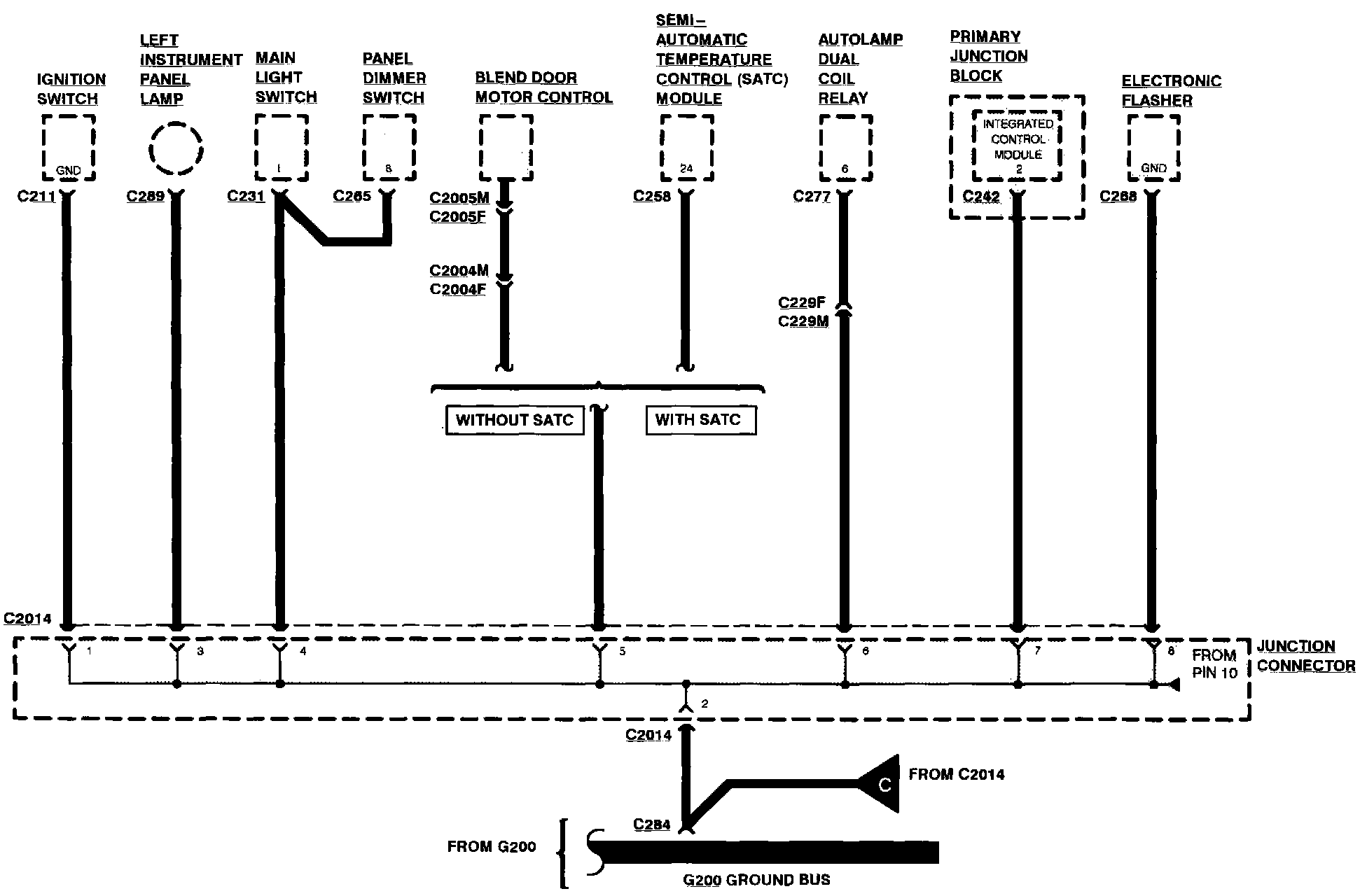

Grounds (G200):

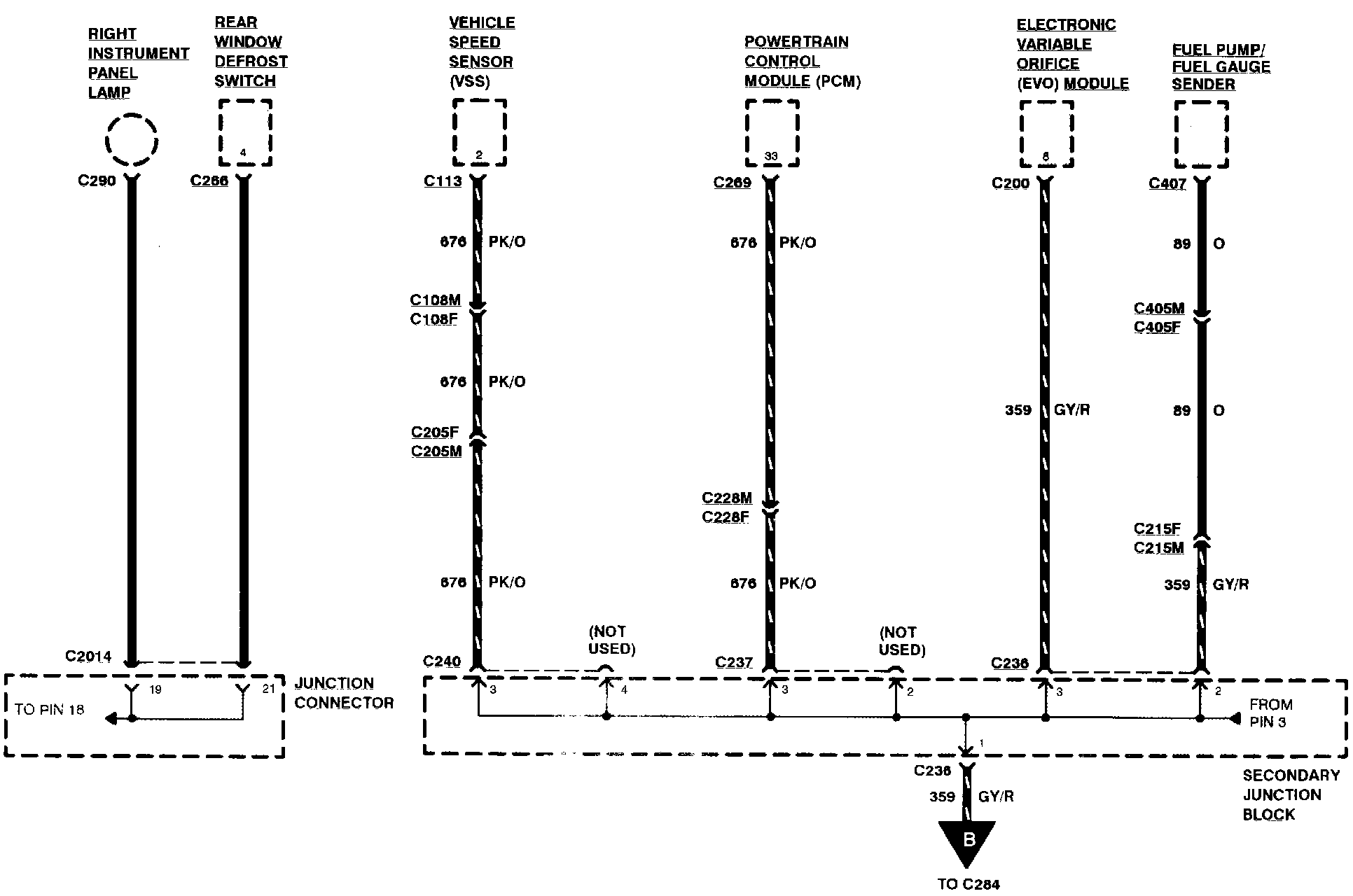

Grounds (G200):
Grounds (G200):
