Register

RH
Removal
1. Remove louver.
2. Working from inside the A/C register, use a screwdriver to release retaining clips and remove A/C instrument panel register housing from instrument panel.

Installation
1. To install, push A/C instrument panel register housing into instrument panel until retaining clips engage. Install louver.

CENTER
Center A/C instrument panel register housing is part of the center instrument panel finish panel.

LH
LH A/C instrument panel register housing is part of the instrument panel finish panel.

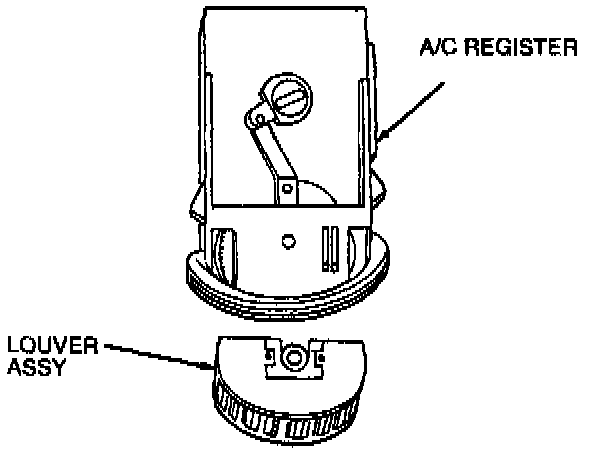

Louvers
Removal
1. Insert a thin-blade screwdriver between side of the louver assembly and A/C instrument panel register housing. Carefully pry louver assembly until retaining hole in louver assembly clears pivot pin in A/C instrument panel register housing.
2. Pull side of louver assembly out of trim panel A/C register opening and remove louver assembly.

Installation
1. Follow removal procedure in reverse order.
