Mercury
>>
1997
>>
Cougar/XR7 V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Grounds
>>
G100
G100

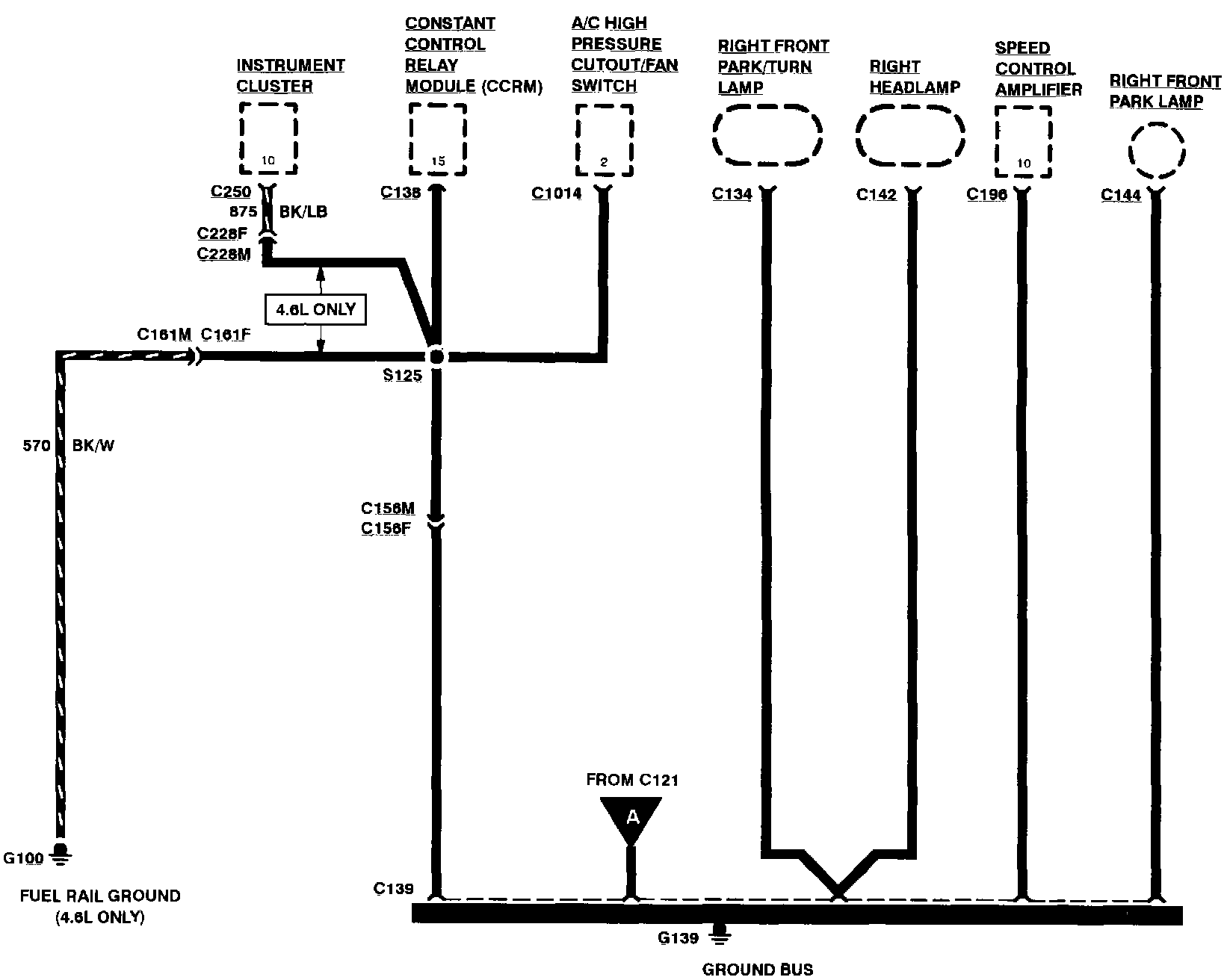

Grounds (G100 & G139):
