Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> Without Remote Keyless Entry

Without Remote Keyless Entry

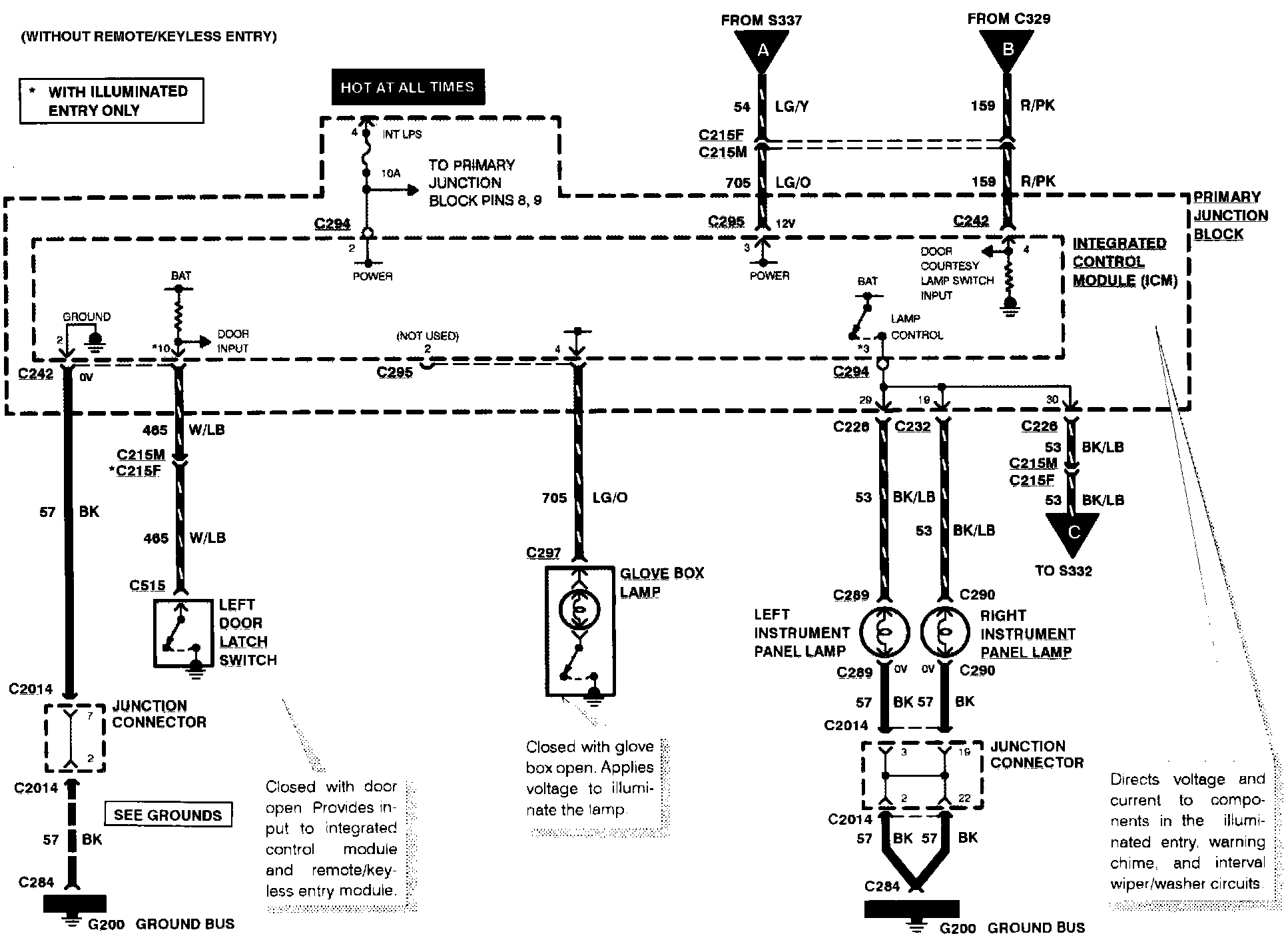

Courtesy Lamps:

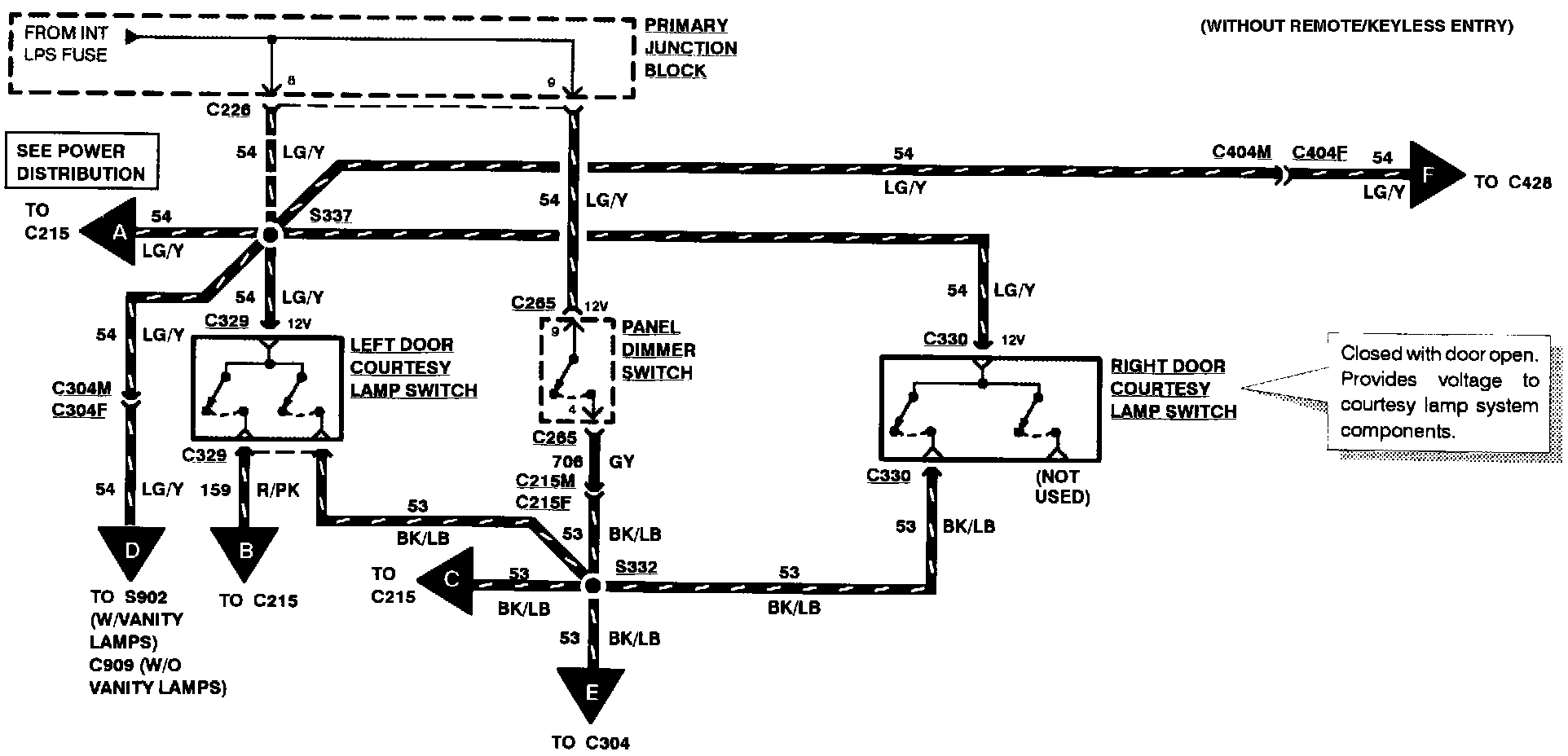

Courtesy Lamps:




Courtesy Lamps:
