Multiple Junction Connector
>>
C215
C215

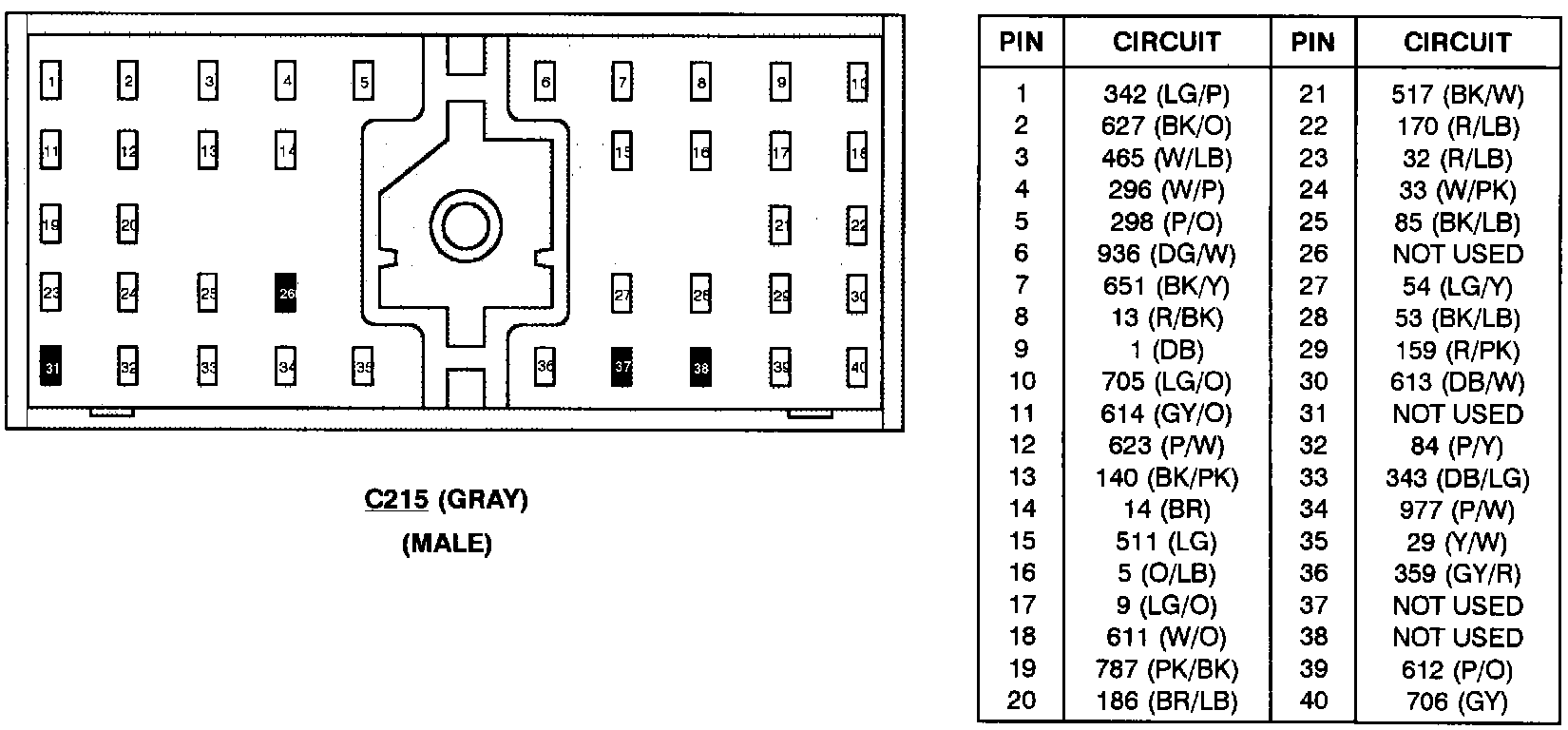

In-Line Connector Faces - C215:

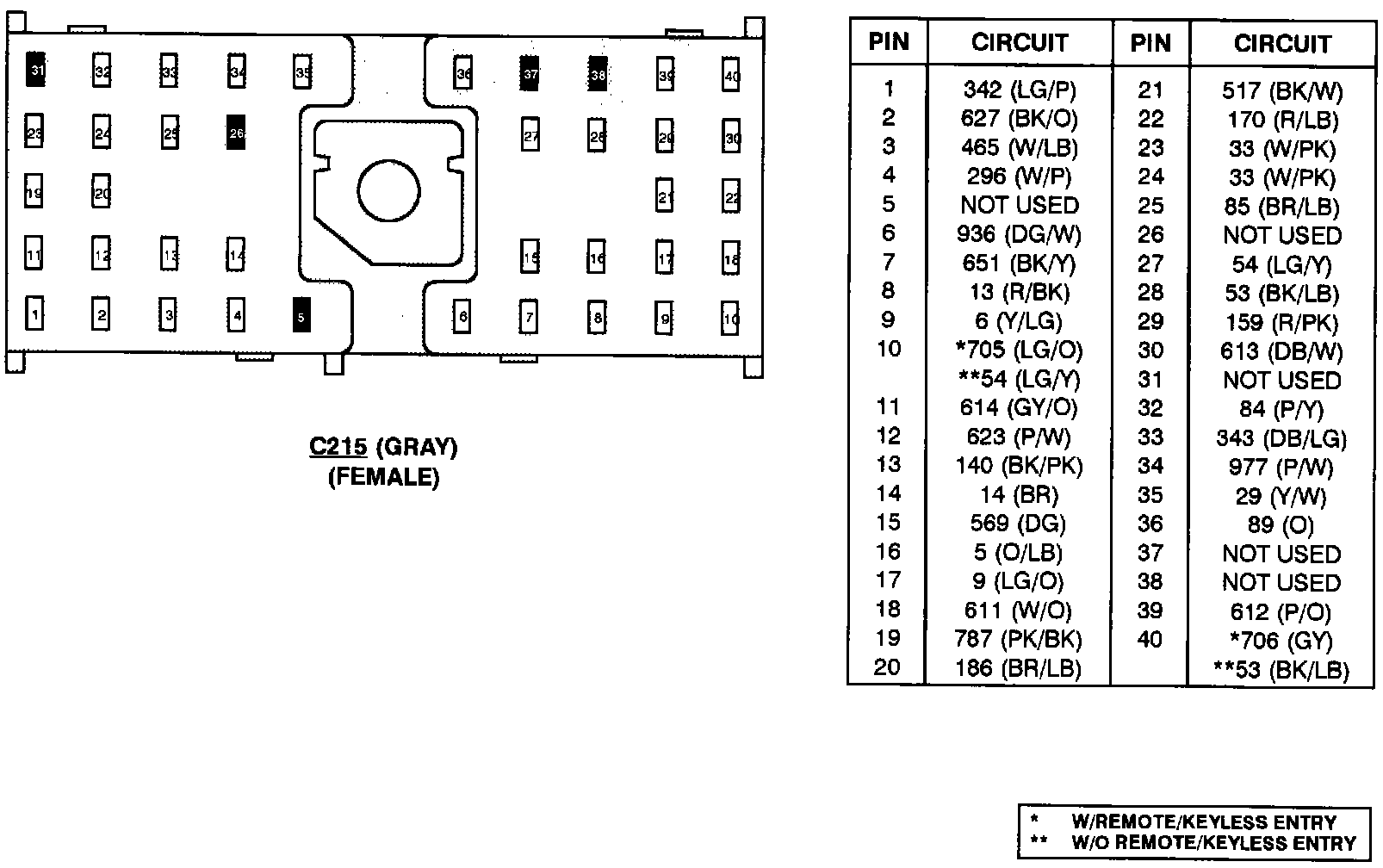

In-Line Connector Faces - C215:
