Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1997
>>
Cougar/XR7 V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C103
C103

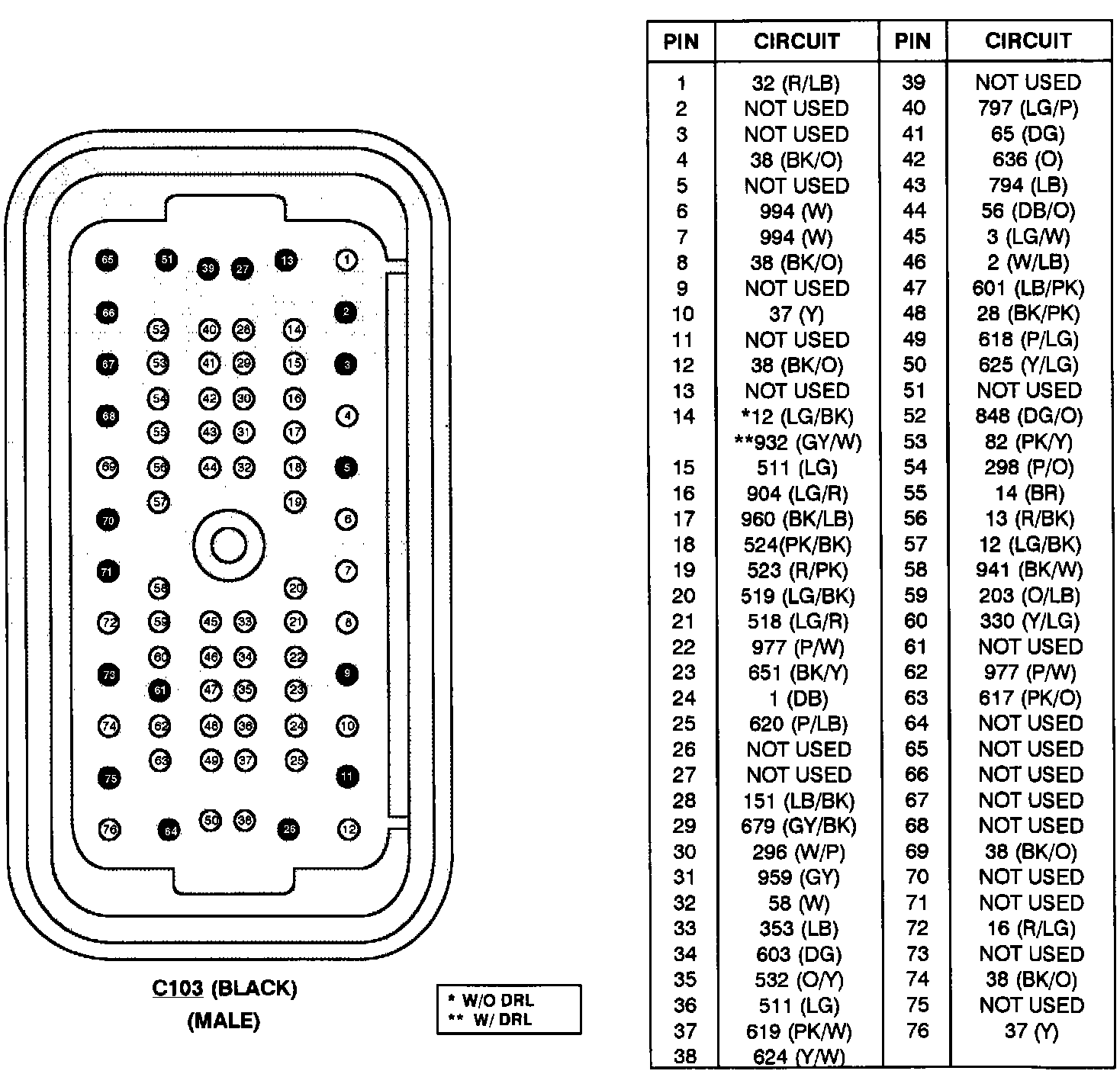

In-Line Connector Faces - C103M:

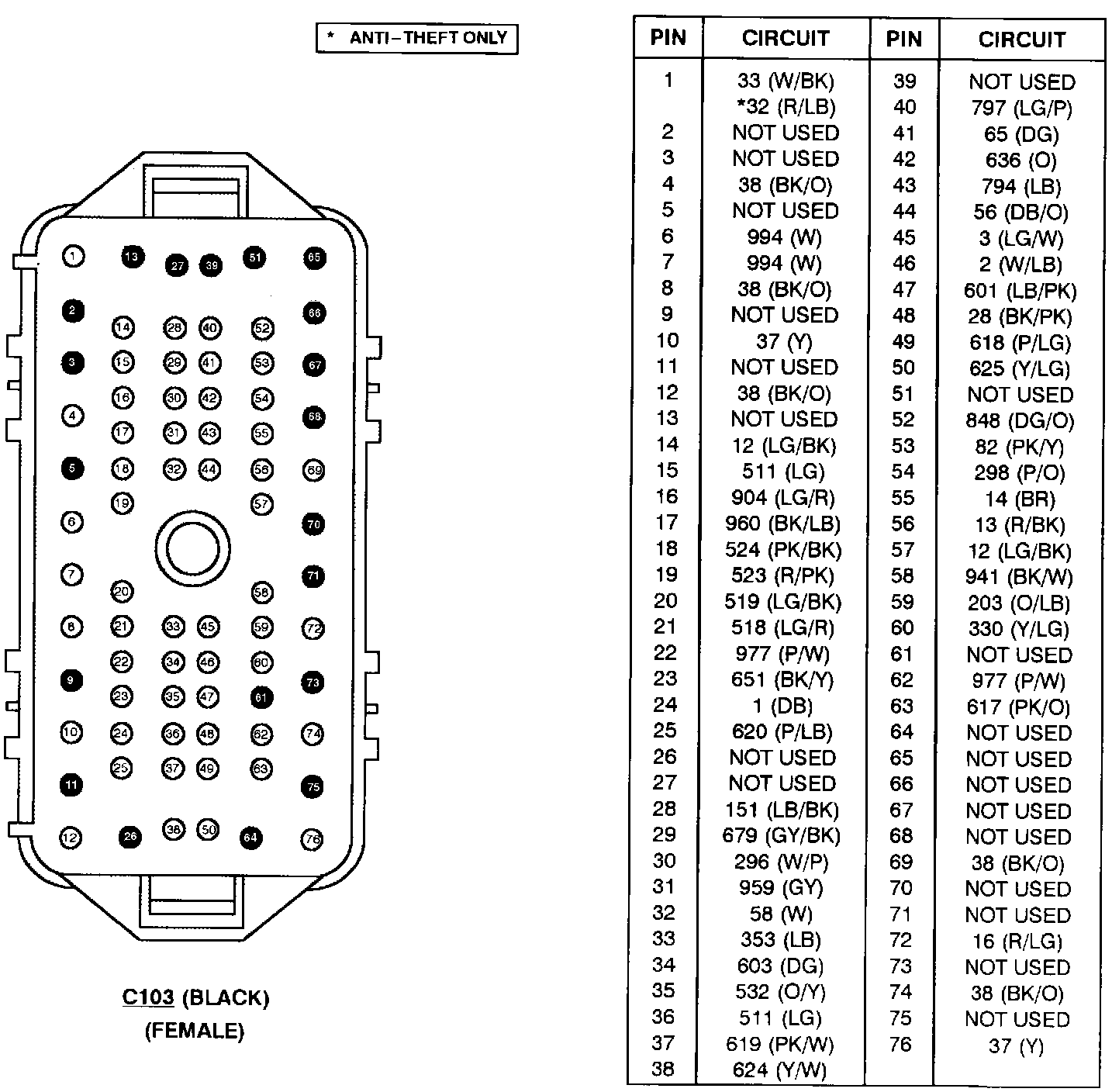

In-Line Connector Faces - C103F:
