Arm Rest Cover

REAR CENTER

Removal
1. Remove rear seat cushion and rear seat back assembly.
2. Cut retaining hog rings and remove rear seat back cover from armrest opening in seat back.
3. Cut hog rings that retain rear seat back center arm rest cover flap to rear seat back.
4. Remove four nuts that retain rear seat back center arm rest link and vertical strainer to the rear seat back pad and frame and remove armrest assembly.
5. Remove two bolts retaining rear seat back center arm rest link and vertical strainer to armrest.
6. Unzip the zipper, and slip rear seat back center arm rest cover off rear seat back center arm rest pad.

Installation
1. Slip new rear seat back center arm rest cover over rear seat back center arm rest pad and close zipper.
2. Position rear seat back center arm rest link and vertical strainer to armrest and install two retaining bolts.

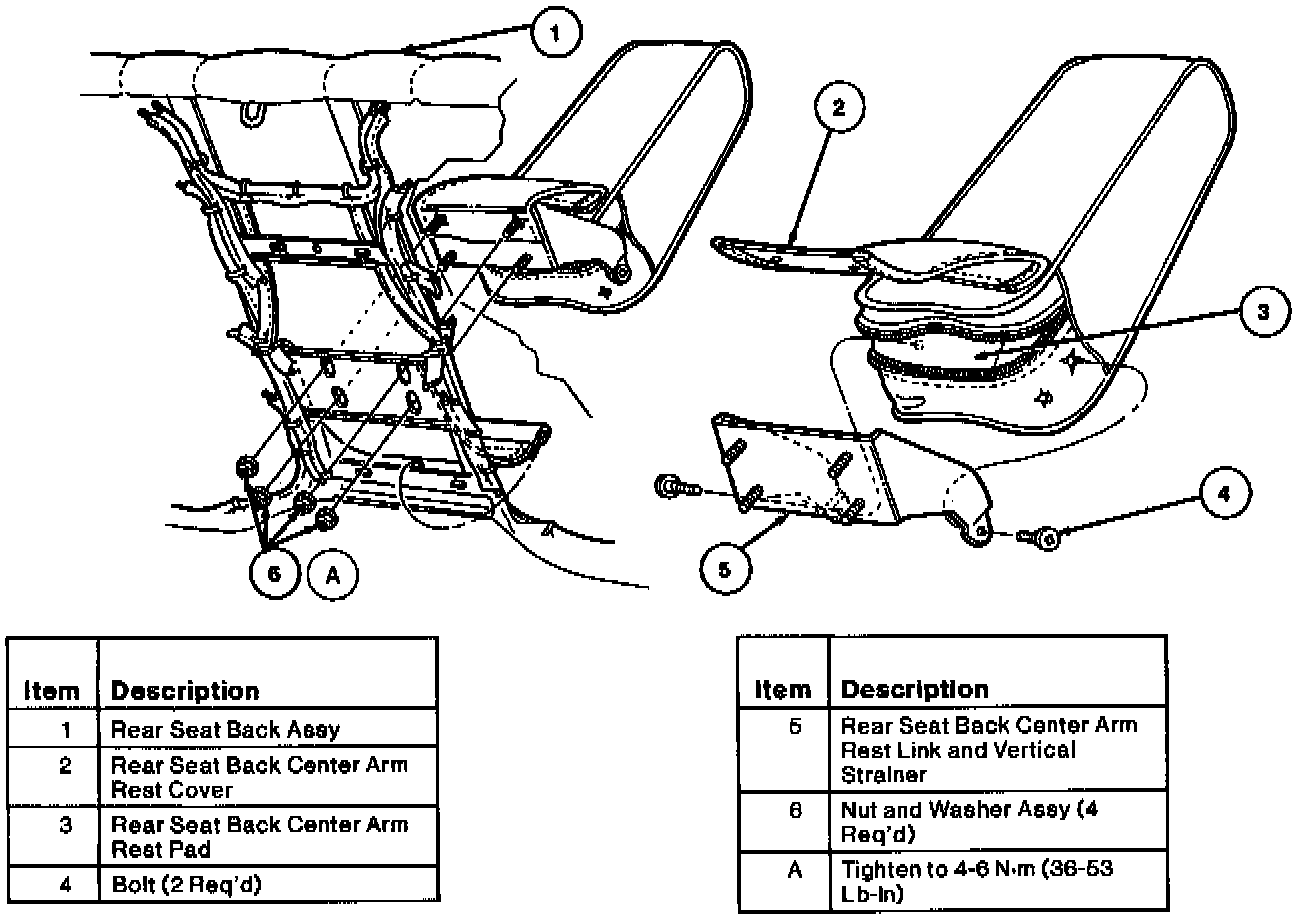

3. Assemble the center armrest to the rear seat back pad and frame. Install four vertical strainer-to-seat back retaining nuts. Tighten to 4-6 Nm (36-53 Lb-In).
4. Fasten rear seat back center arm rest cover flap to rear seat back with hog rings.
5. Install rear seat back assembly and rear seat cushion.
