Axle Vent Replacement

REMOVAL
1. Remove axle housing cover.

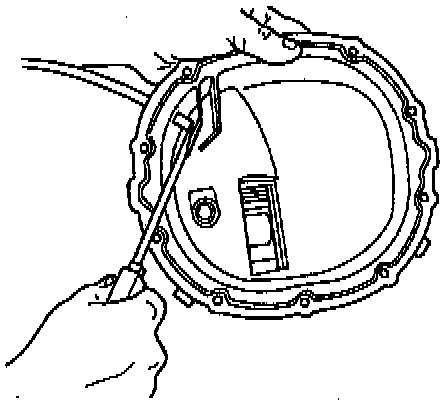

2. Pry out rear axle housing vent with a screwdriver.





INSTALLATION

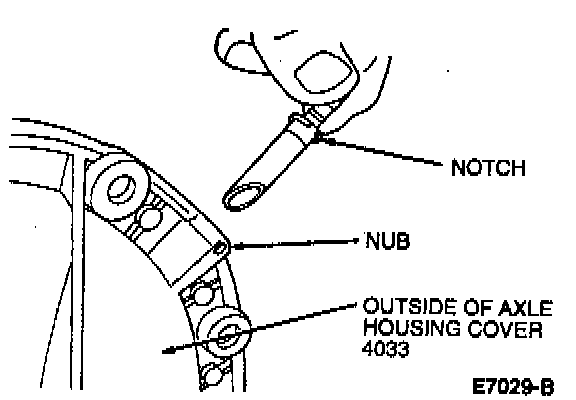

1. Install rear axle housing vent as shown. Notch in rear axle housing vent must be aligned with nub in axle housing cover.

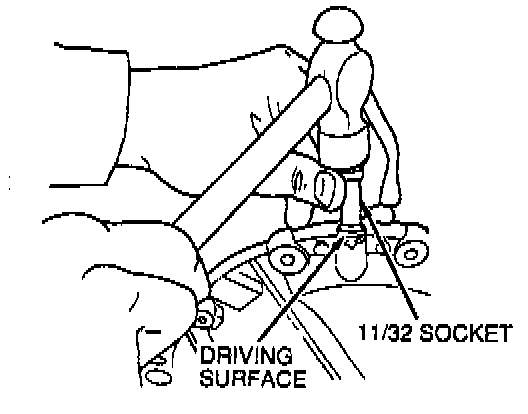

2. Seat rear axle housing vent using a 11/32-inch deep-well socket or similar tool to drive against rear axle housing vent lip. Do not hammer on end of rear axle housing vent.

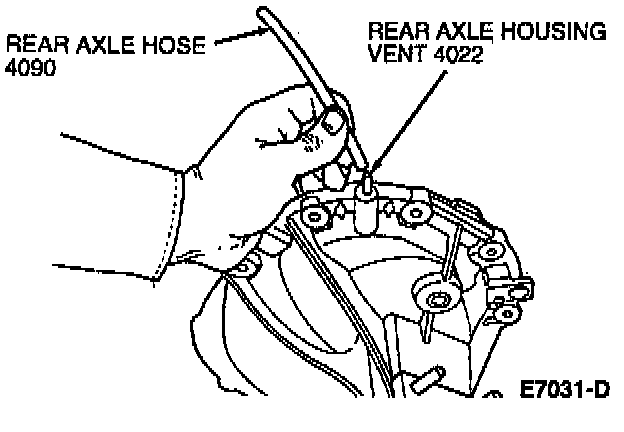

3. Install rear axle vent hose. Inspect rear axle vent hose for cracks and restrictions. Replace as required.
4. Install axle housing cover.
