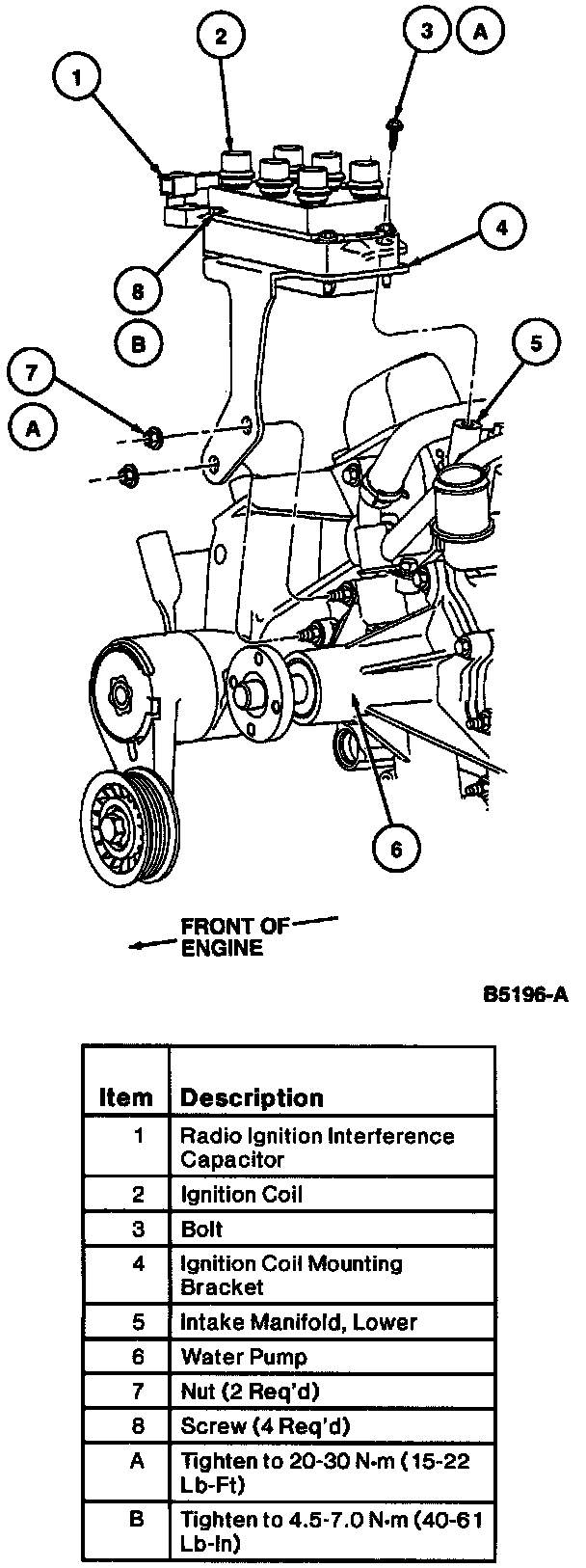

Ignition Coil Bracket

REMOVAL
1. Remove the coil pack.
2. Remove the two coil pack bracket nuts, one coil pack bracket bolt and coil pack bracket.

INSTALLATION
1. Position the ignition coil bracket and nuts and install the mounting bolt and nuts. Tighten the bolt and nuts to 20-30 Nm (15-22 lb ft).
2. Install the coil pack.
