Home >> Mercury >> 1997 >> Cougar/XR7 V6-3.8L VIN 4 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Electrical Diagrams >> With Remote Keyless Entry

With Remote Keyless Entry

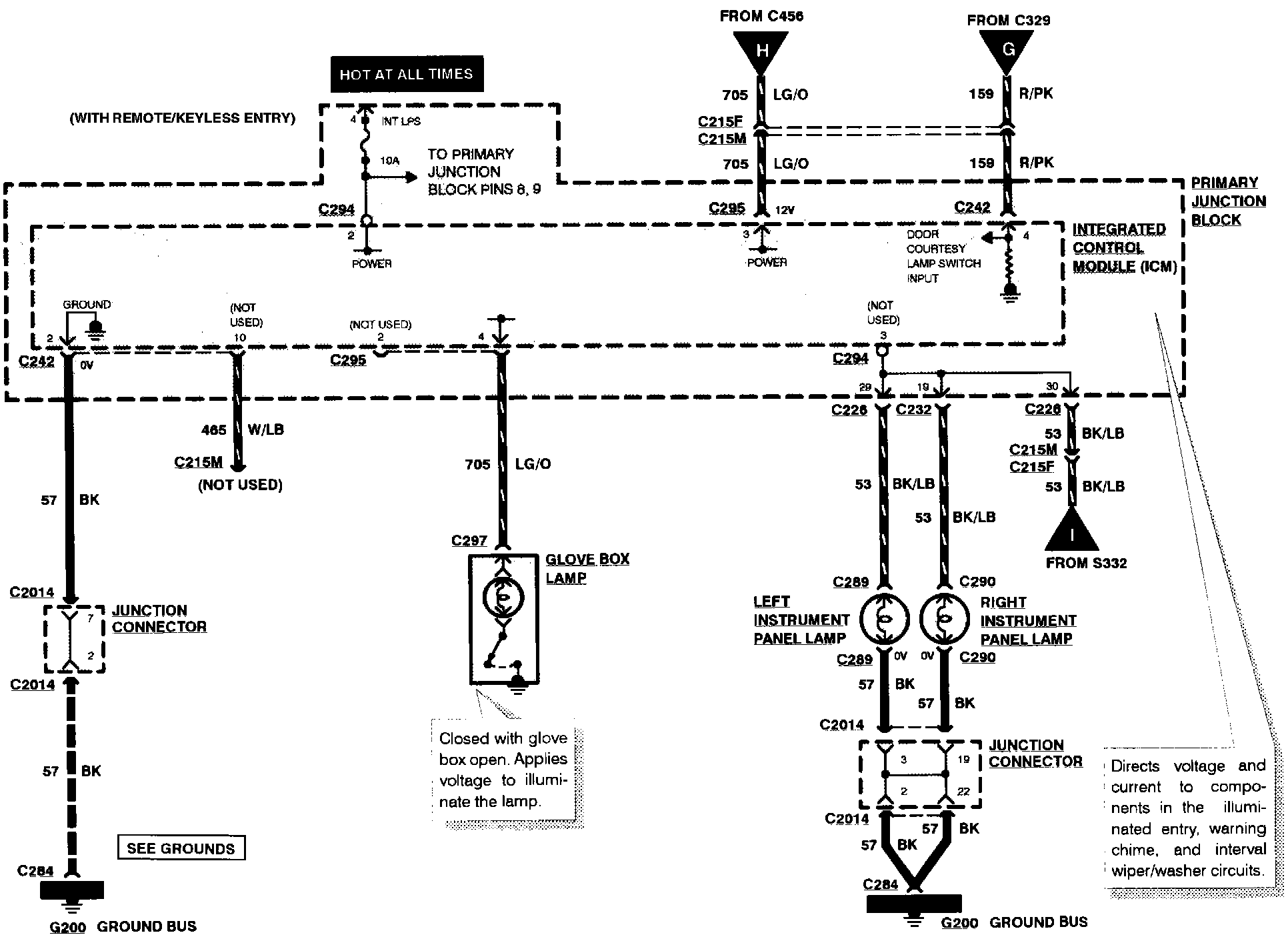

Courtesy Lamps:

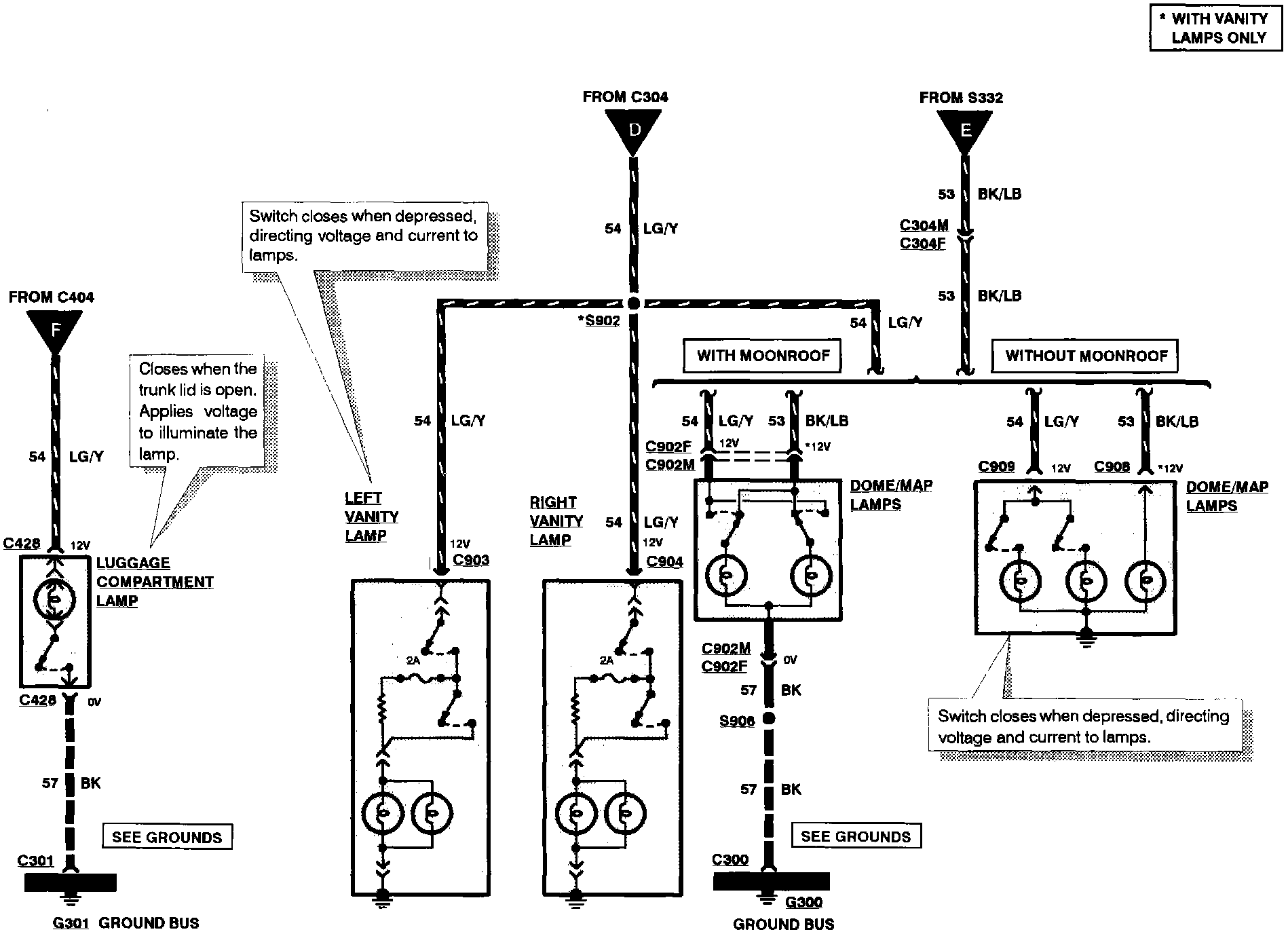

Courtesy Lamps:

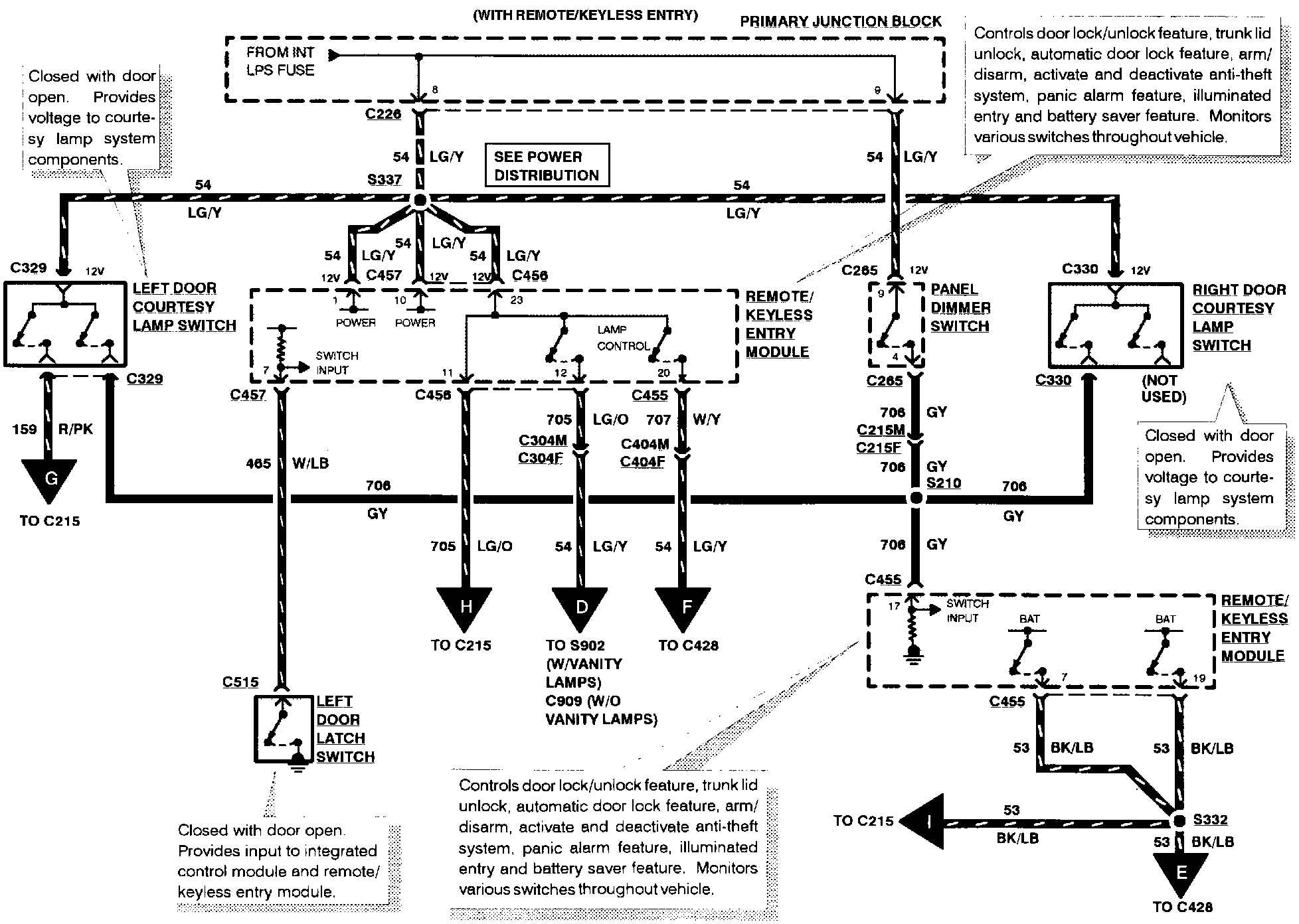

Courtesy Lamps:
