Vacuum Reservoir HVAC: Service and Repair

Removal
1. Remove wheel.

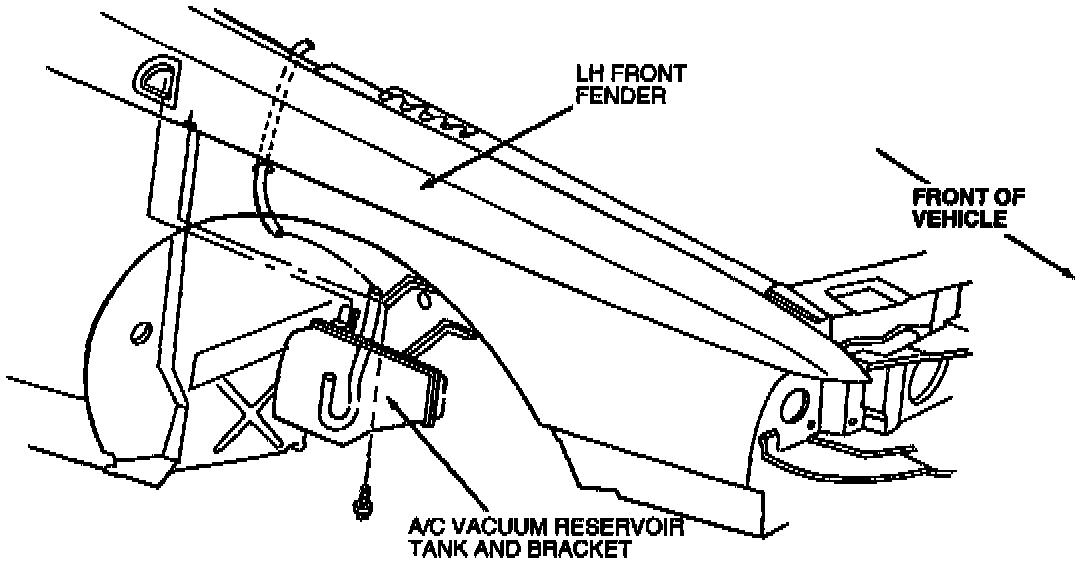

2. Remove three push pins and one screw retaining rear half of inner fender. Lower to gain access to vacuum reservoir.
3. Remove vacuum tank retaining bolt.
4. Remove vacuum tank.

Installation
1. Follow removal procedure in reverse order.
