Mercury
>>
1997
>>
Cougar/XR7 V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

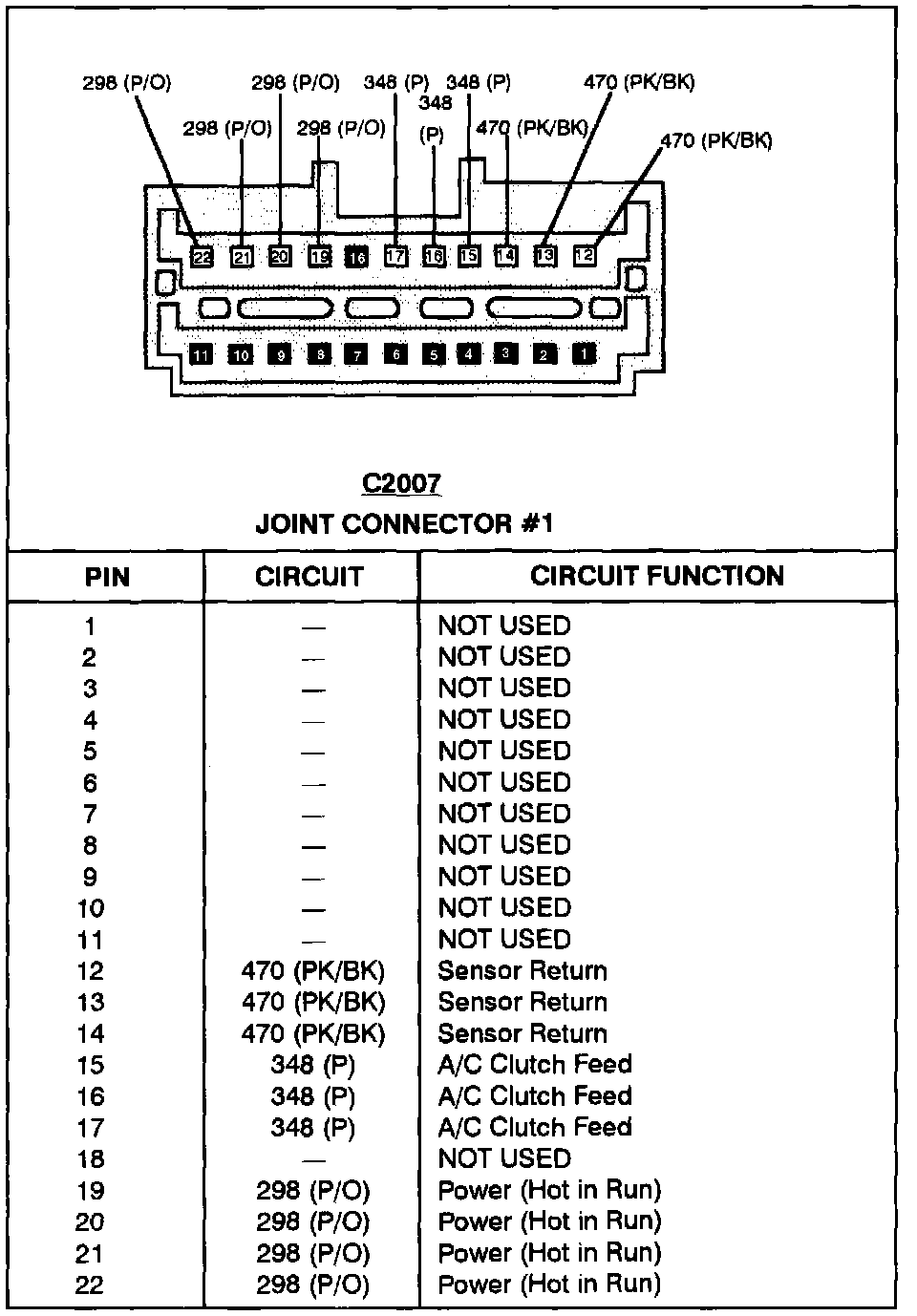

Joint Connector #1:
