Oil Pressure Sender: Service and Repair

REMOVAL

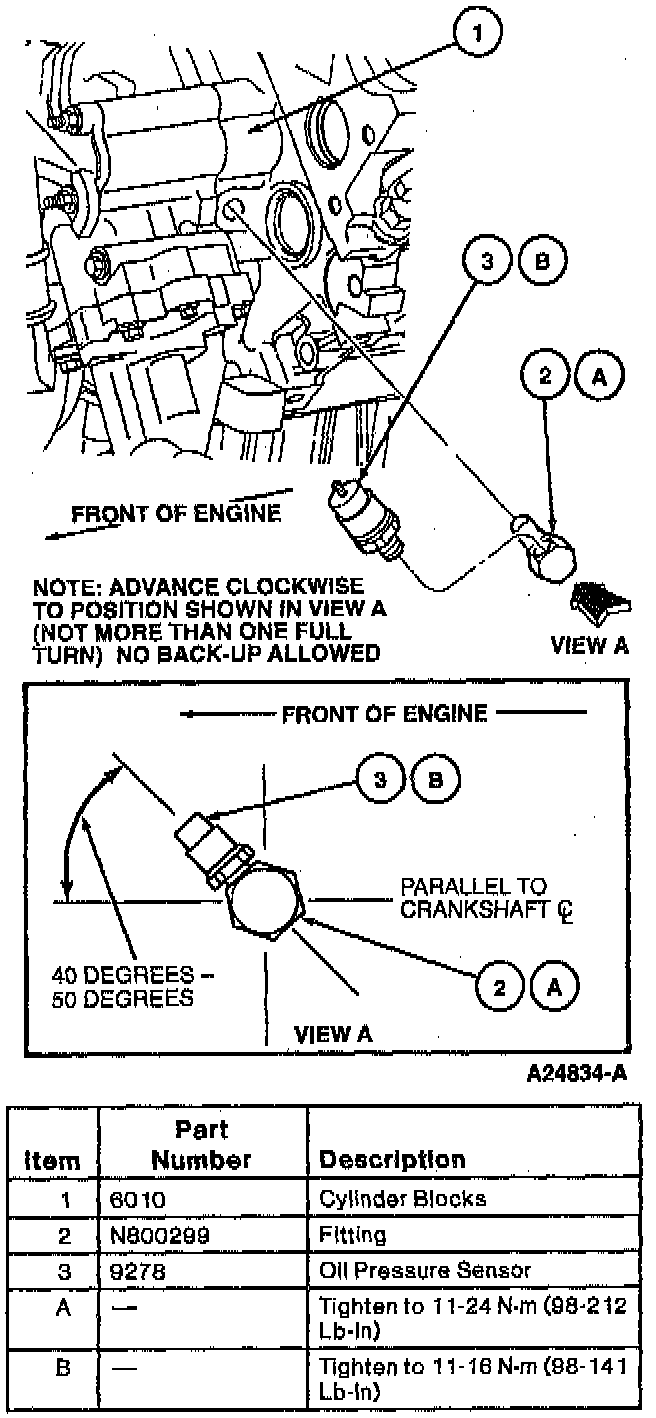

1. Disconnect wiring connector from oil pressure sensor (9278).
2. Remove oil pressure sensor from the oil pressure fitting





INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten to 11-16 Nm (98-141 inch lbs.).
