Home
>>
Mercury
>>
1997
>>
Cougar/XR7 V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Grounds
>>
G204
G204

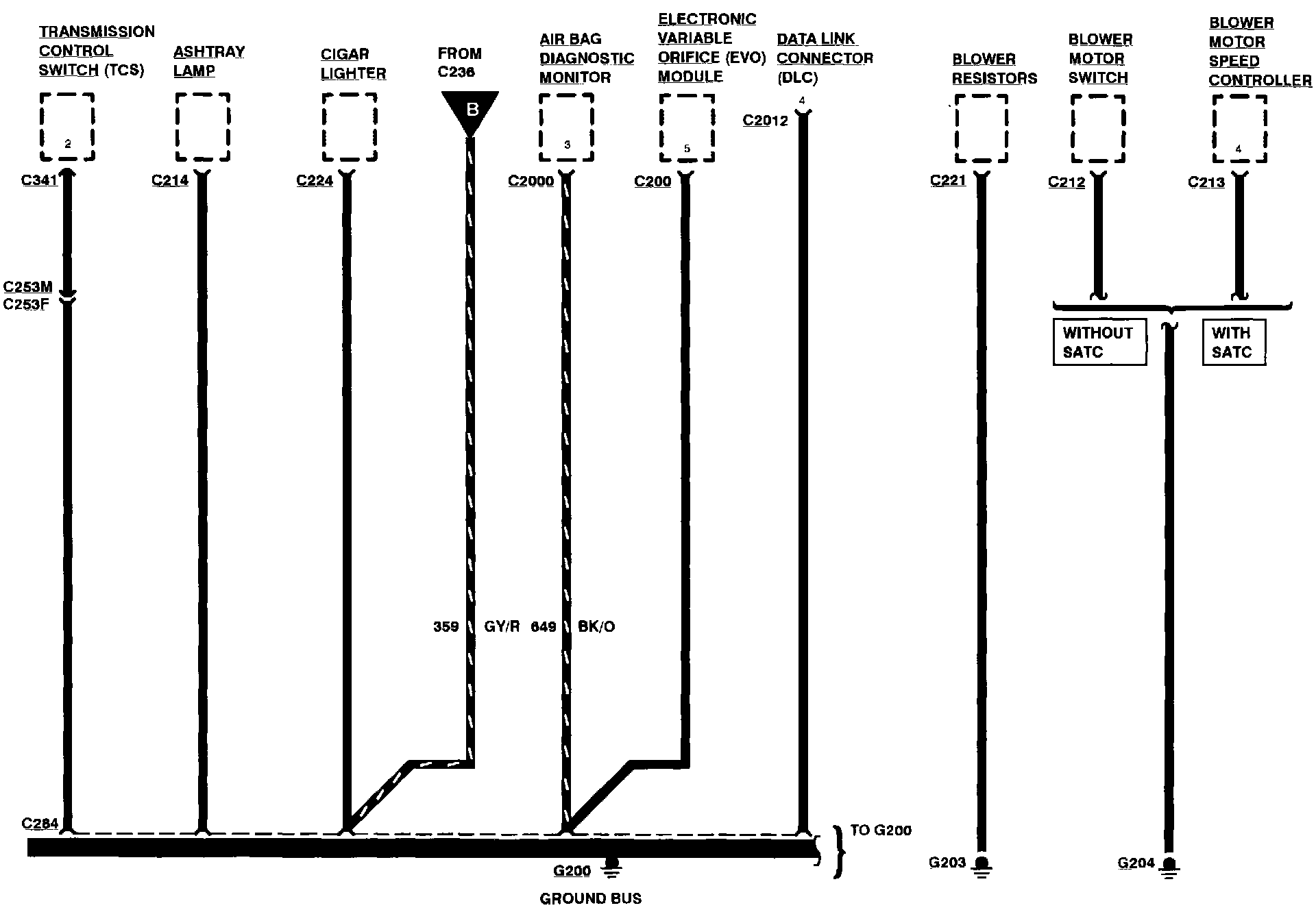

Grounds (G200, G203 & G204):
