Home
>>
Mercury
>>
1997
>>
Cougar/XR7 V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Right Door
>>
With Remote/Keyless Entry
With Remote/Keyless Entry

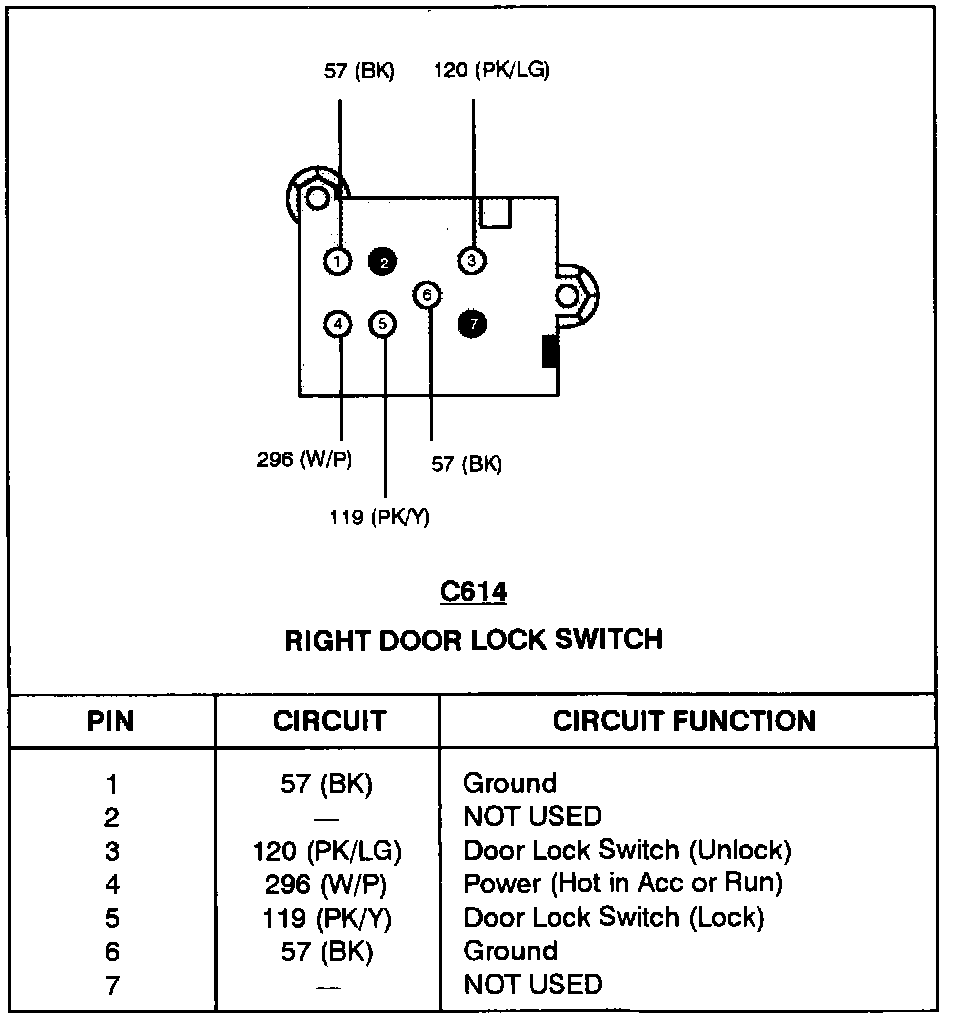

Right Door Lock Switch:
