Mercury
>>
1997
>>
Cougar/XR7 V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C228
C228

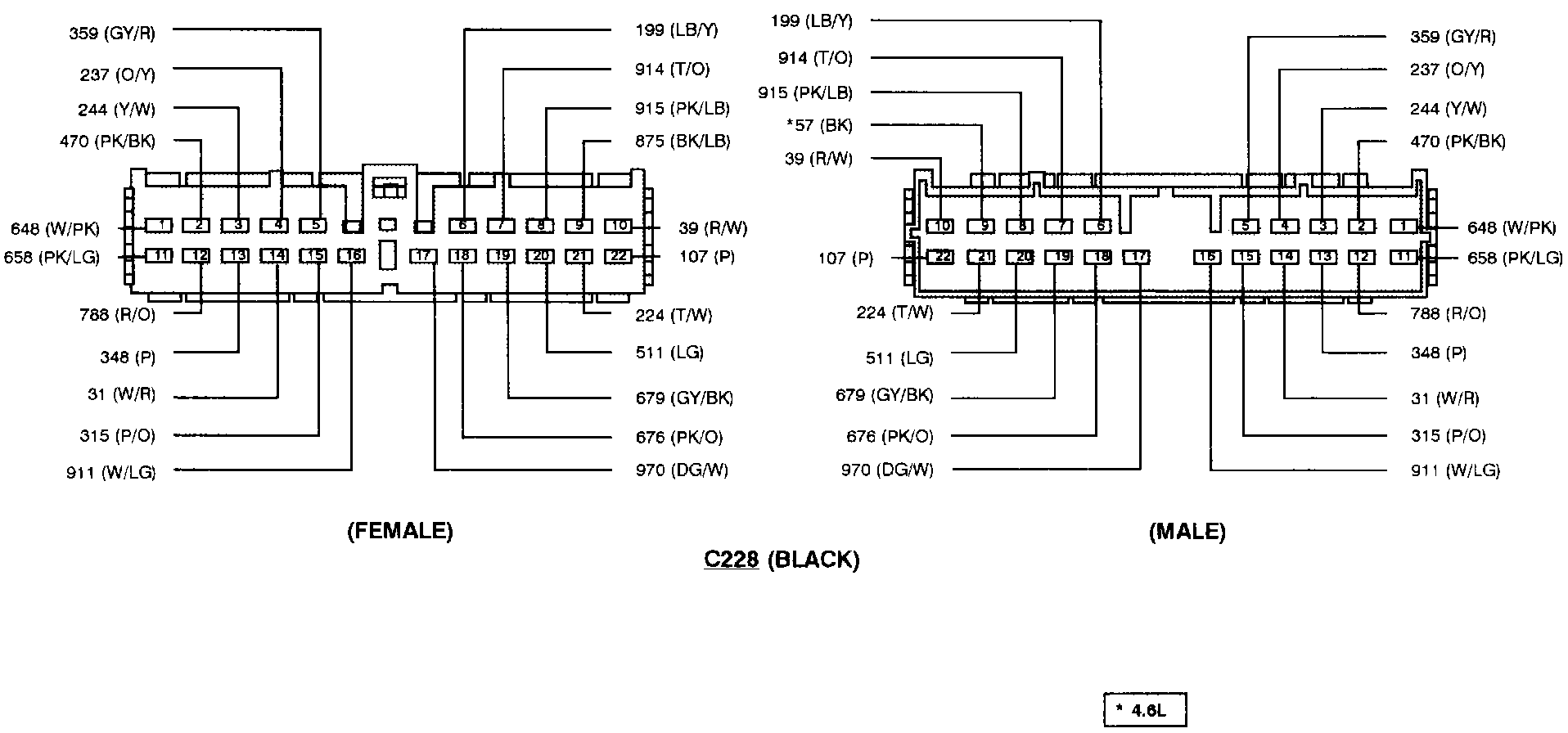

In-Line Connector Faces - C228:
