Mercury
>>
1997
>>
Cougar/XR7 V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp Relay
Headlamp Relay

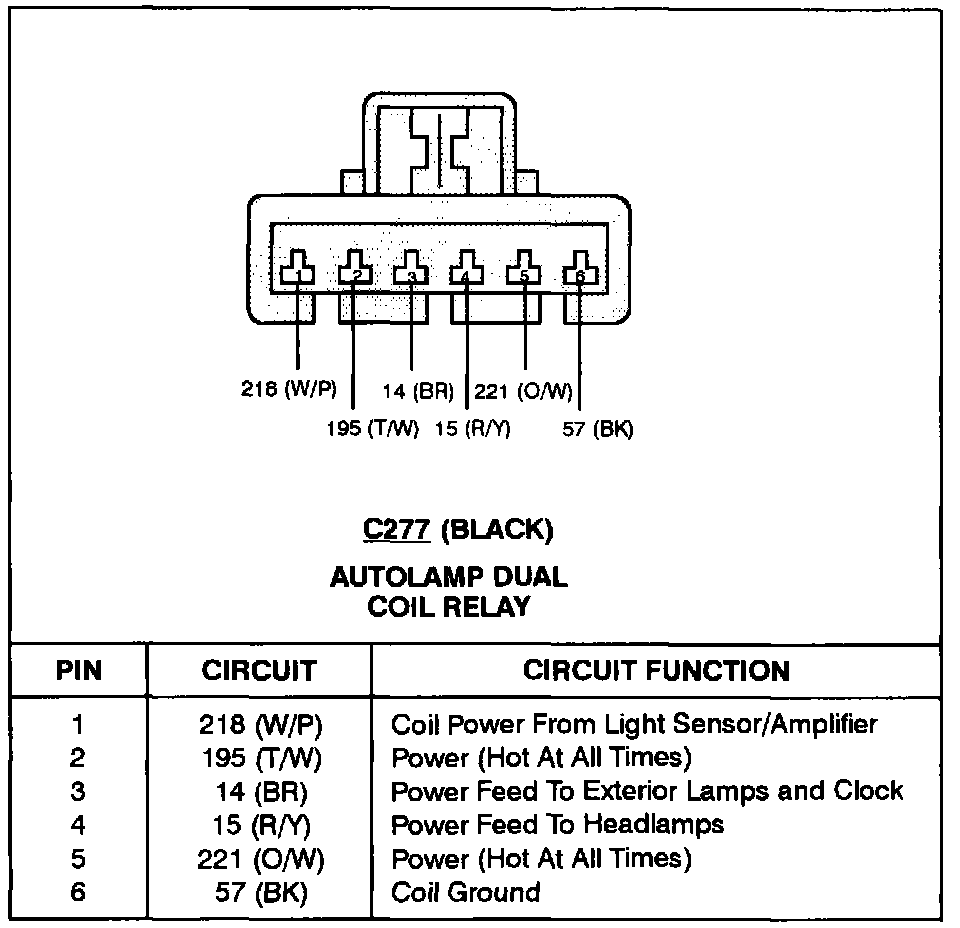

Autolamp Dual Coil Relay:
