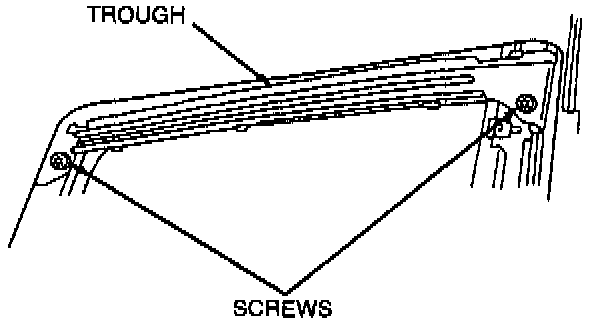

Trough Assembly
REMOVAL1. Remove the roof opening glass.
2. Remove RH and LH trough retaining screws and remove trough.
INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten trough retaining screws to 1-1.5 Nm (9-13 Lb-In).
1. Remove the roof opening glass.
2. Remove RH and LH trough retaining screws and remove trough.
INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten trough retaining screws to 1-1.5 Nm (9-13 Lb-In).
