Mercury
>>
1995
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>
Multi-Function Switch Connector Views
Multi-Function Switch Connector Views

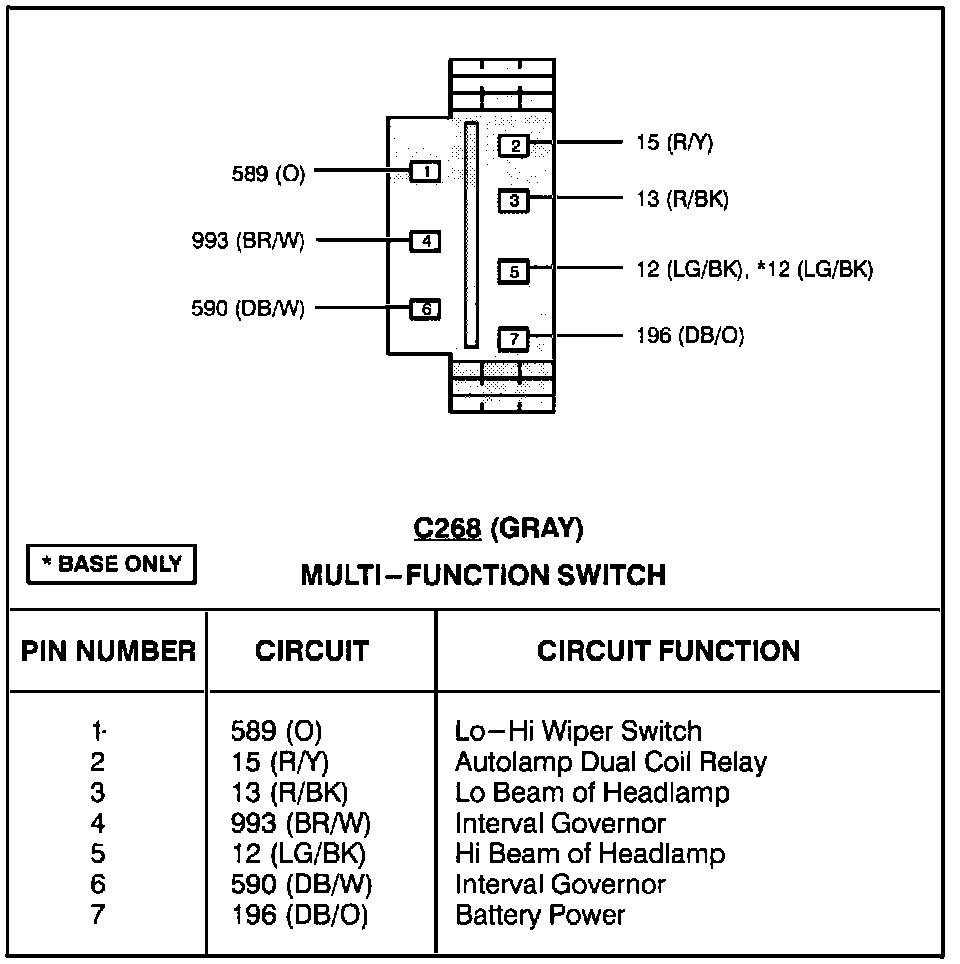

Multi-Function Switch (C268):

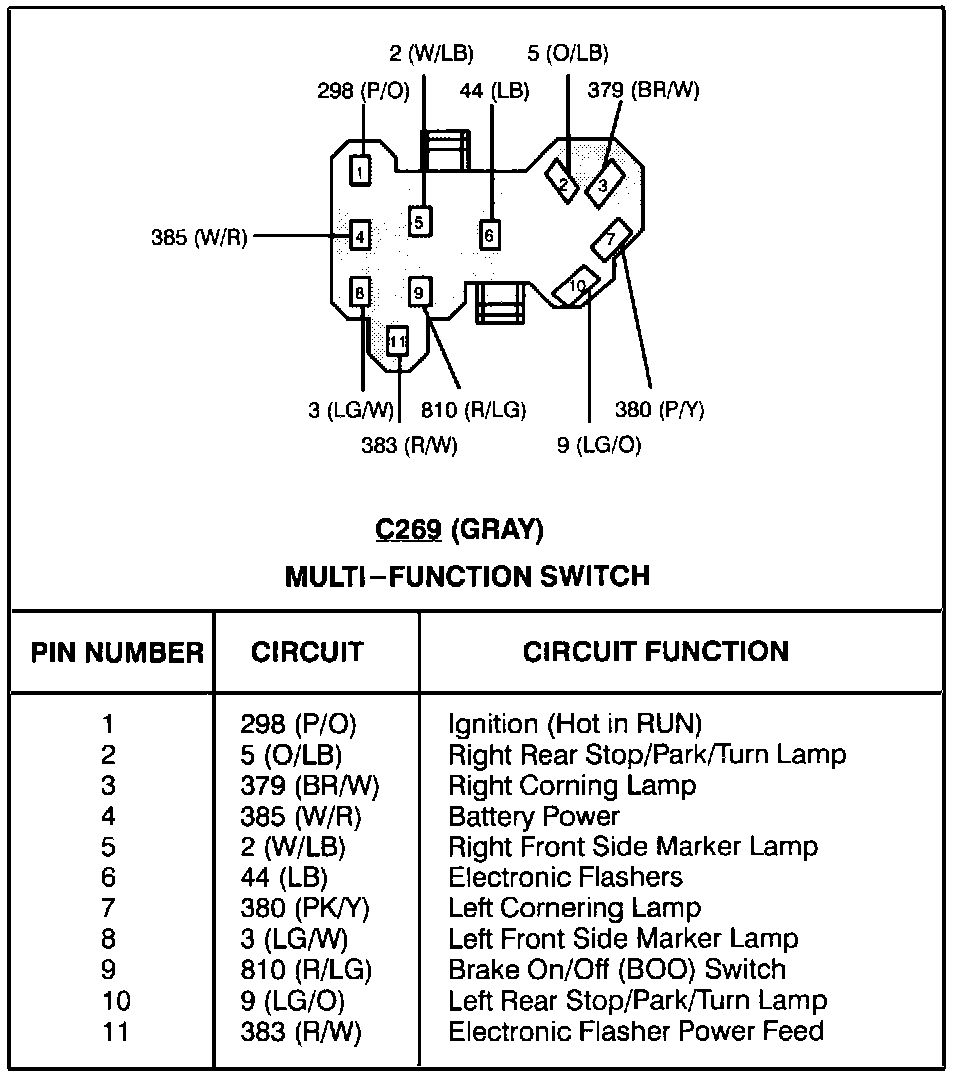

Multi-Function Switch (C269):
