Home
>>
Mercury
>>
1994
>>
Topaz L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

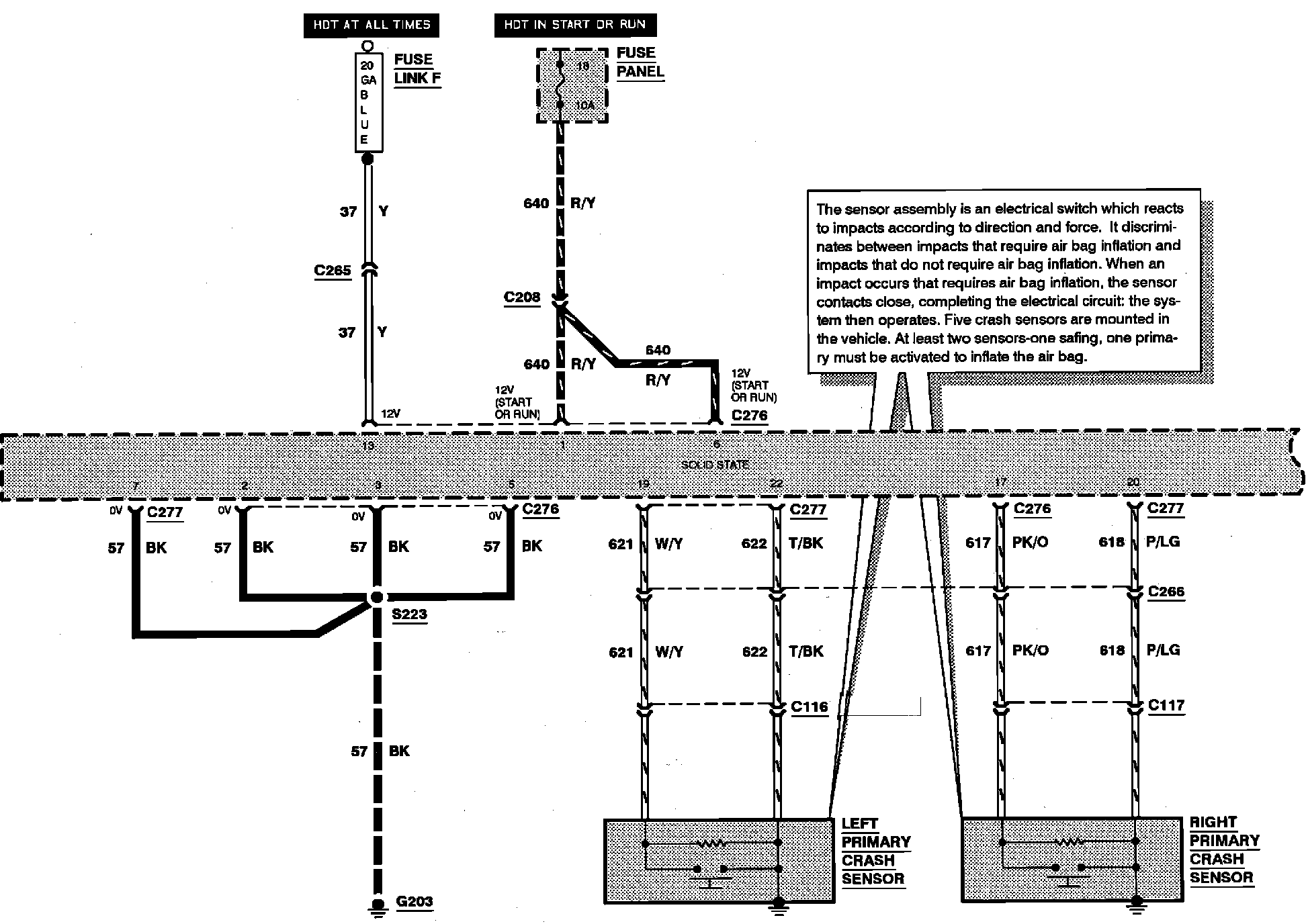

Air Bag Restraint System:

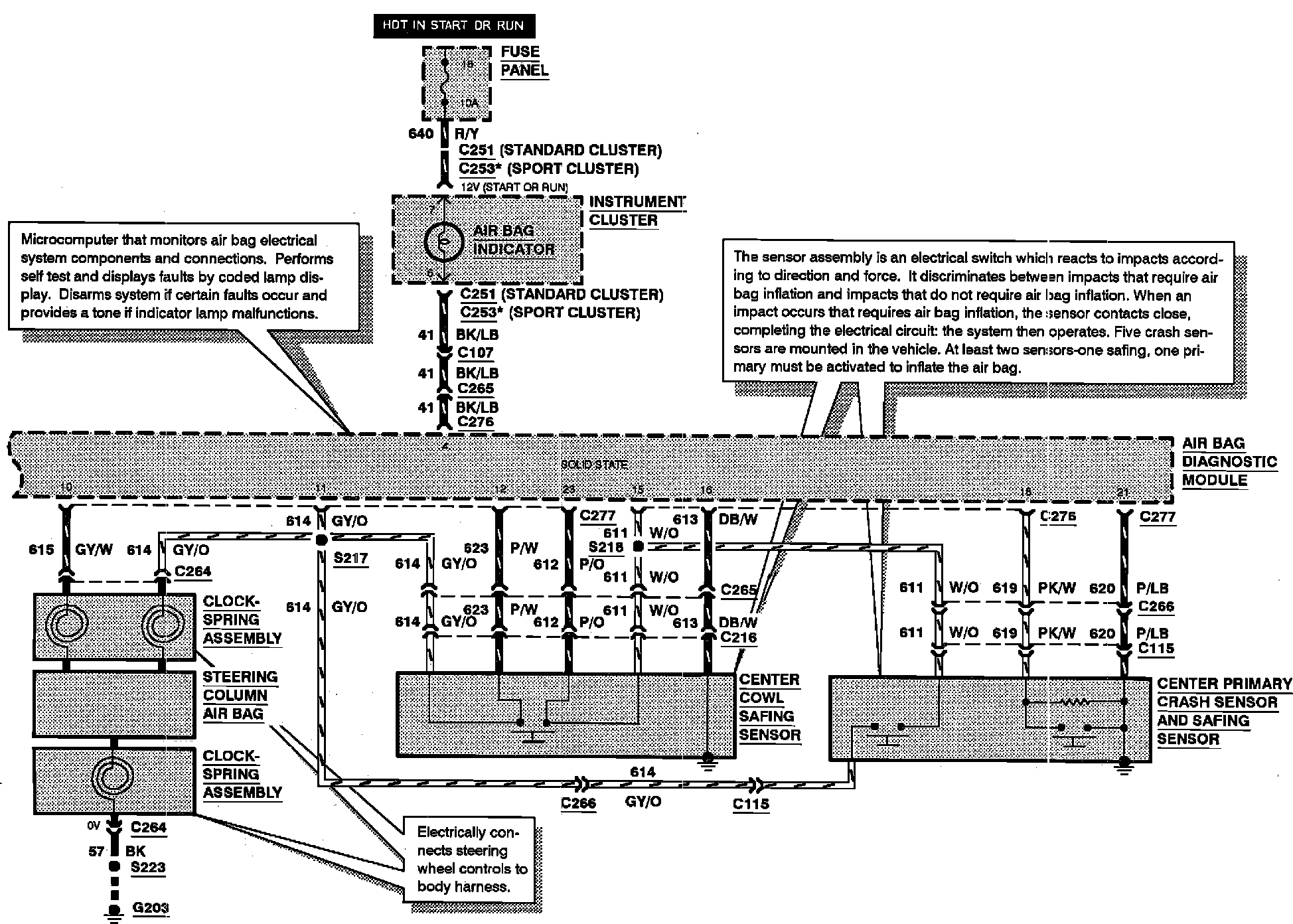

Air Bag Restraint System:
