Integrated Control Relay Module
>>
Diagrams
>>
Connector Views
Connector Views

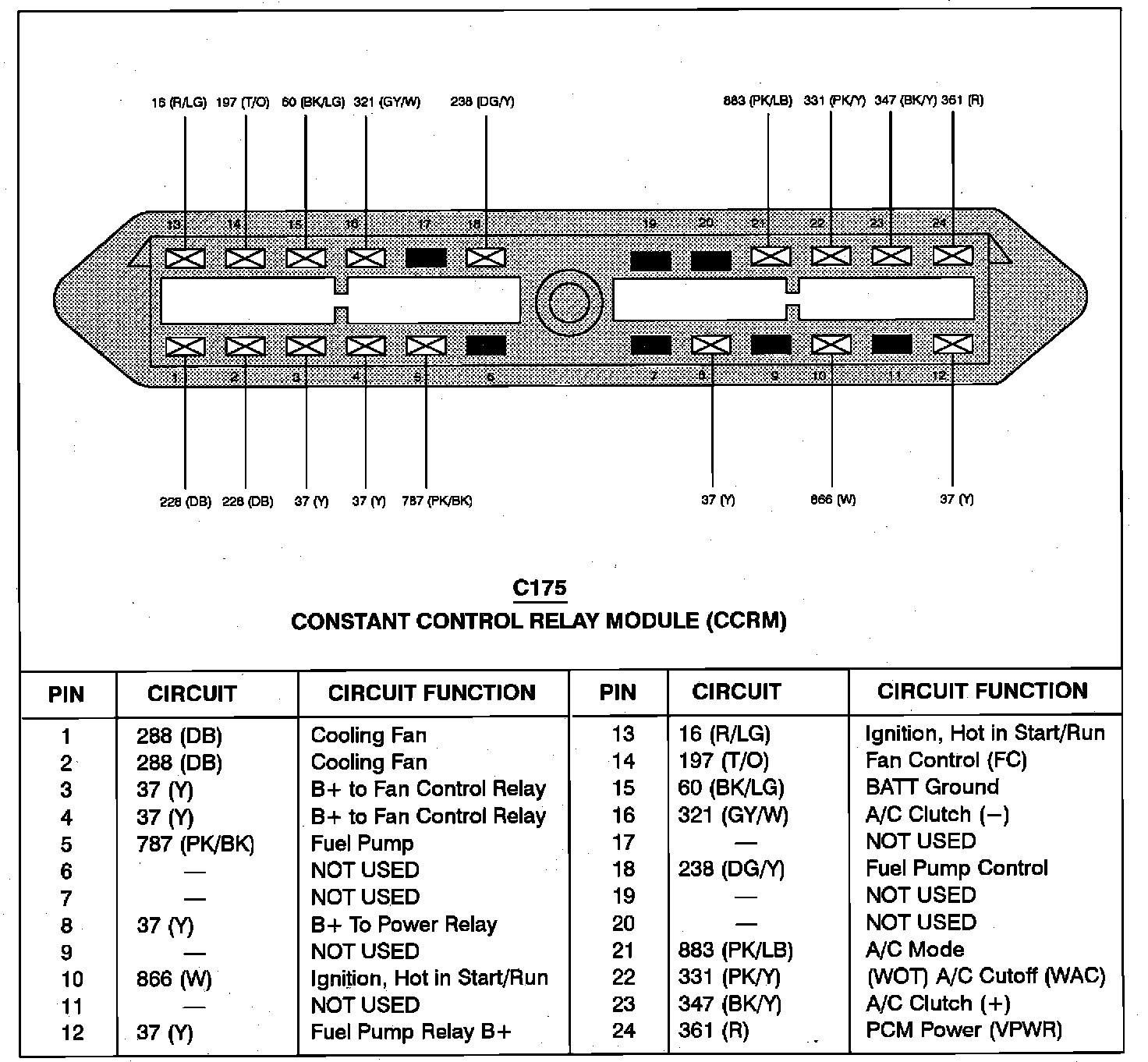

Constant Control Relay Module (CCRM):
