Home >> Mercury >> 1994 >> Topaz L4-140 2.3L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Grounds >> G300 >> 4 Door - Power Windows

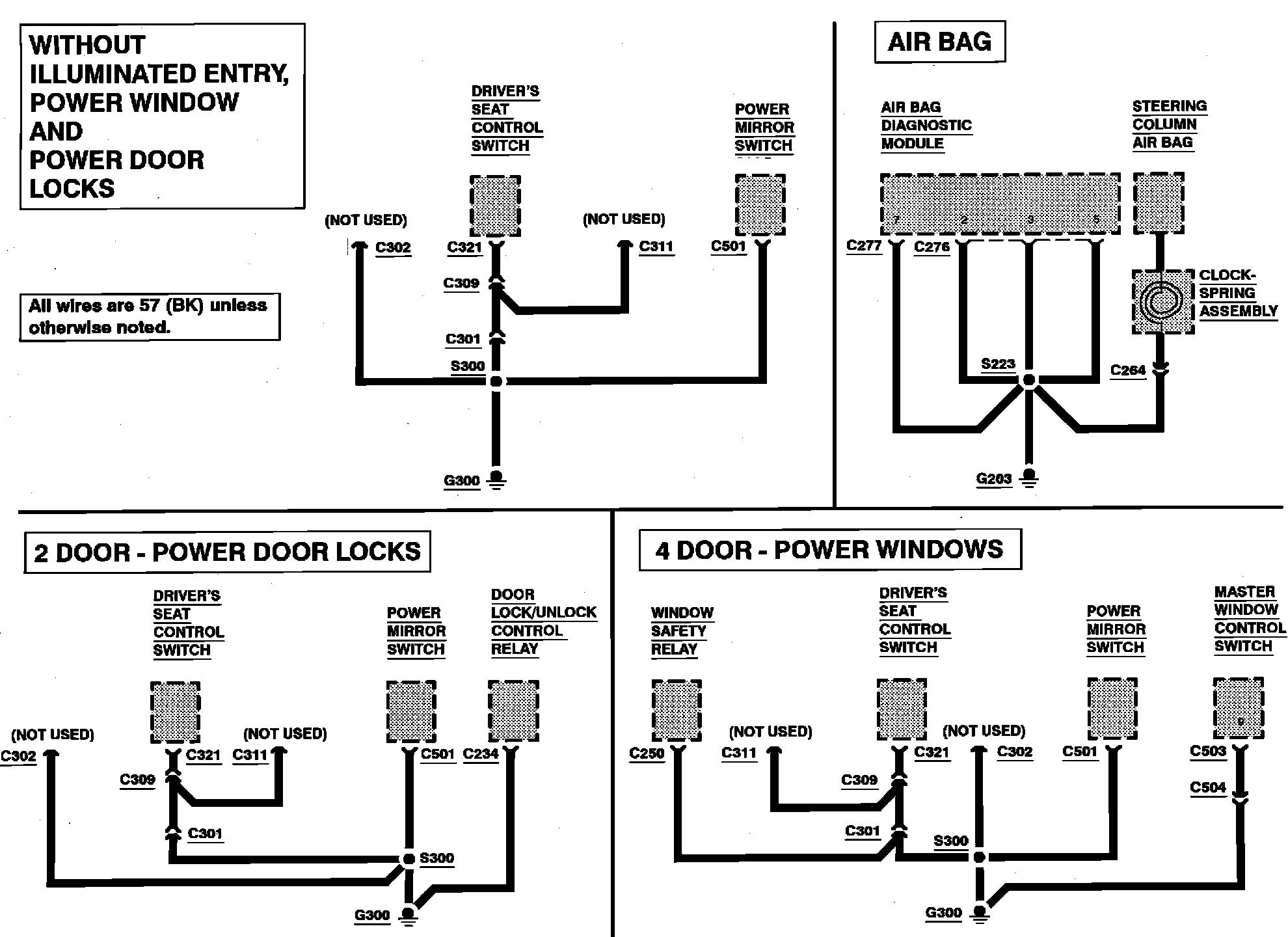

4 Door - Power Windows

Grounds:
