Home
>>
Mercury
>>
1994
>>
Topaz L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>

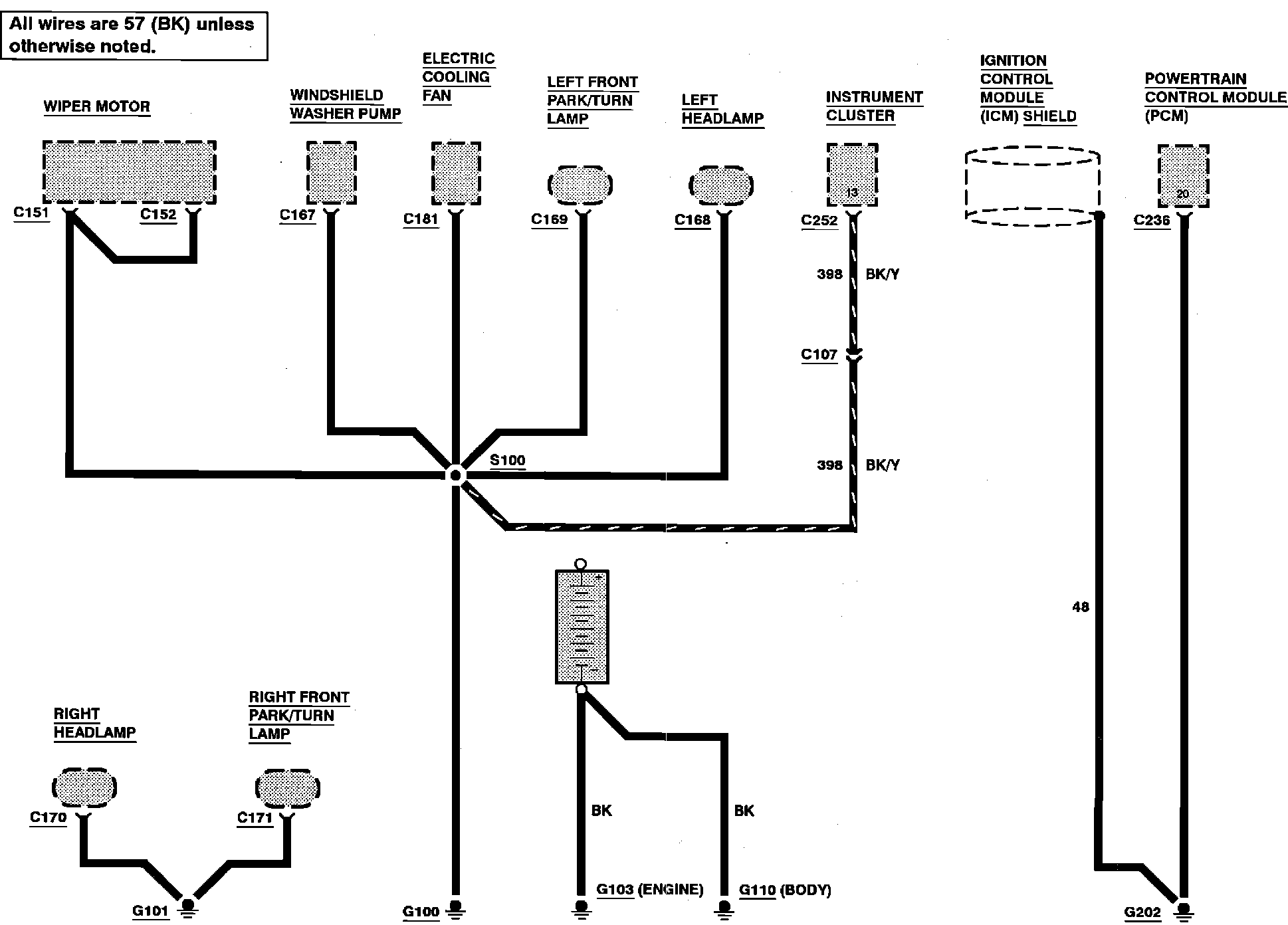

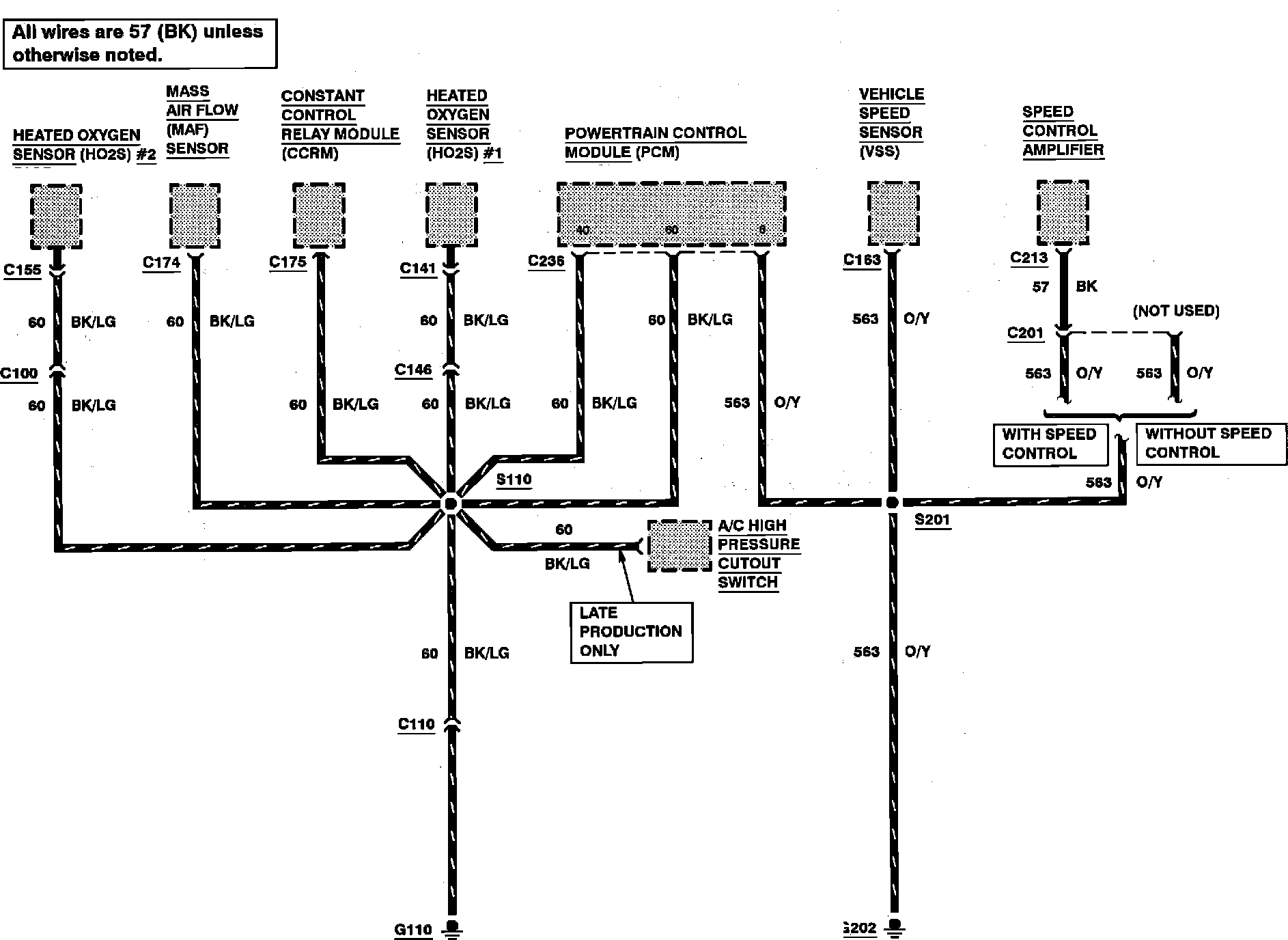

Grounds
>>
G110
G110
Grounds:
Grounds:
Grounds:
