Mercury
>>
1994
>>
Topaz L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

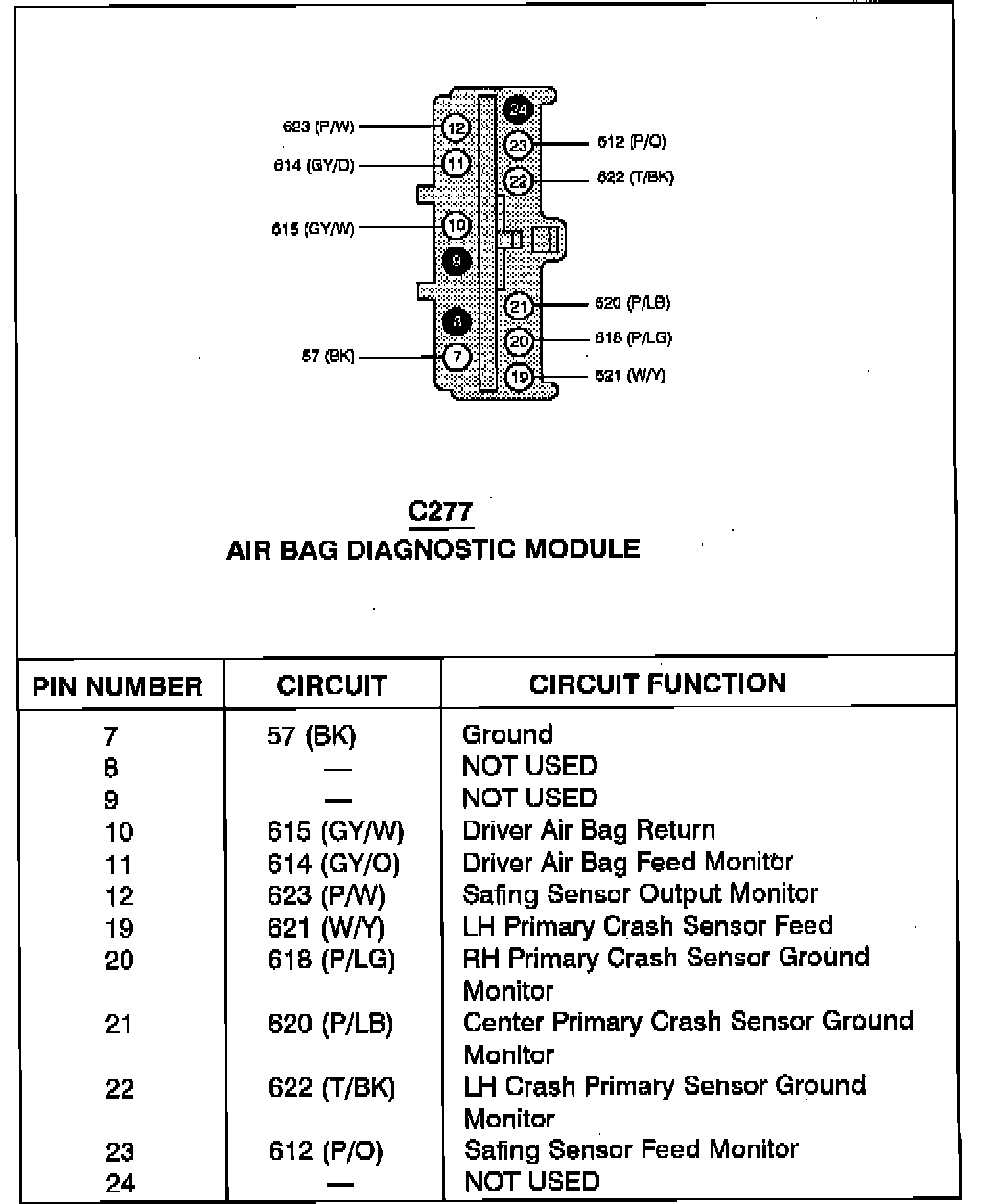

Air Bag Diagnostic Module:
Air Bag Diagnostic Module:
