Home
>>
Mercury
>>
1994
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

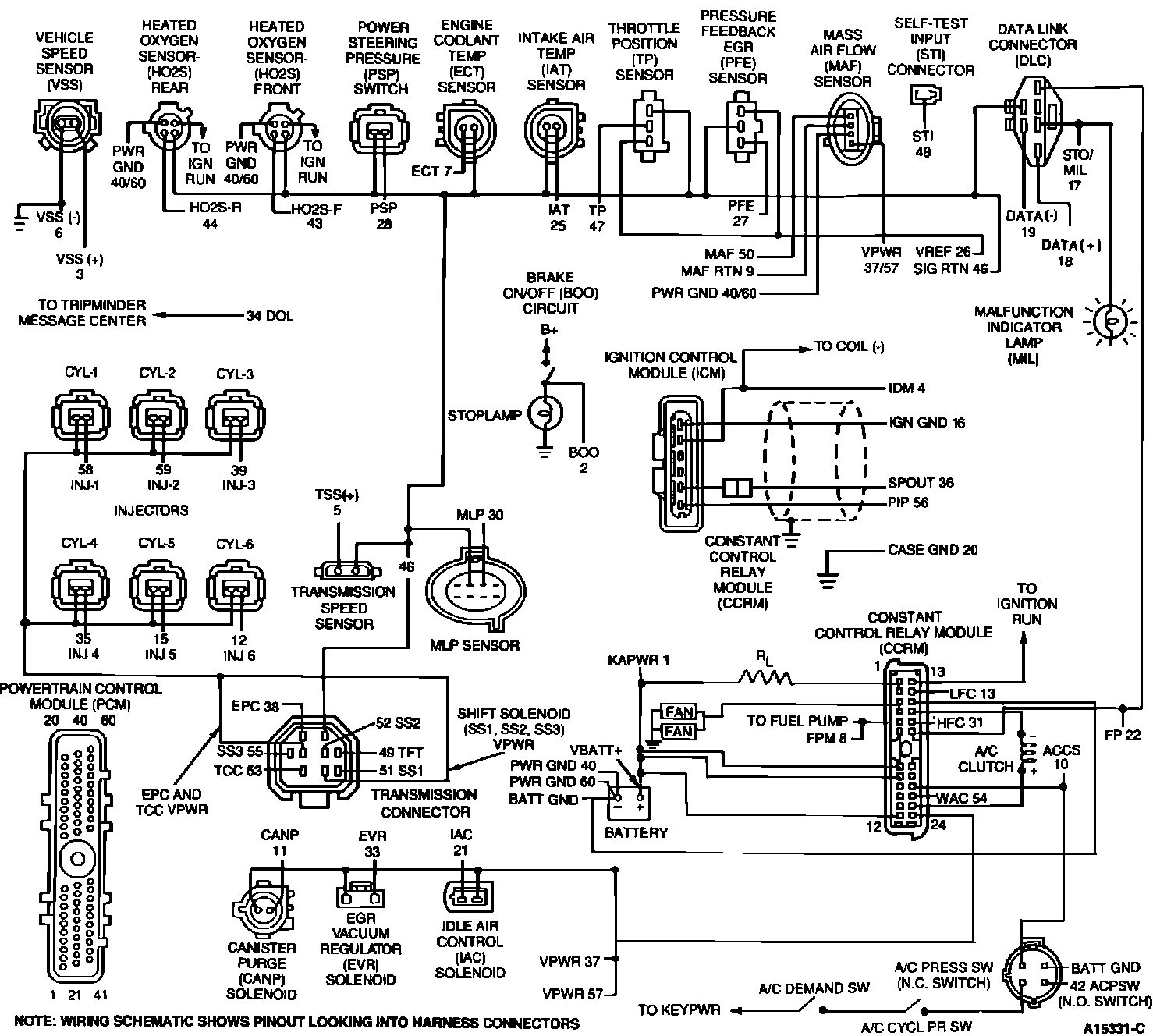

Electrical Schematic:
Vehicle Speed Sensor:
