Mercury
>>
1994
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Combination Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

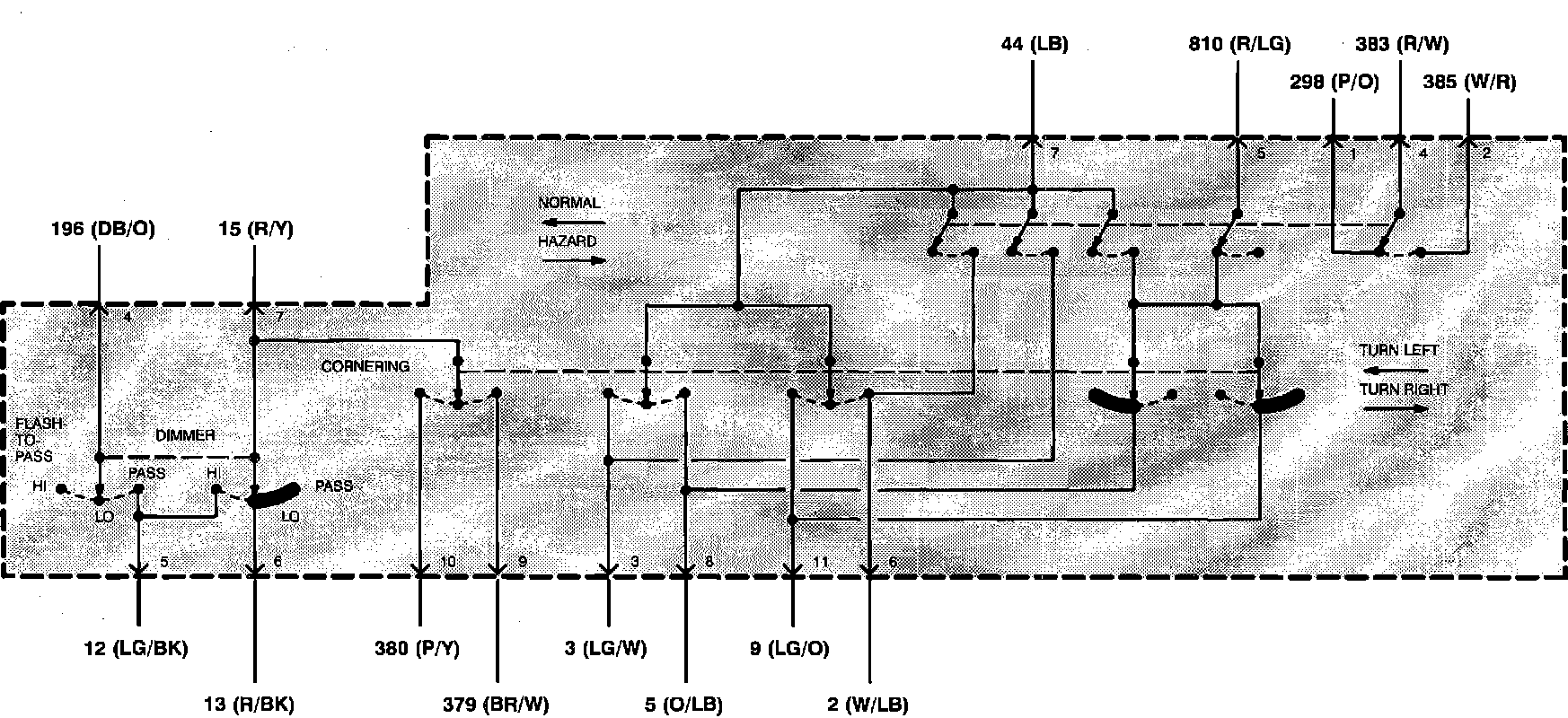

SCHEMATIC
Schematic:
Schematic:
