Mercury
>>
1994
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>

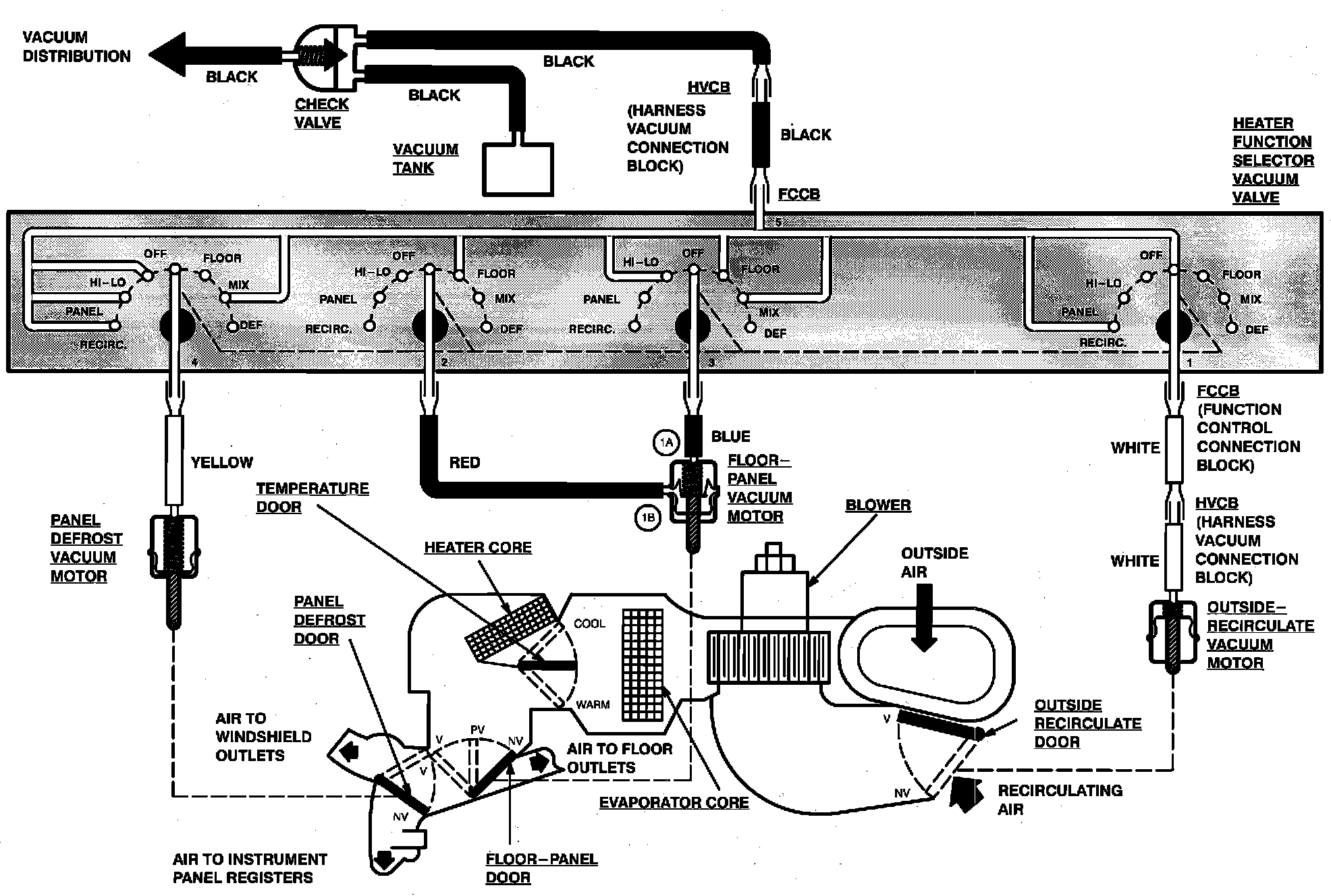

Vacuum and Vapor Hose Diagrams
>>
Electronic Climate Control
Electronic Climate Control
Electronic Automatic Temperature Control:
