Cellular Phone
>>
Phone Transceiver
Phone Transceiver

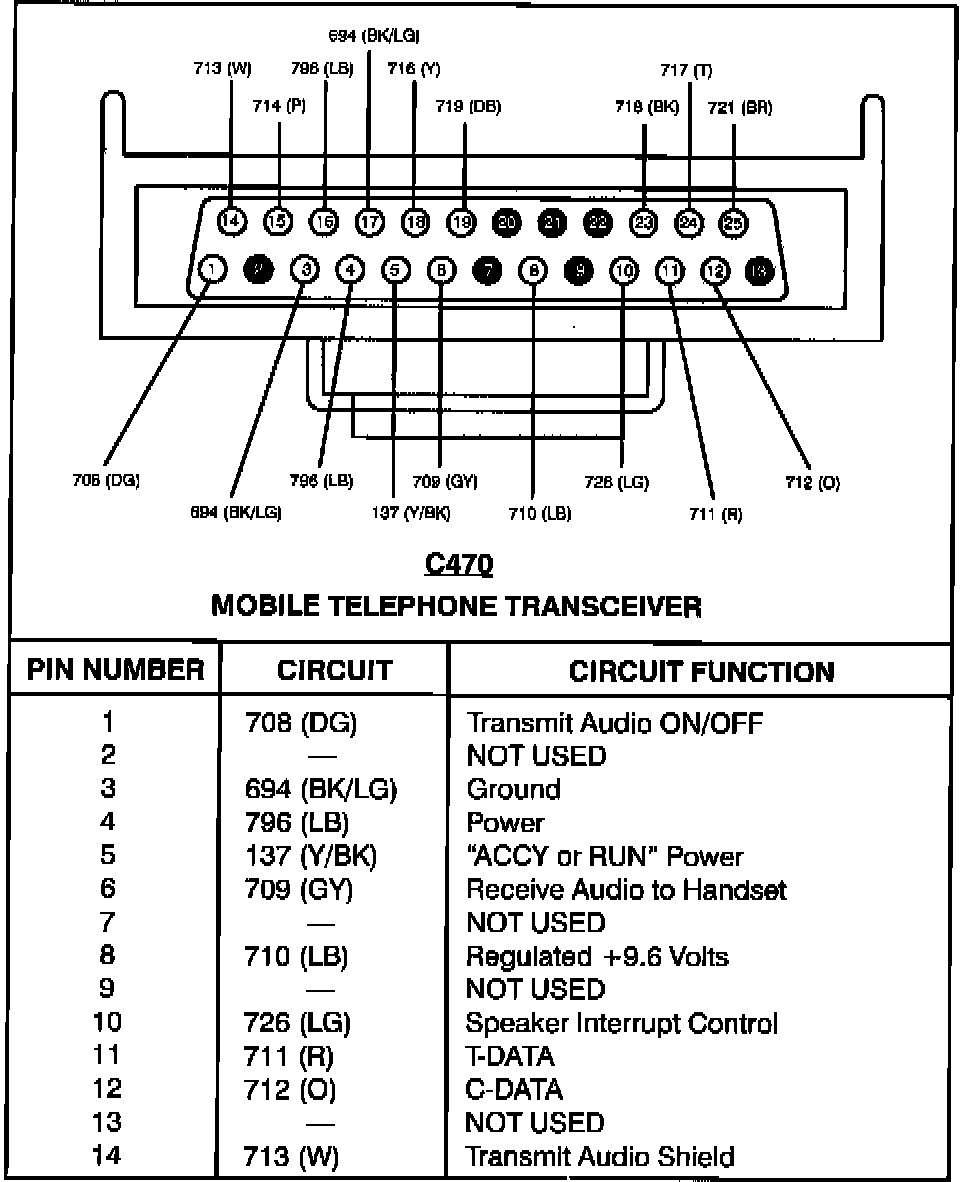

Mobile Telephone Transceiver:

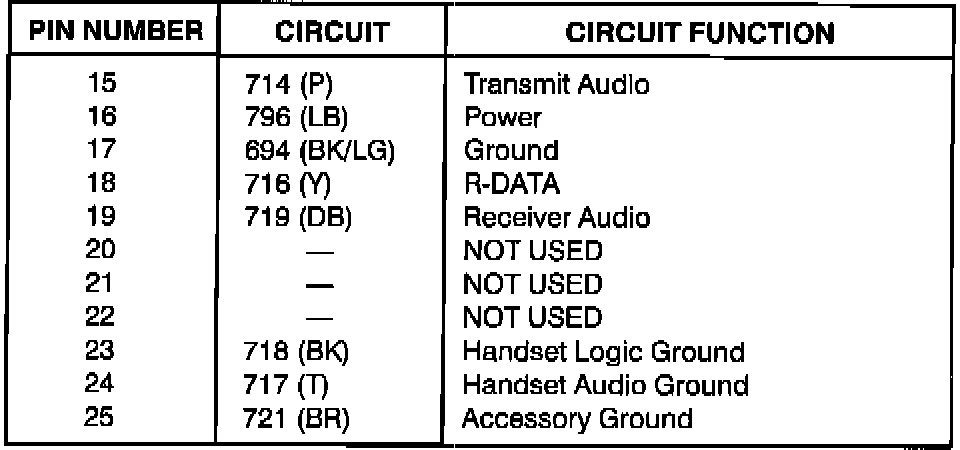

Mobile Telephone Transceiver Pinout Chart:
