Air Door Actuator / Motor, HVAC
>>
Without EATC
Without EATC

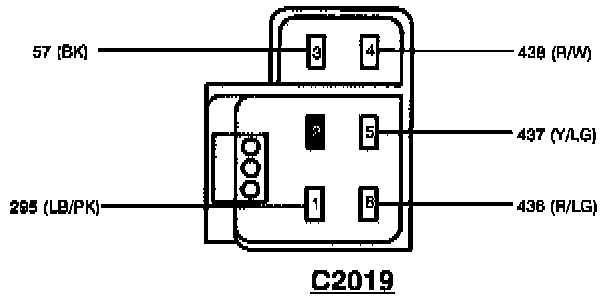

Blend Door Actuator (Without EATC):

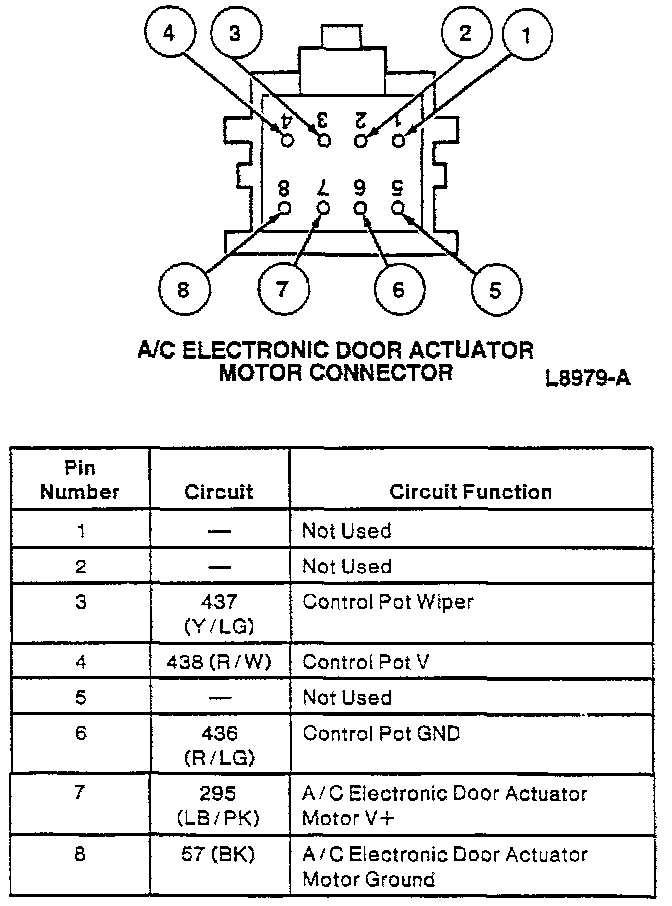

Electronic Door Actuator Motor Connector:
