Electrical Diagrams

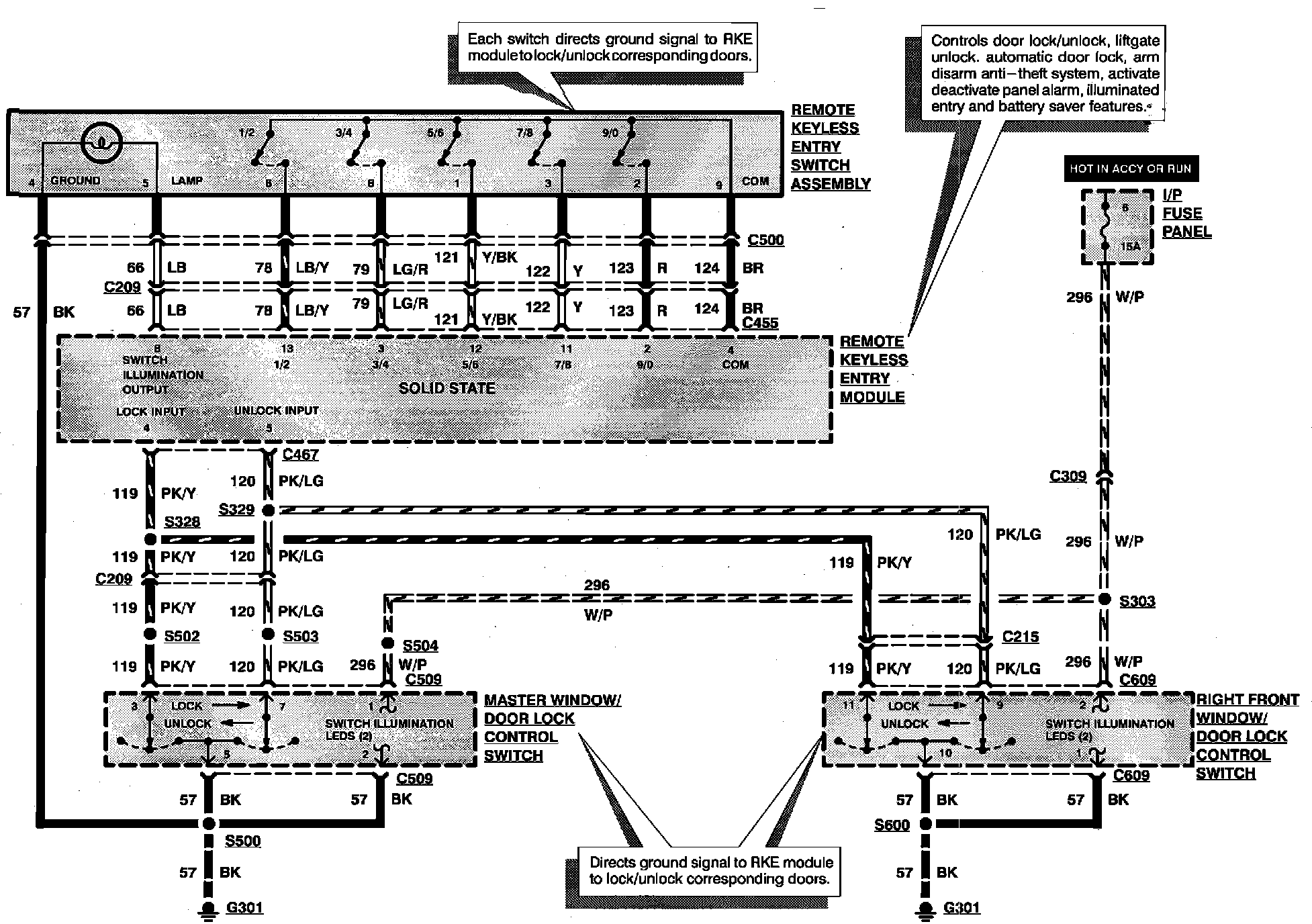

Remote/Keyless Entry:

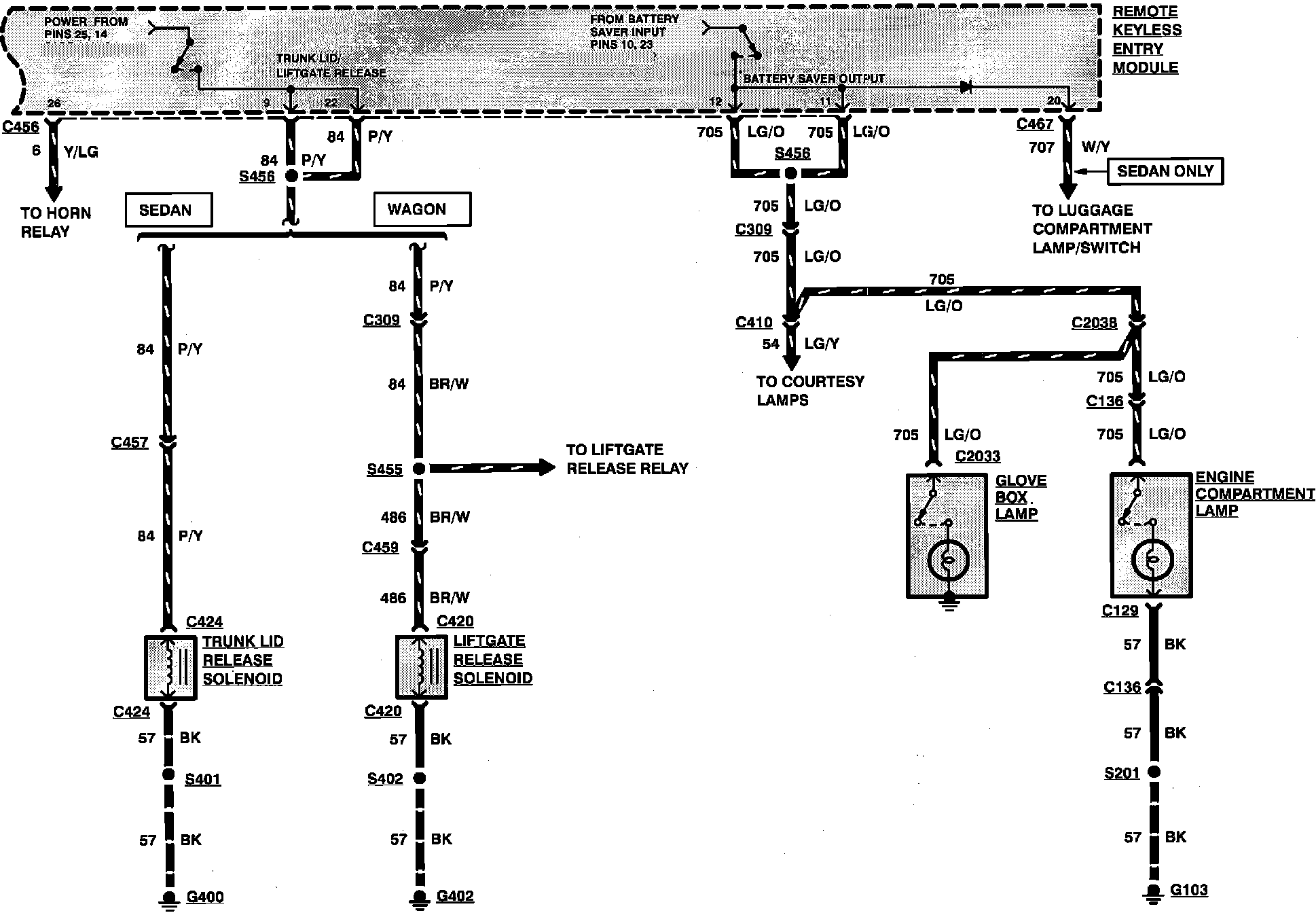

Remote/Keyless Entry:

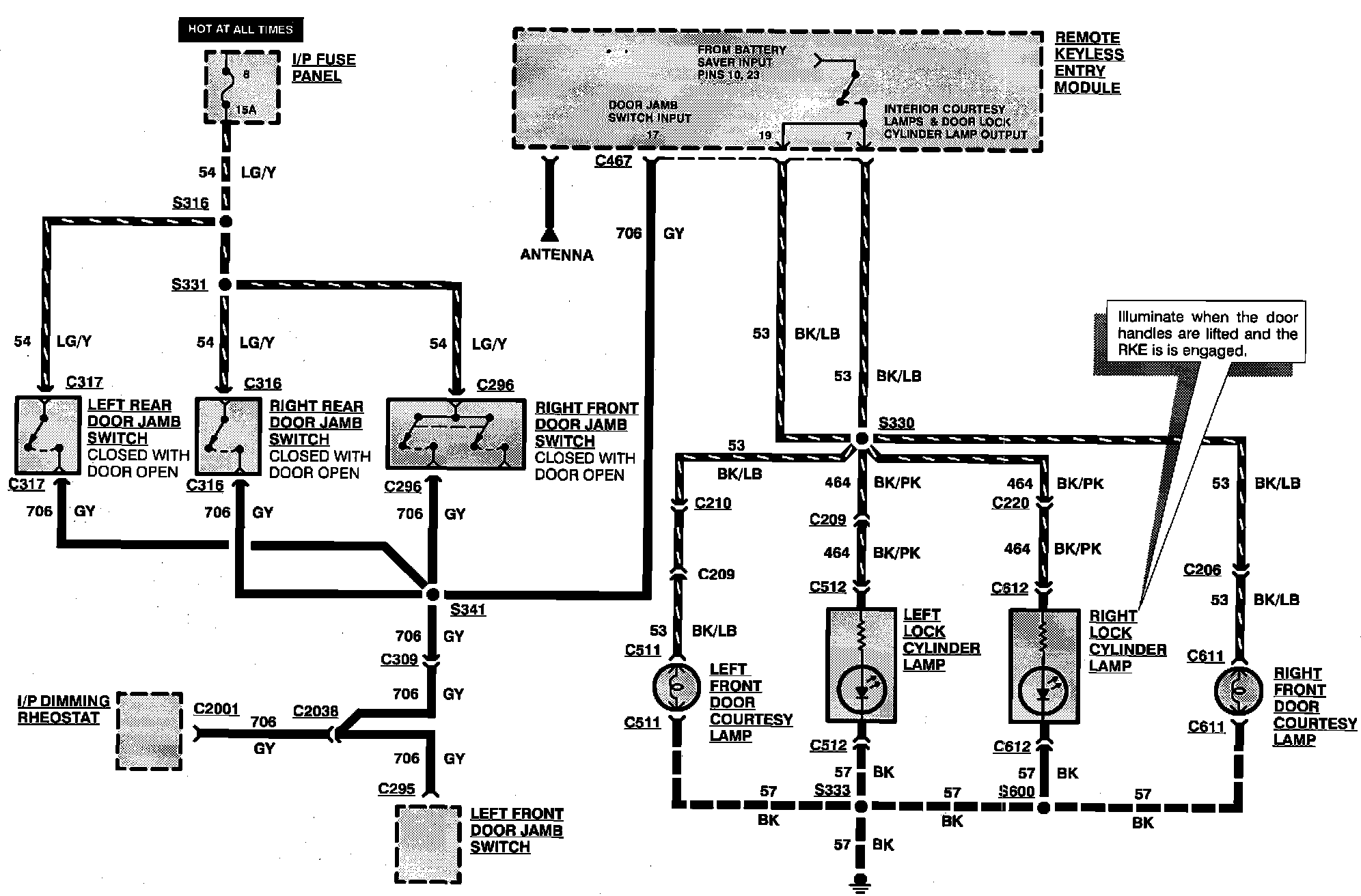

Remote/Keyless Entry:

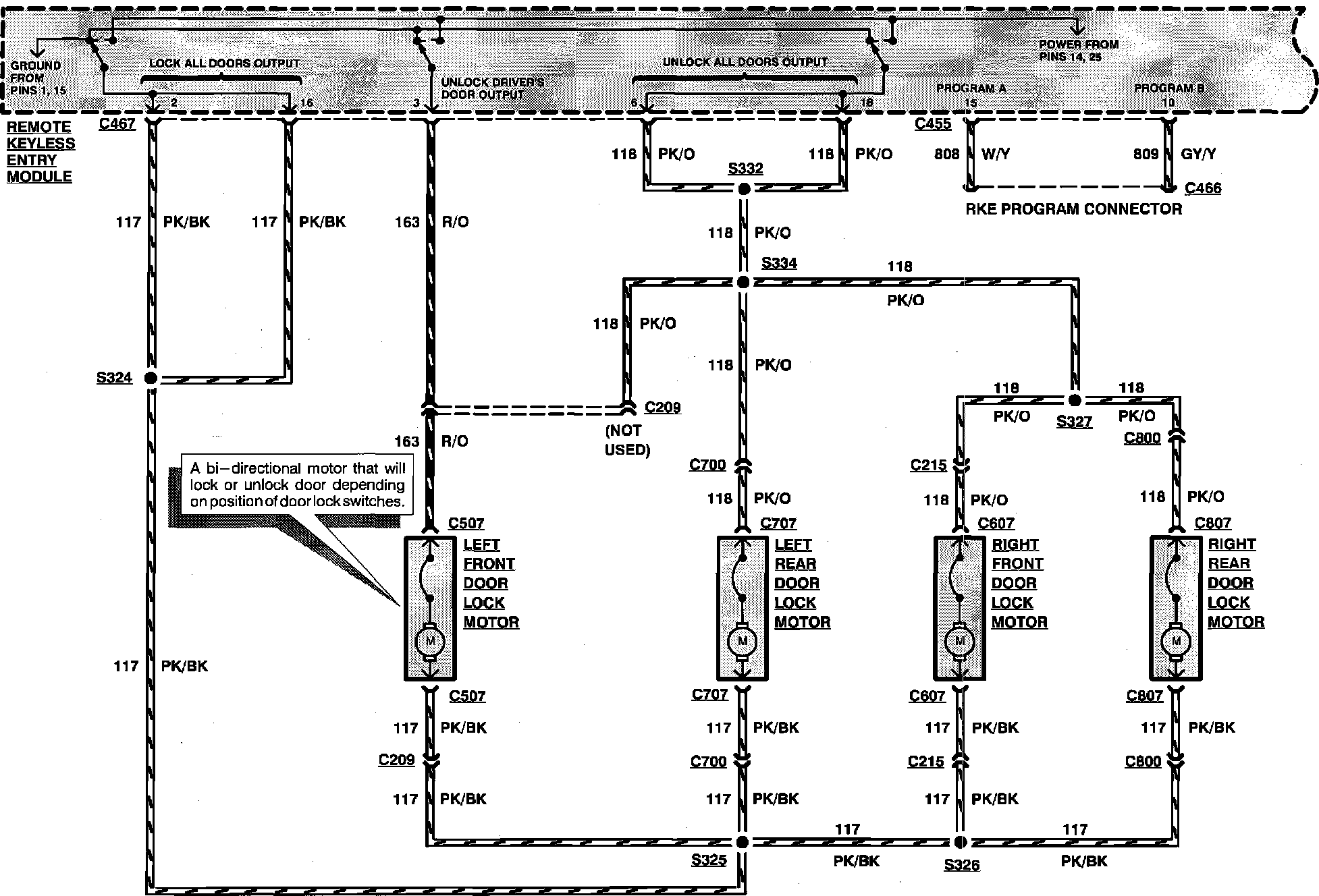

Remote/Keyless Entry:

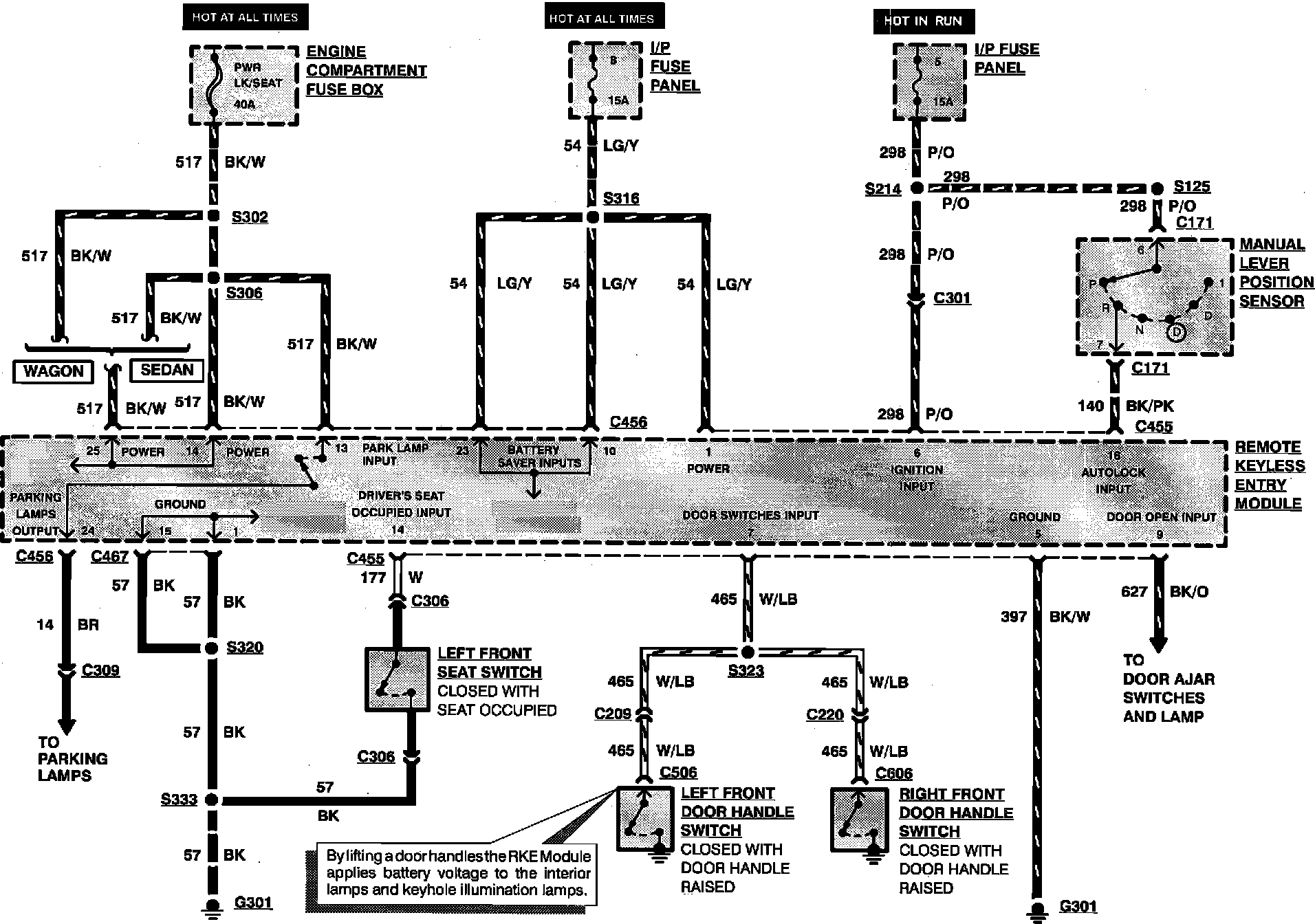

Remote/Keyless Entry:
