Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Grounds >> G103 >> Analog Cluster

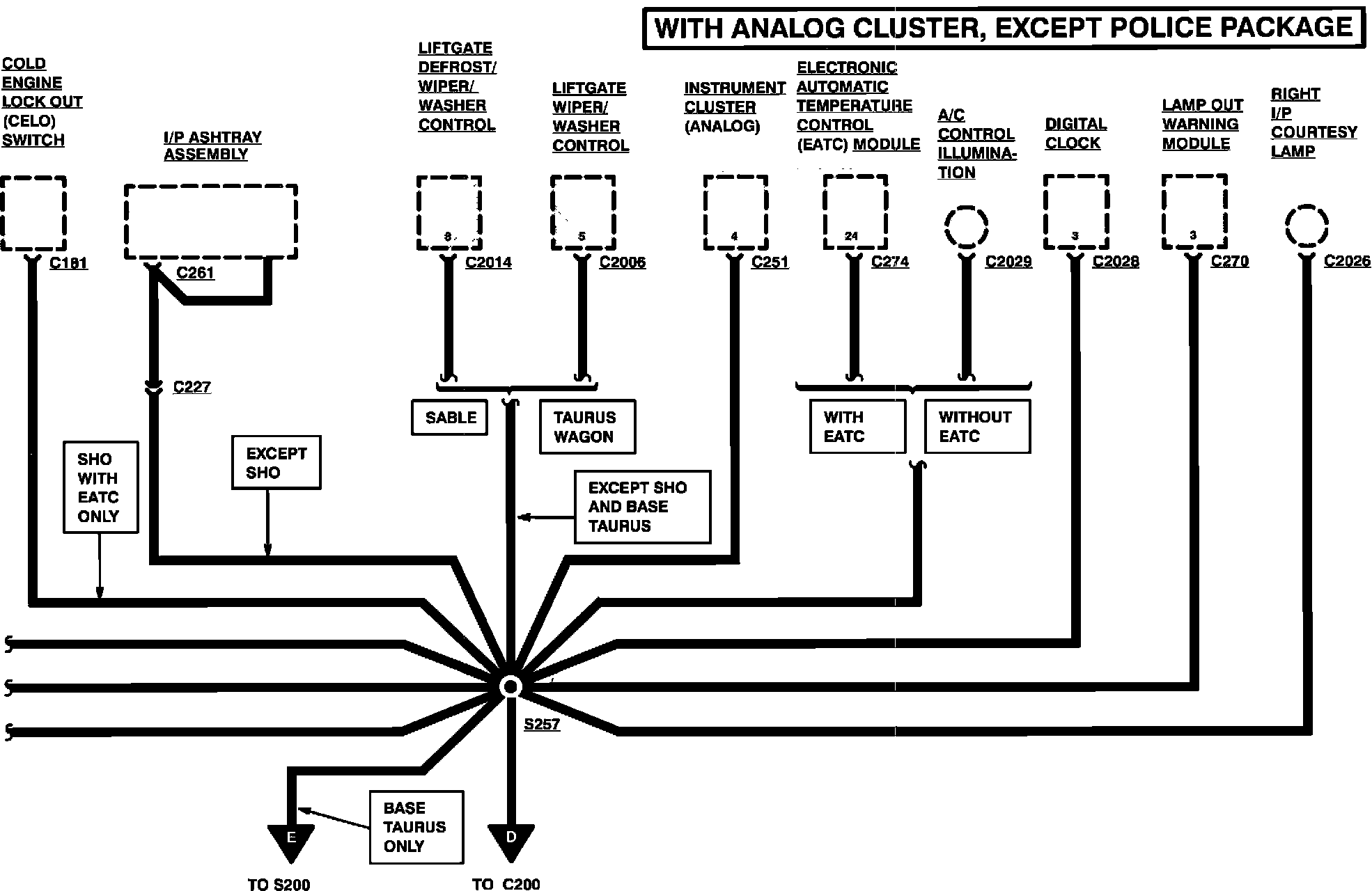

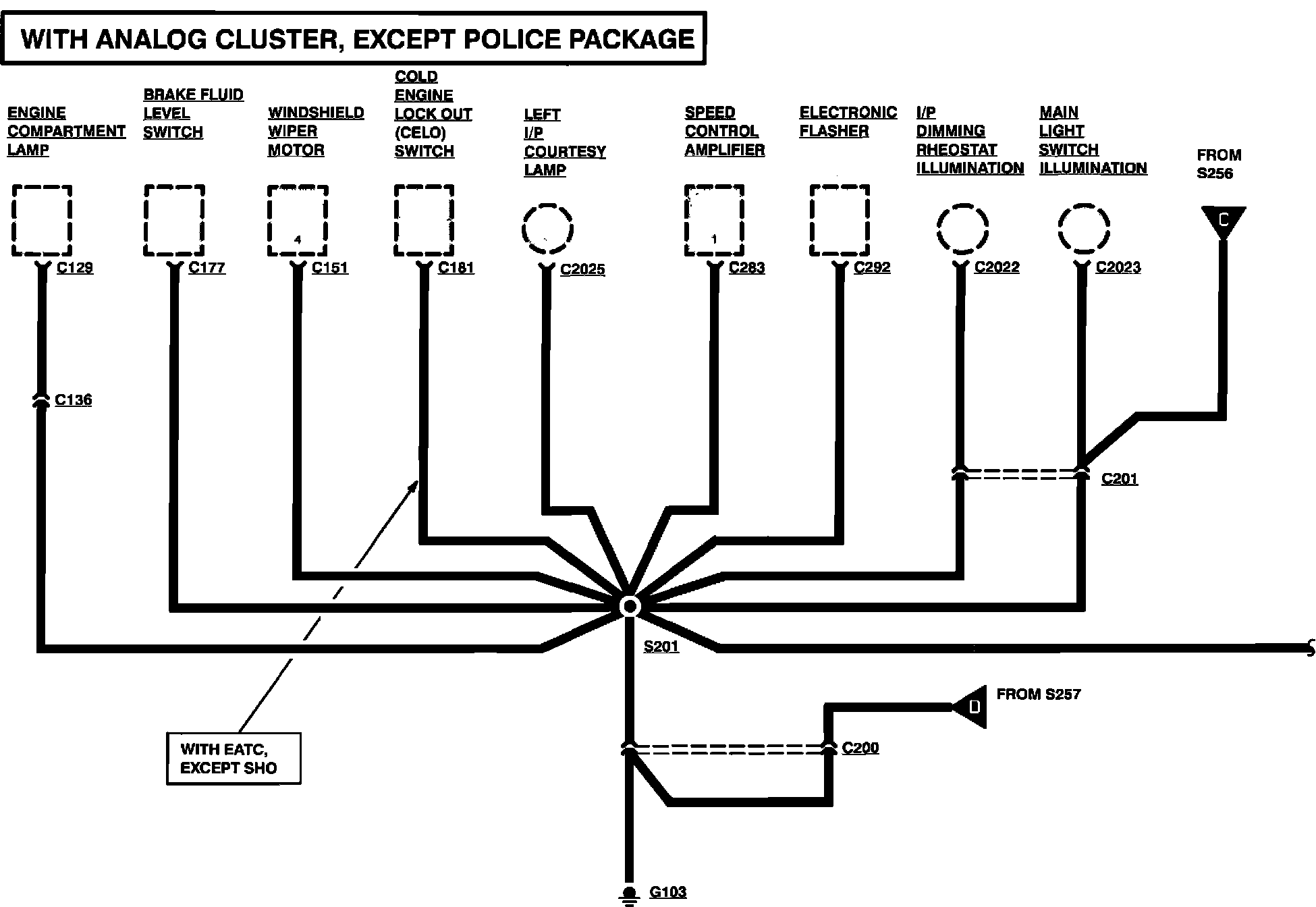

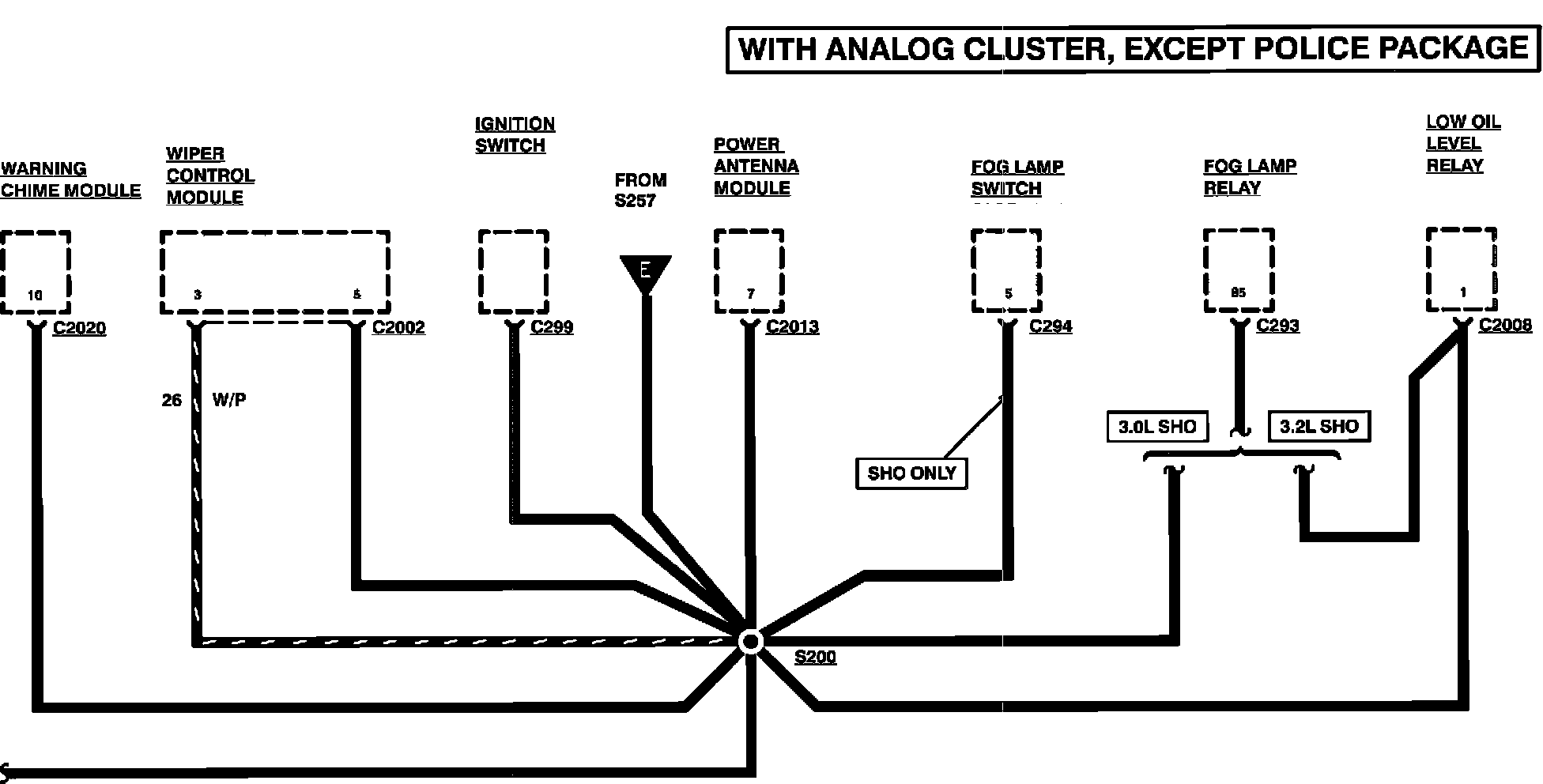

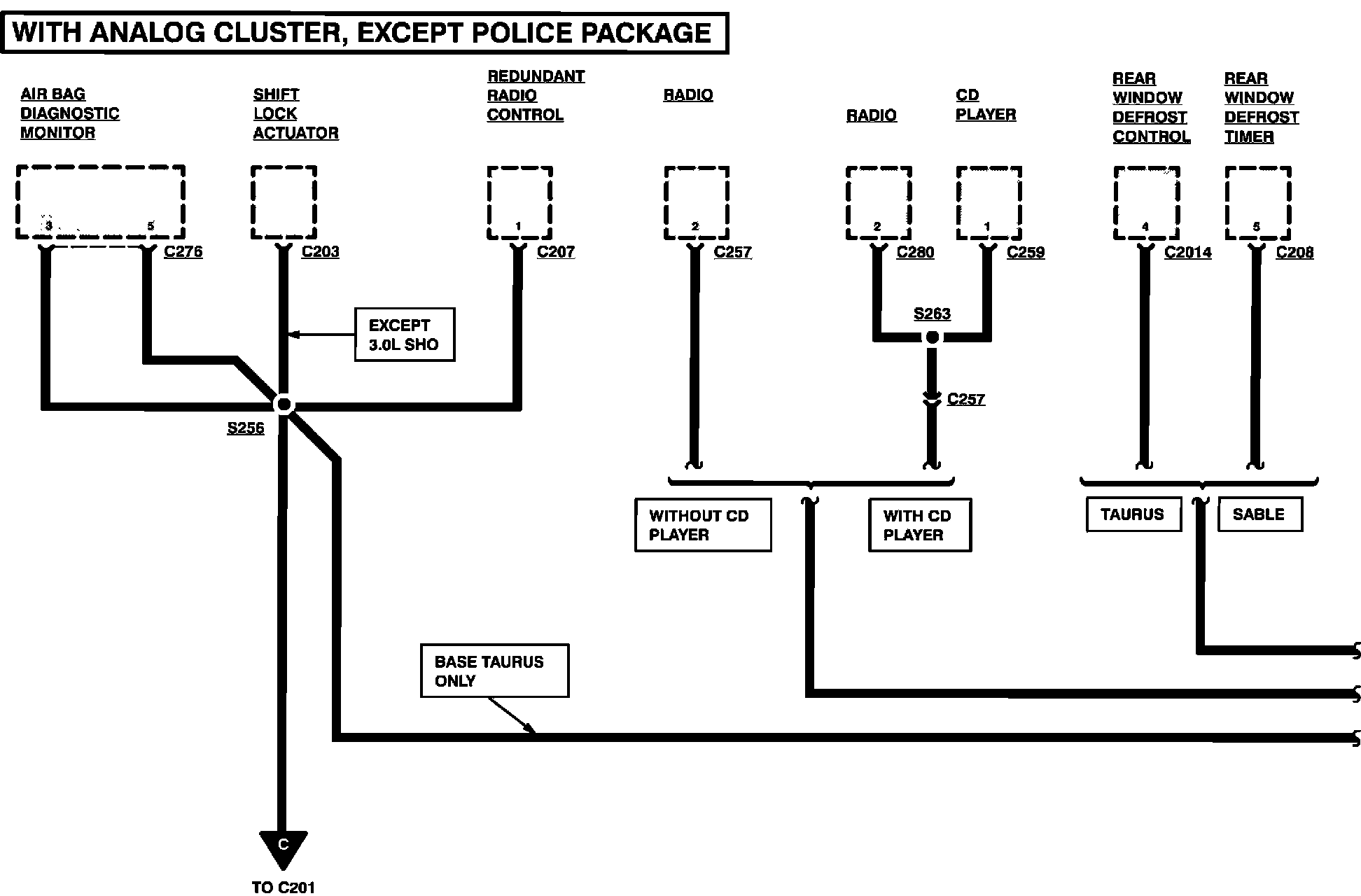

Analog Cluster

Grounds:






Grounds:






Grounds:






Grounds:






Grounds:
