Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Audible Warning Device Control Module >> Diagrams

Audible Warning Device Control Module: Diagrams

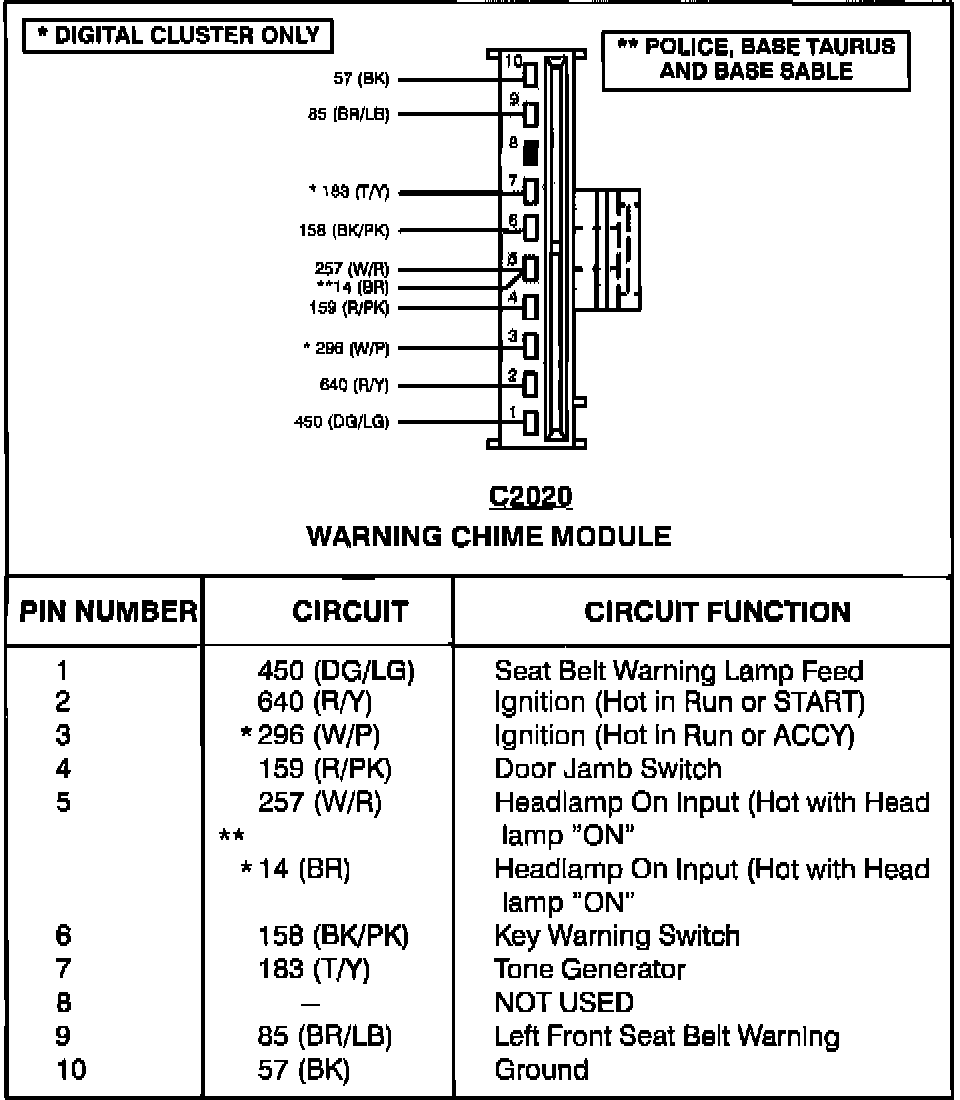

Warning Chime Module:
