FF - Power Steering Pressure (PSP) Switch
>>

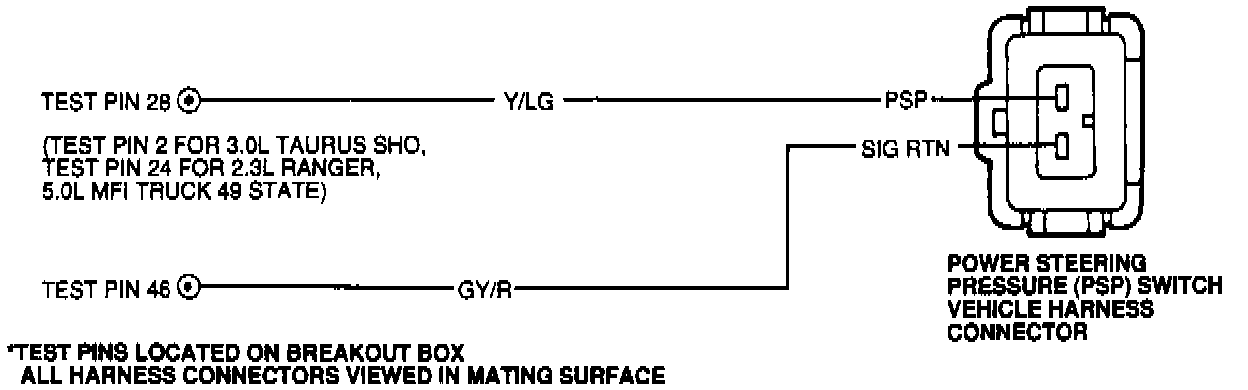

FF - Testing Schematic
FF - Testing Schematic
Testing Schematic:
