Home
>>
Mercury
>>
1994
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

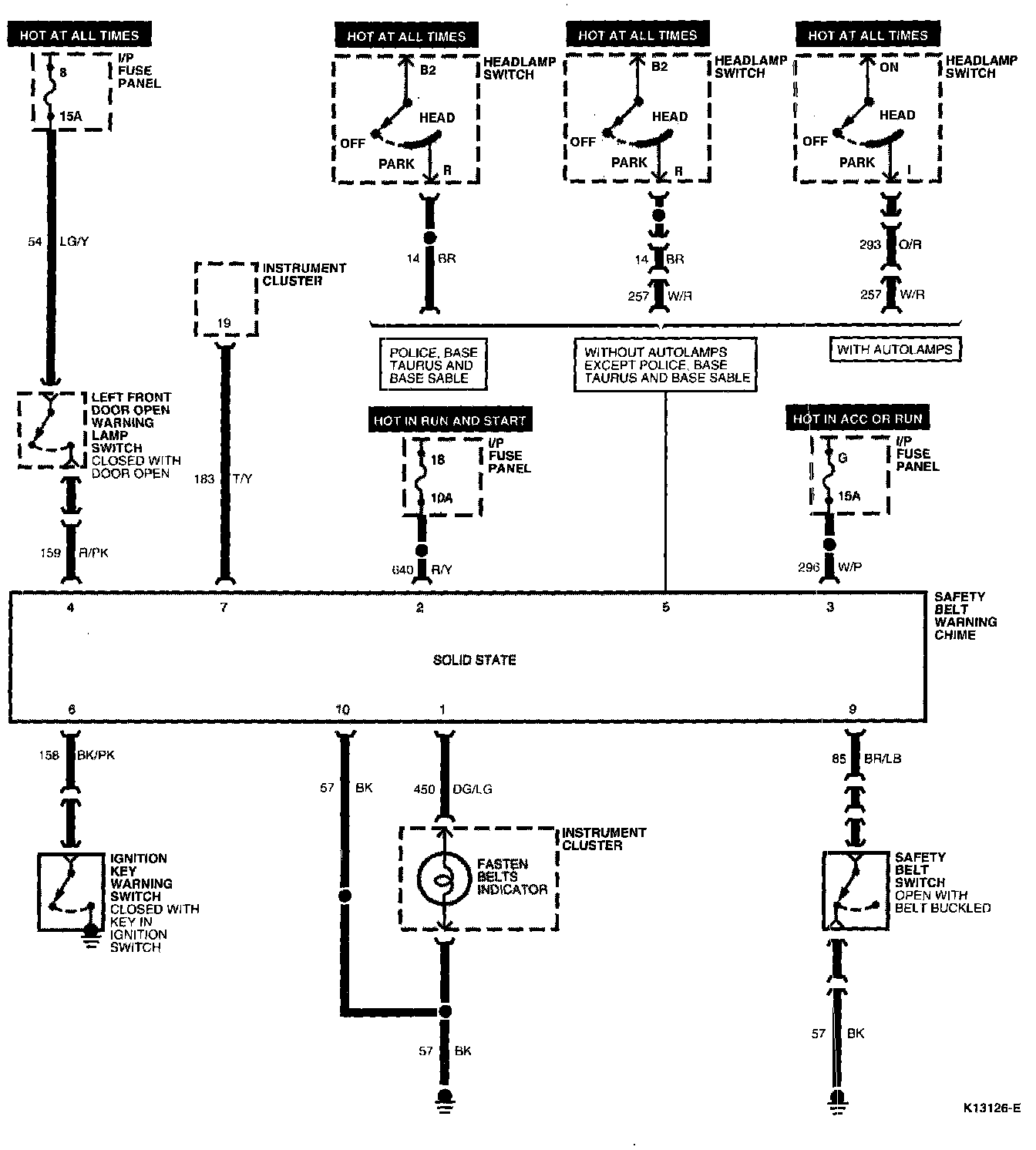

Warning Chime System Schematics
Warning Chime System Schematics
Warning Chime System:
