Suspension Control Module: Diagrams

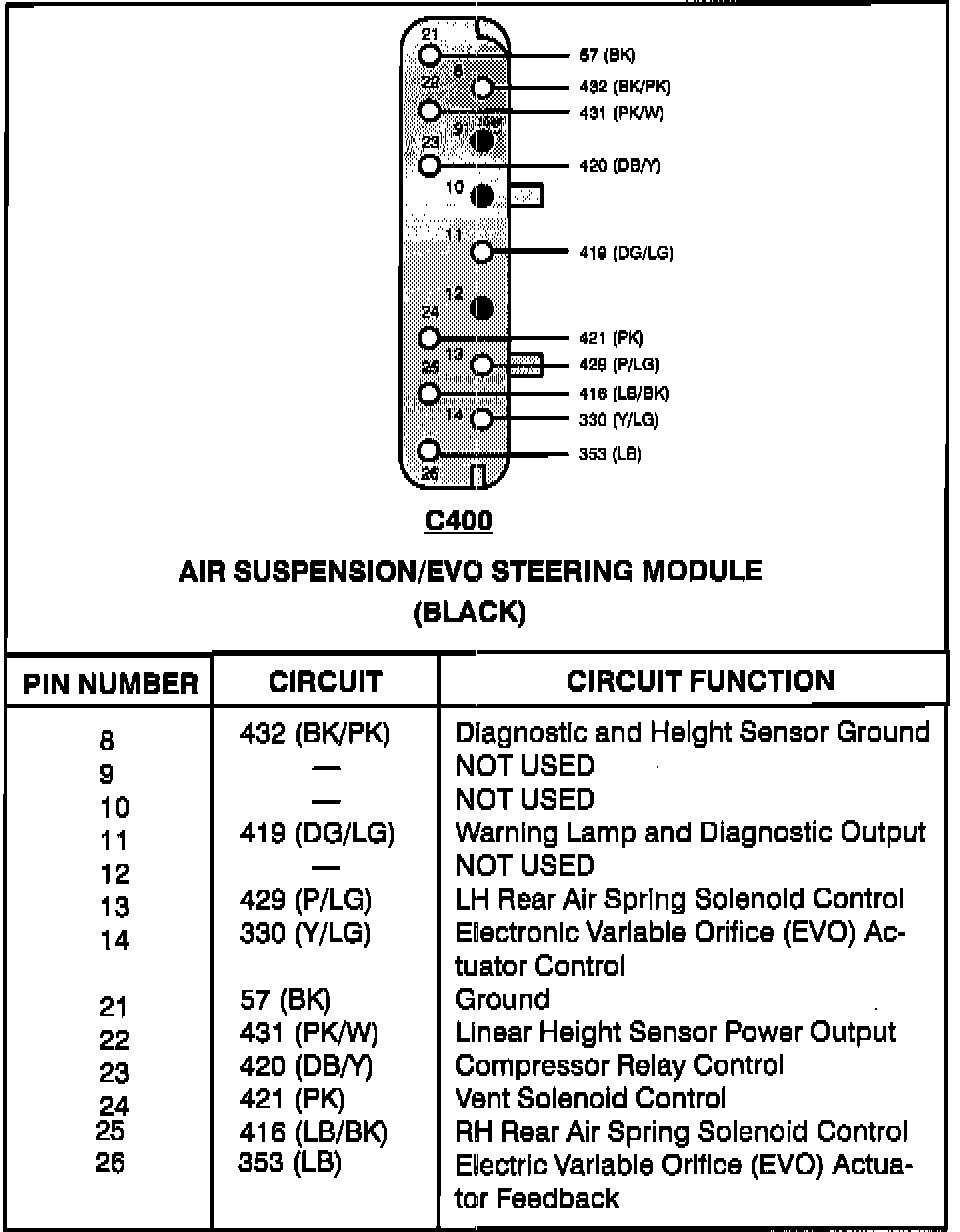

Air Suspension/EVO Steering Module:

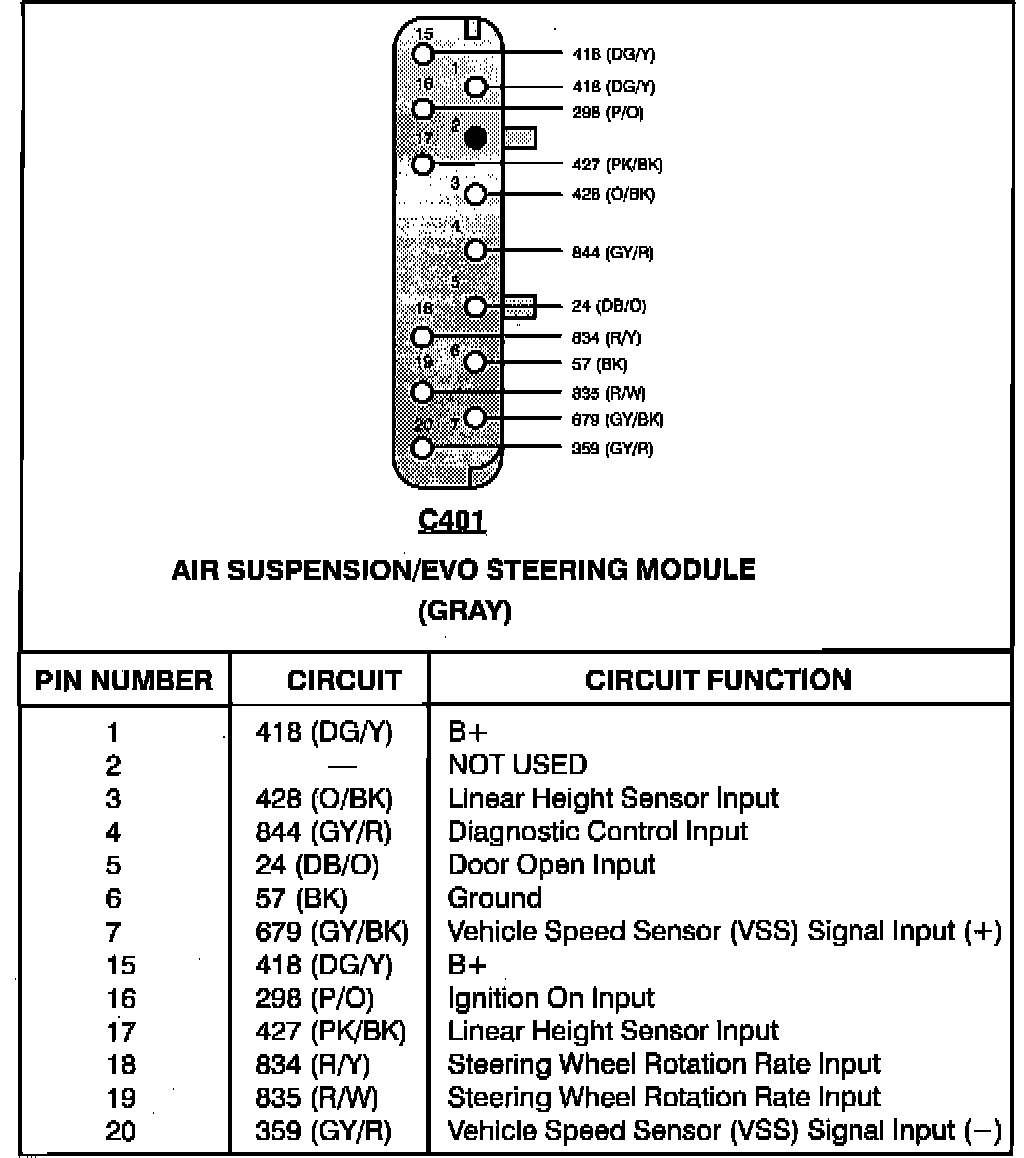

Air Suspension/EVO Steering Module:
