Home
>>
Mercury
>>
1994
>>
Grand Marquis V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
AC - EEC-IV No Start (Electronic Ignition-High Data Rate)
>>

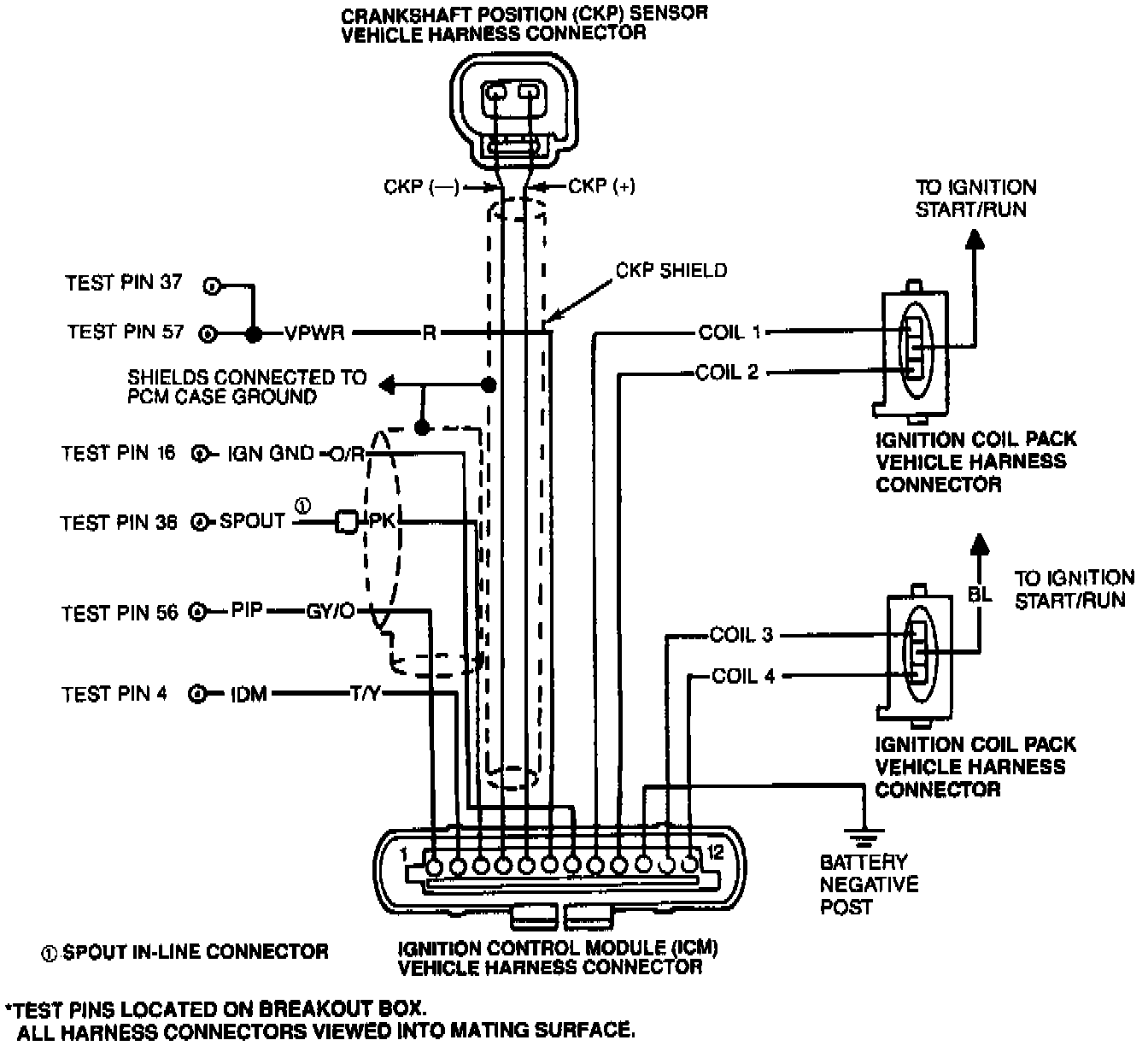

AC - Testing Schematic
AC - Testing Schematic
Ignition System Harness Connectors:
