Home >> Mercury >> 1994 >> Grand Marquis V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Integrated Control Relay Module >> Diagrams

Integrated Control Relay Module: Diagrams

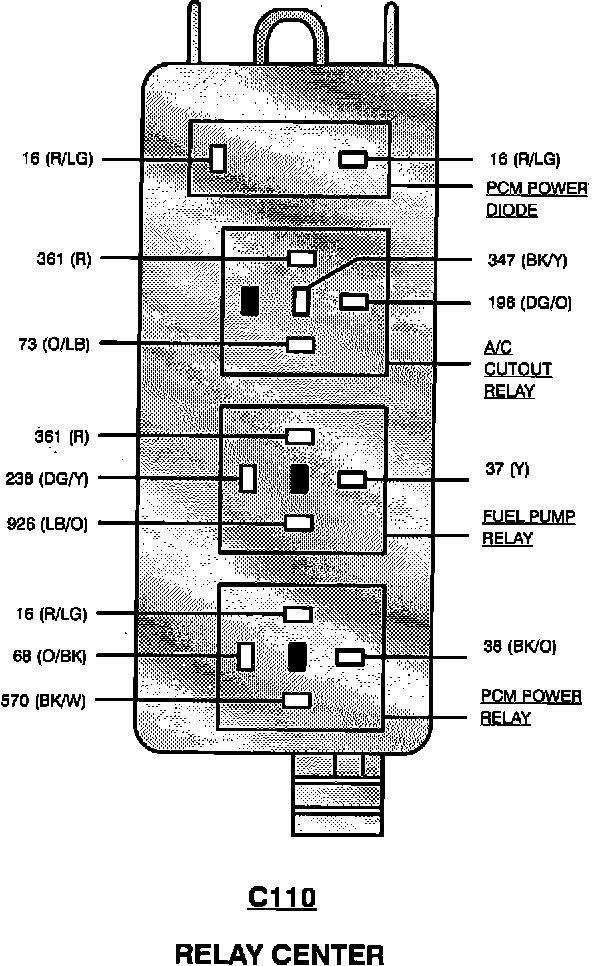

Relay Center:
