Home
>>
Mercury
>>
1994
>>
Grand Marquis V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

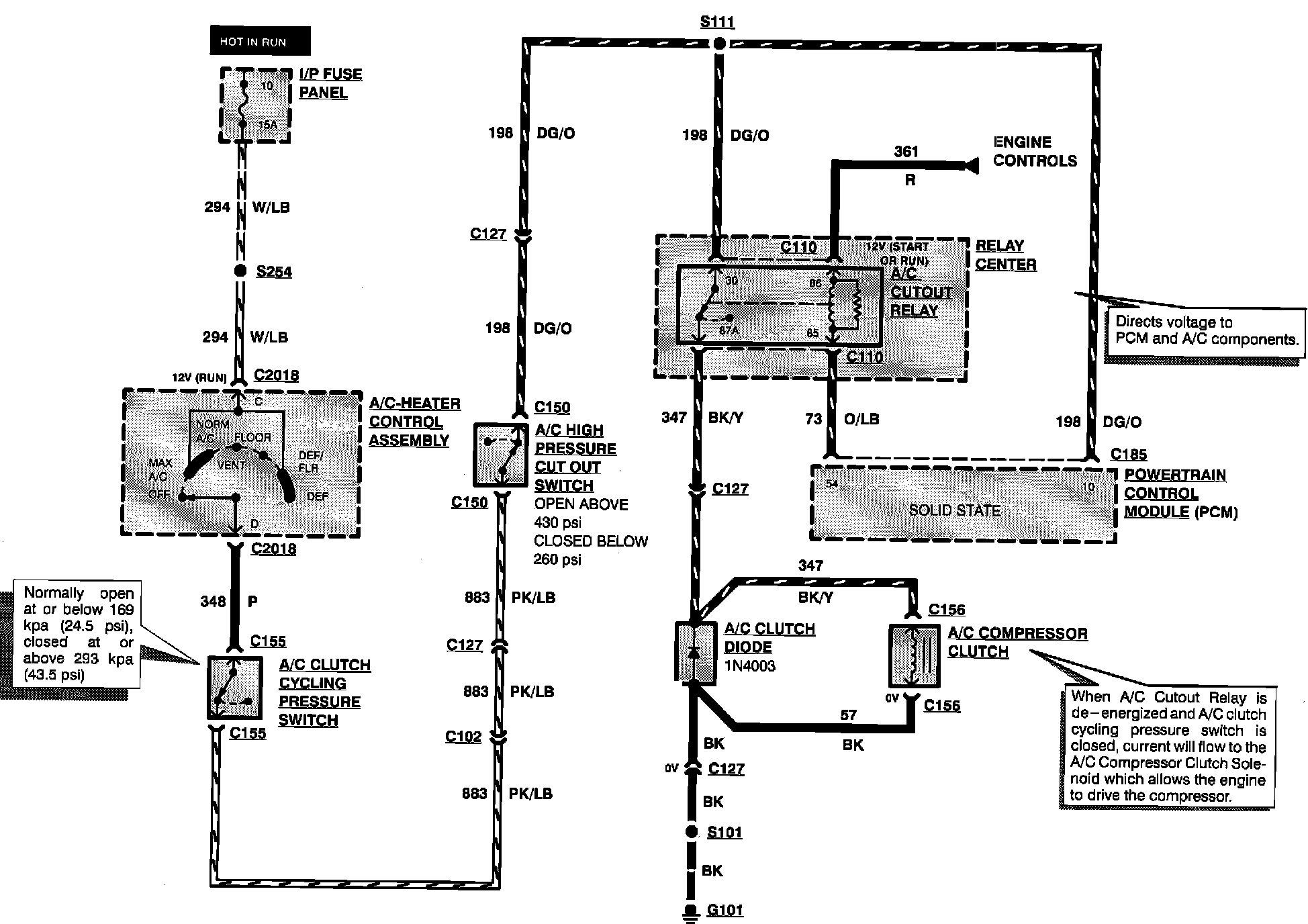

Heating and Air Conditioning
>>
System Diagram
>>
Electronic Climate Control
Electronic Climate Control

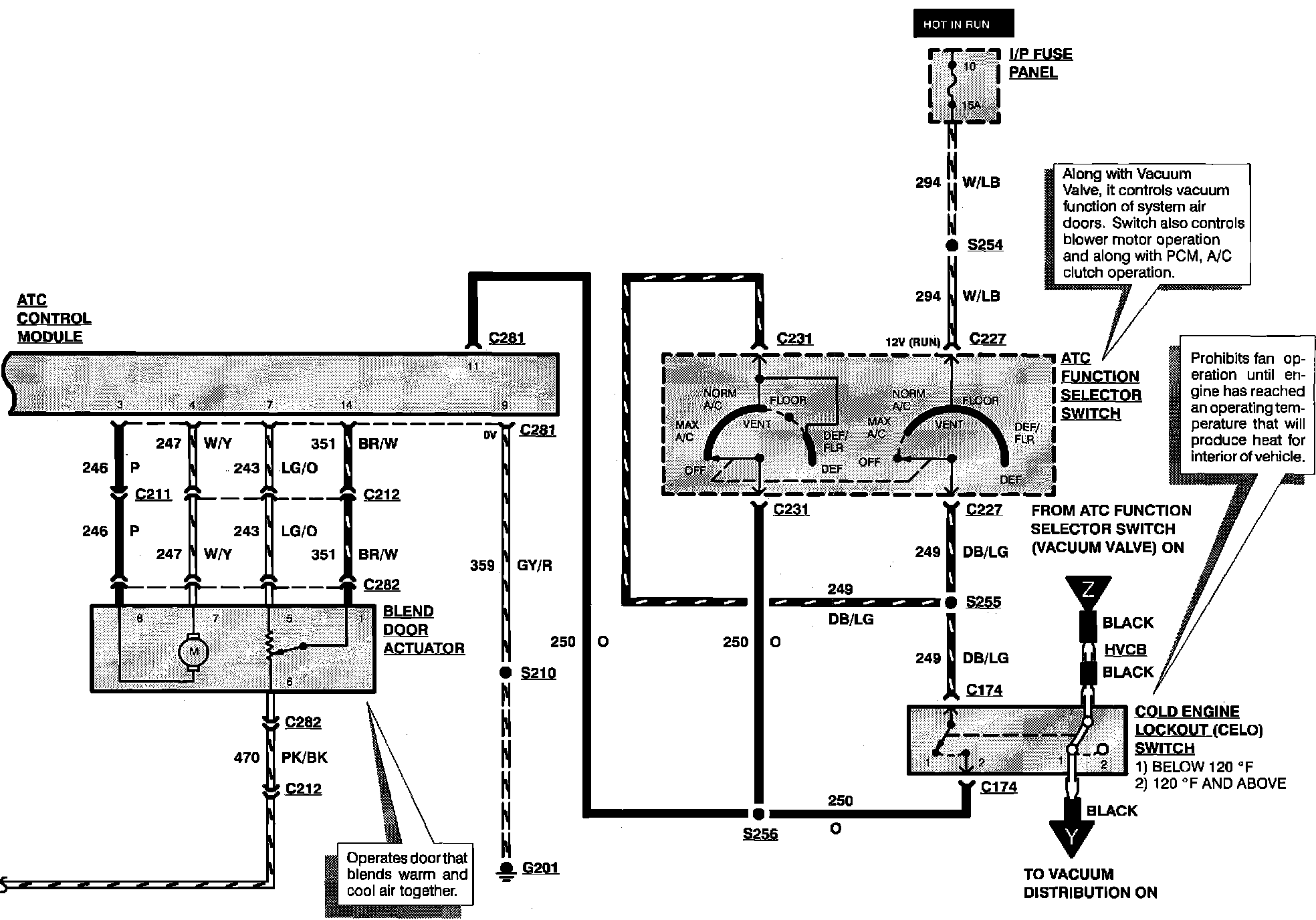

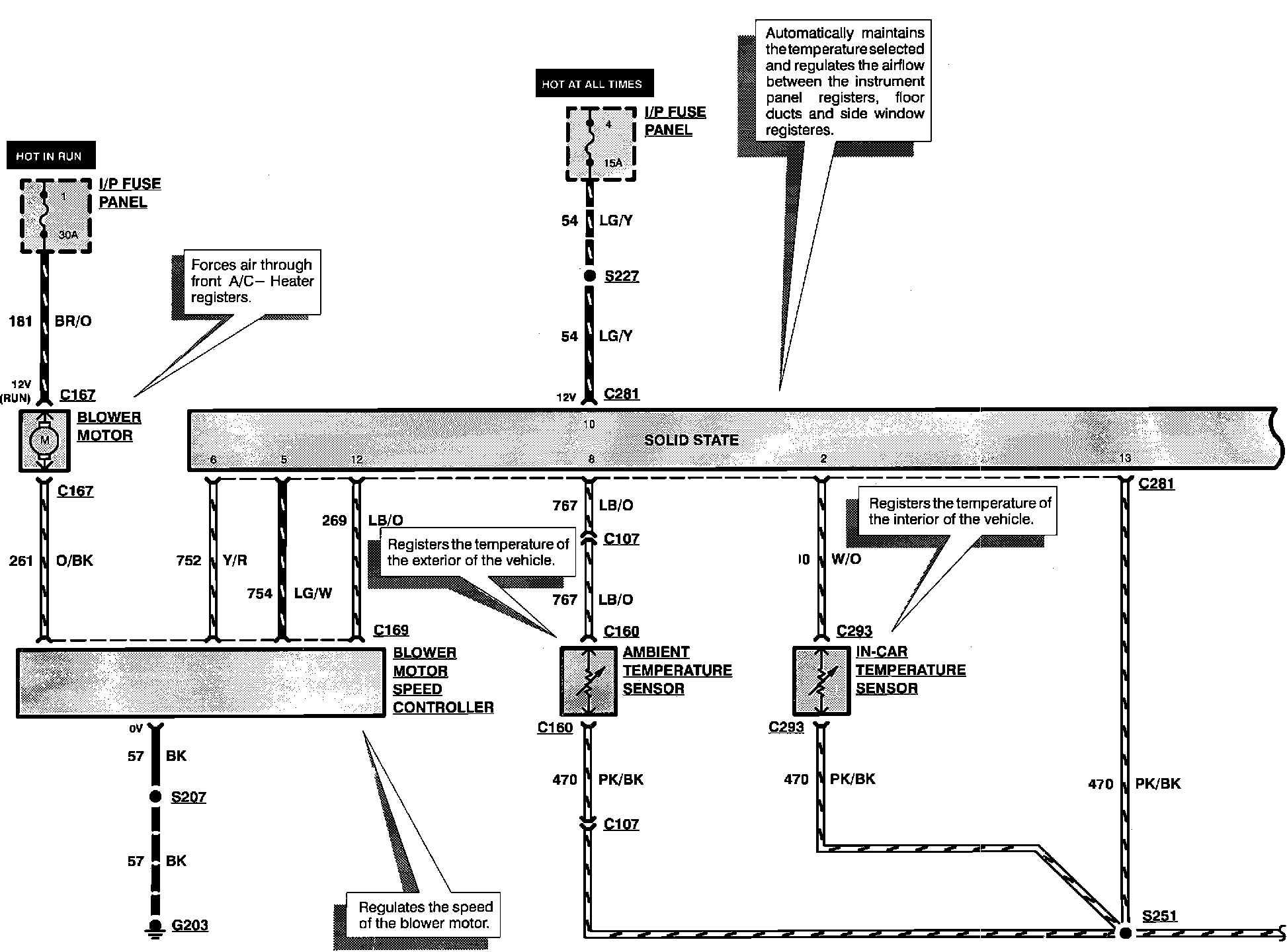

Automatic Temperature Control (ATC):
Automatic Temperature Control (ATC):
Automatic Temperature Control (ATC):
