System Diagram

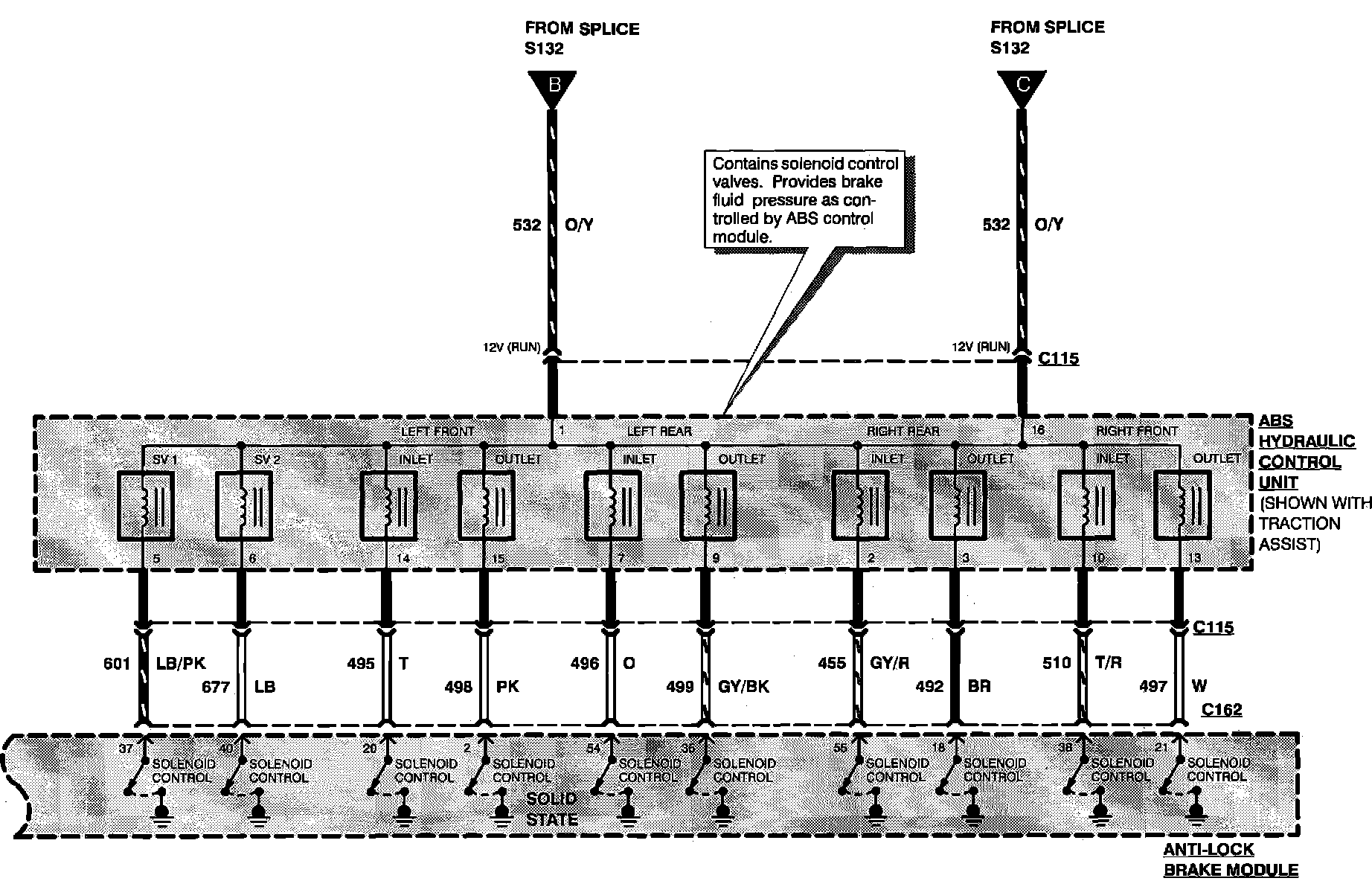

Anti-Lock Brakes (With Traction Assist):

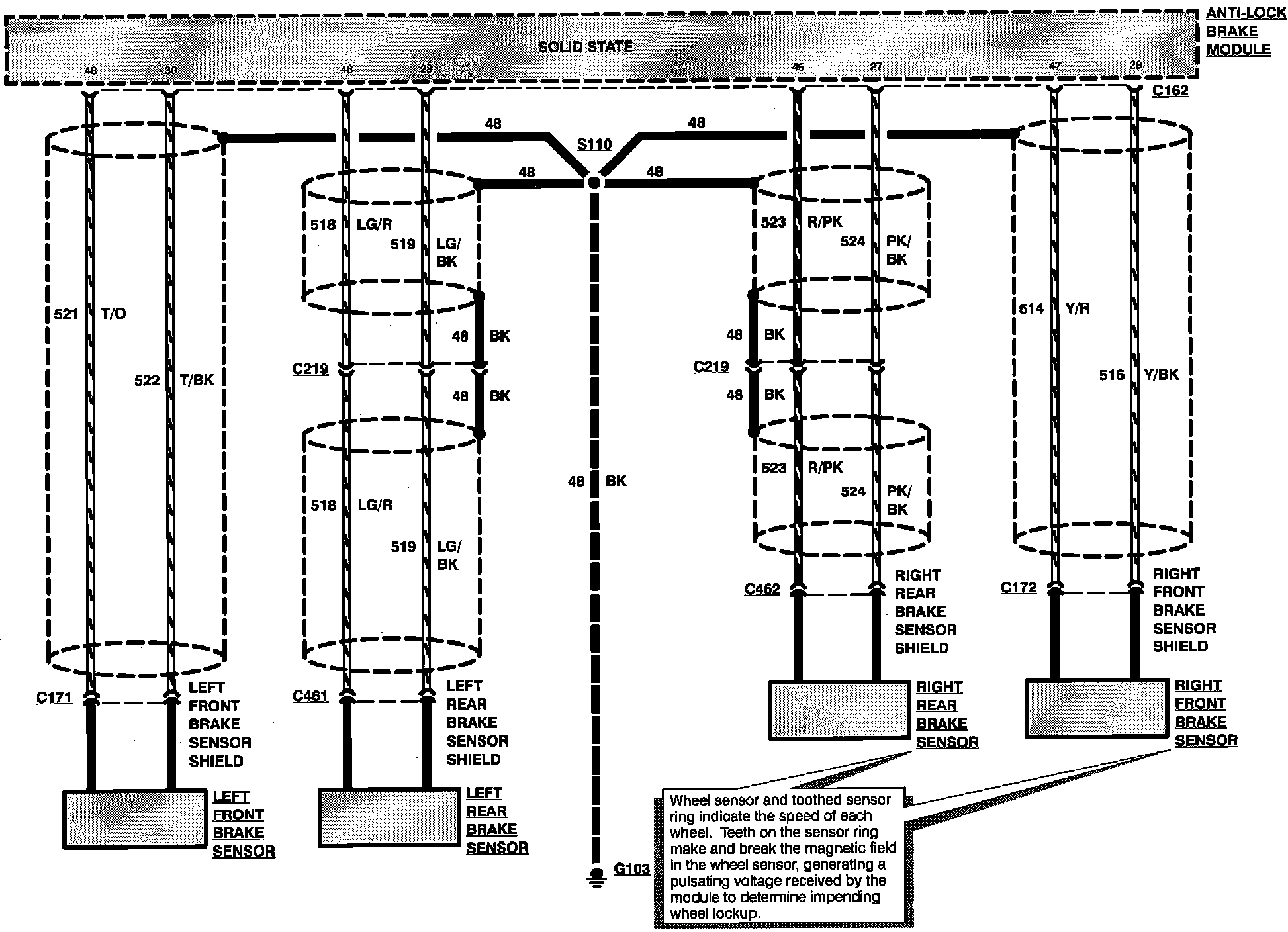

Anti-Lock Brakes (With Traction Assist):

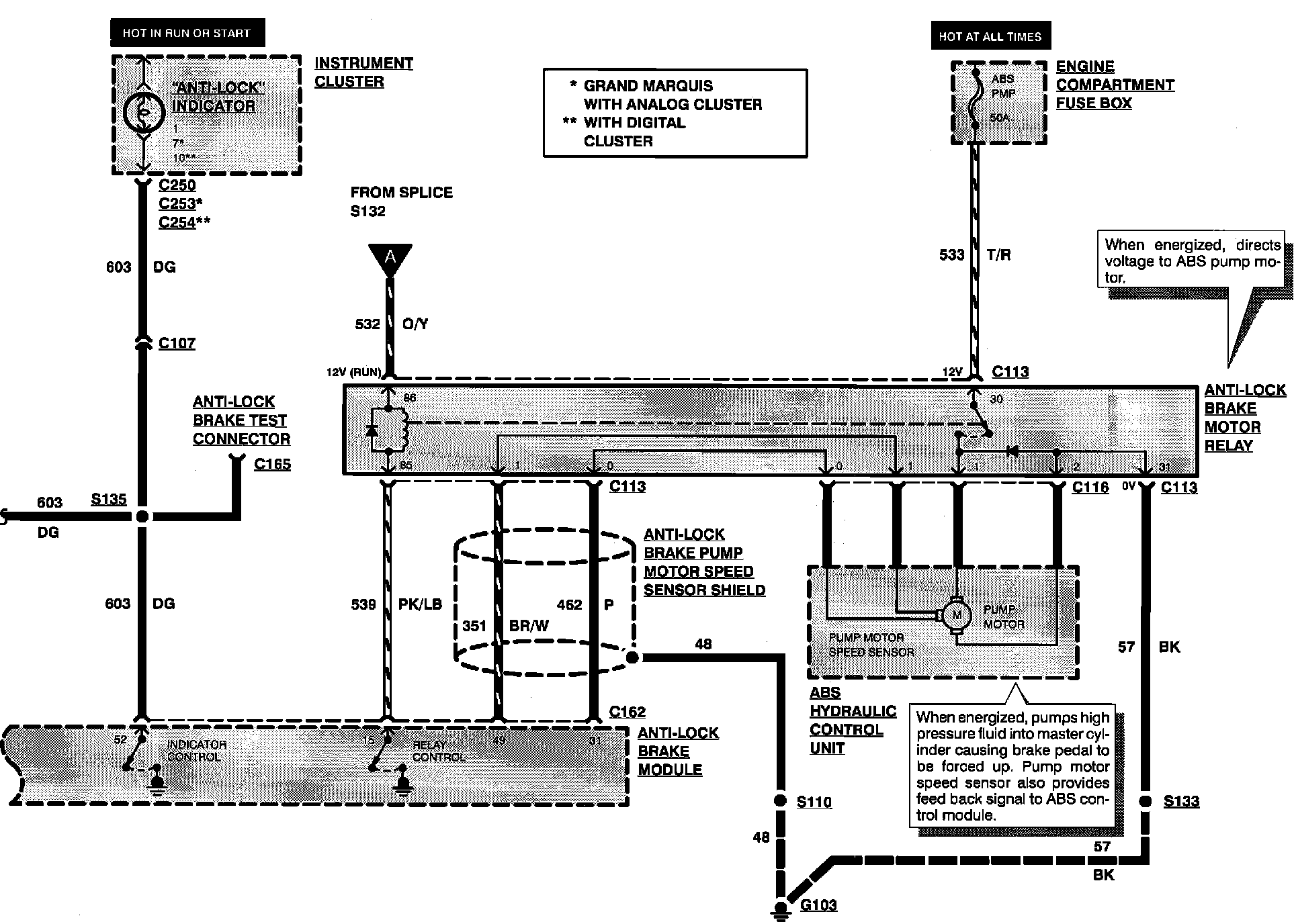

Anti-Lock Brakes (With Traction Assist):

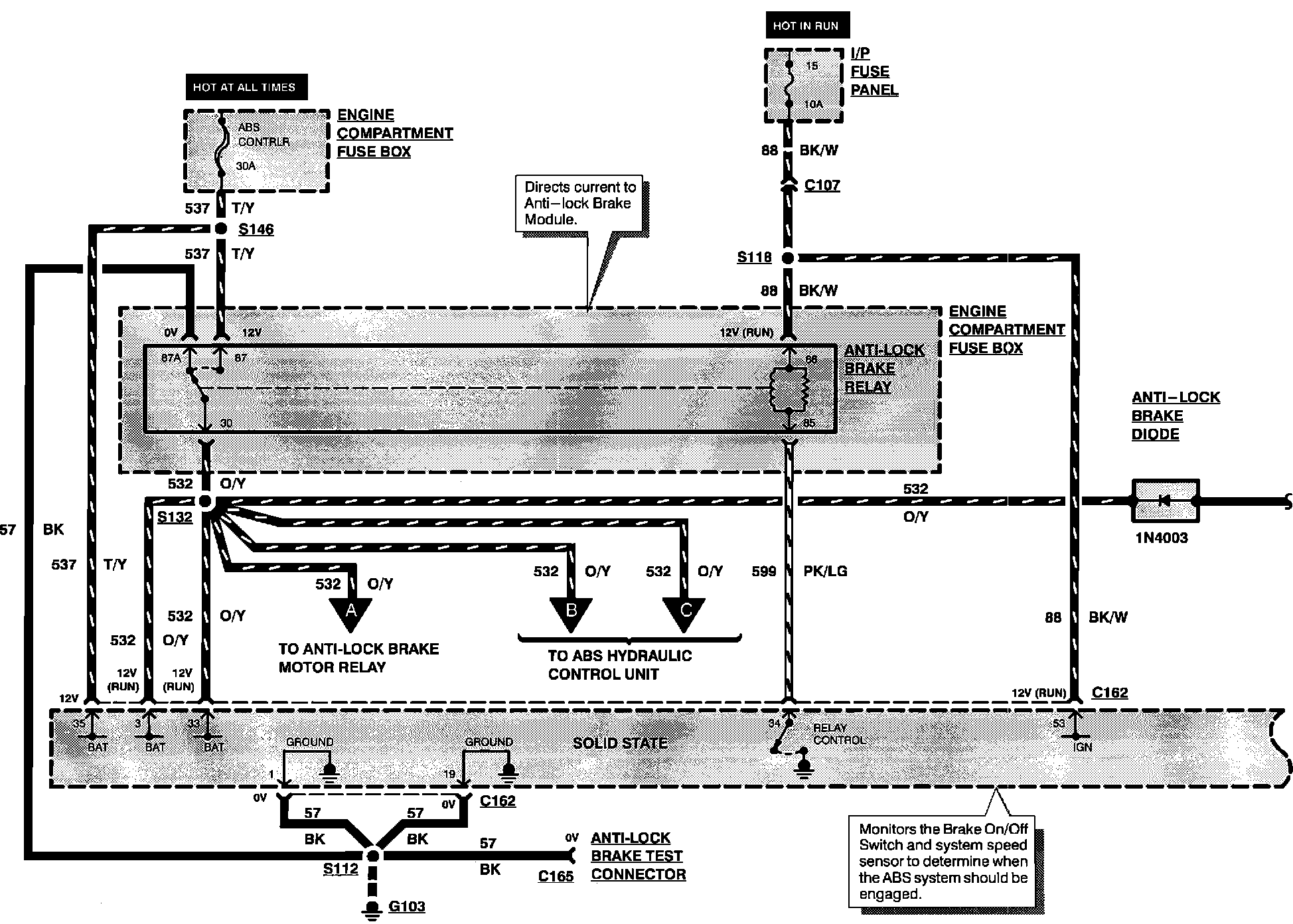

Anti-Lock Brakes (With Traction Assist):

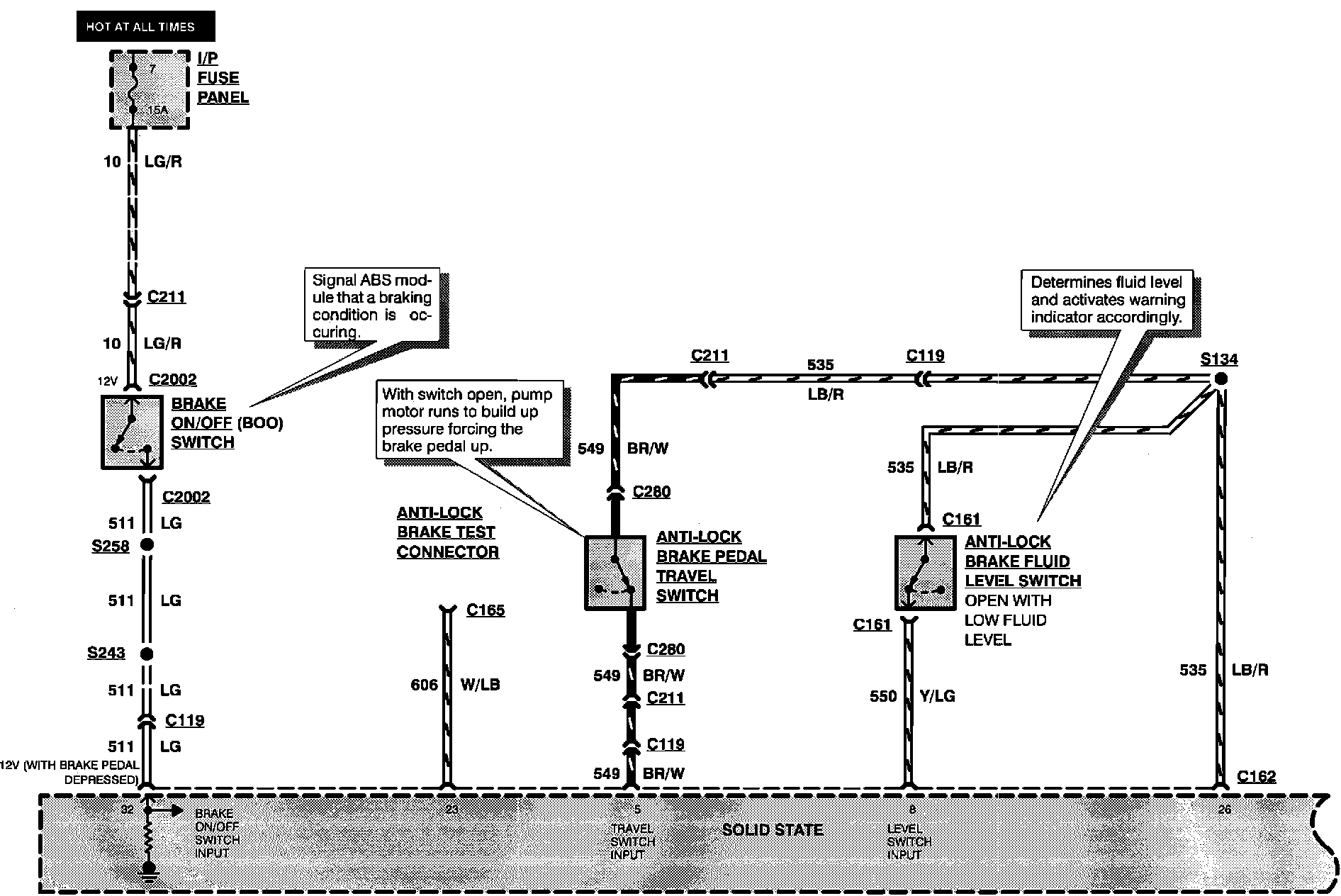

Anti-Lock Brakes (With Traction Assist):
