Grand Marquis V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
Electronic Climate Control Module
Electronic Climate Control Module

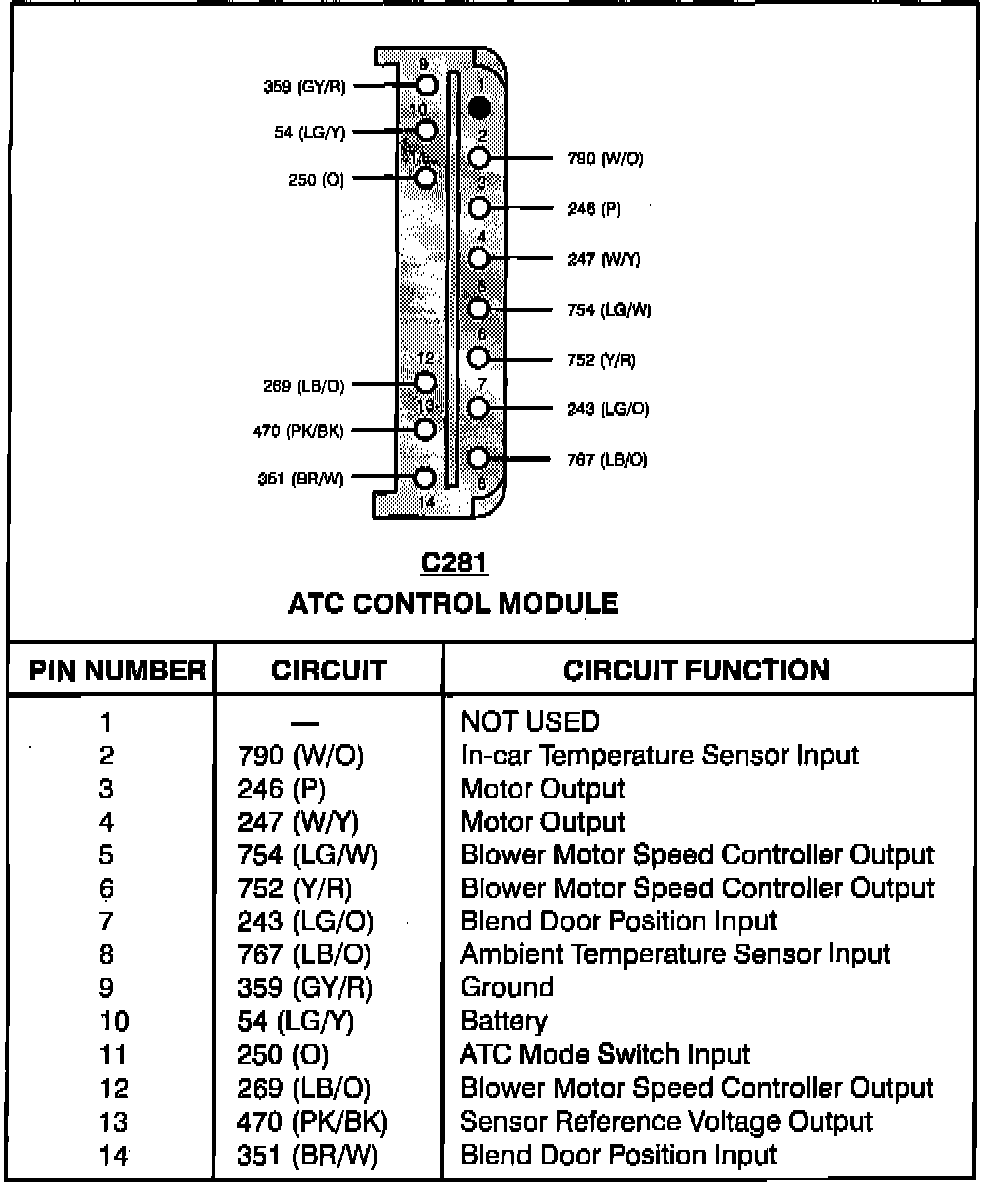

Automatic Temperature Control (ATC) Module:
